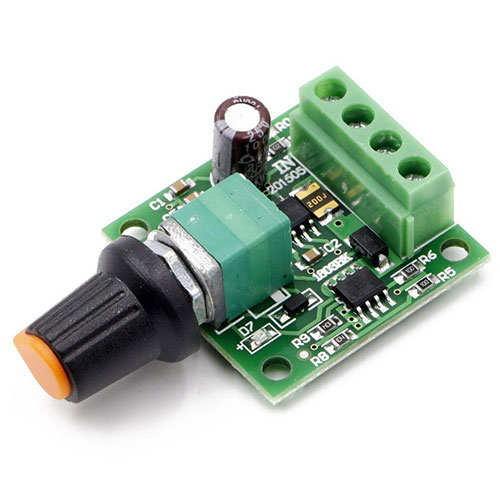

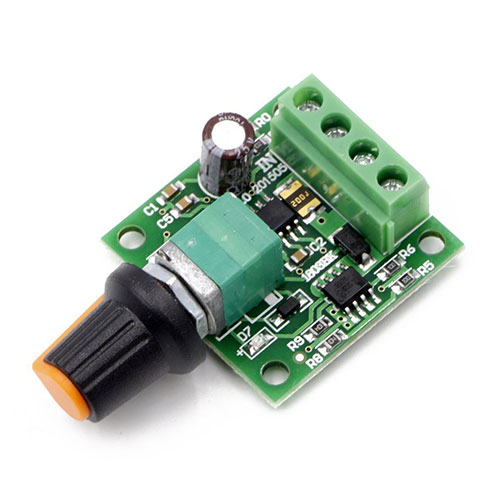

Low Voltage DC 1.8V 3V 5V 6V 12V 2A Motor Speed Controller PWM

product description

The DC motor speed controller allows the DC motor to be controlled using a pulse width modulated (PWM) DC voltage and the duty cycle can be fully adjusted from 0% to 100%.

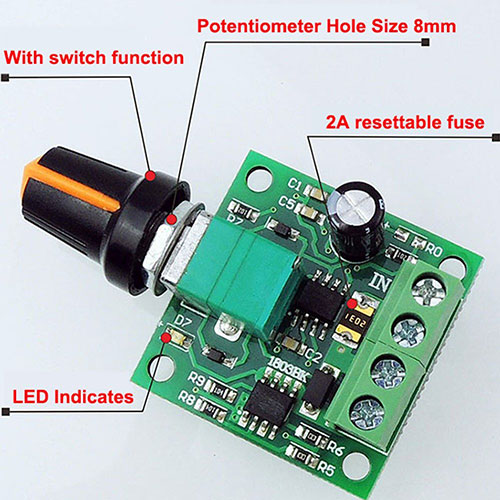

The motor speed controller comes with a self-healing fuse 2A and a Power-On LED. It can easily provide 2A continuous current to your DC motor or other DC loads.

The main technical parameters:
Input supply voltage: 1.8V-15VDC
Maximum output power: 30W
Maximum continuous output current: 2A
Adjustable duty cycle: 0% -100%;

Specifications:

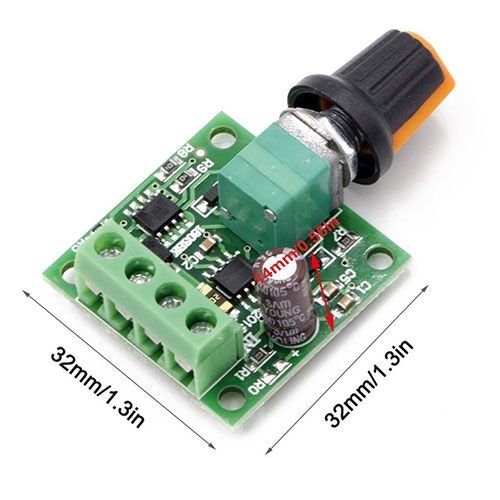

Project Size: 32 * 32 * 15mm;
Package: 1 motor speed controller;

Instructions:

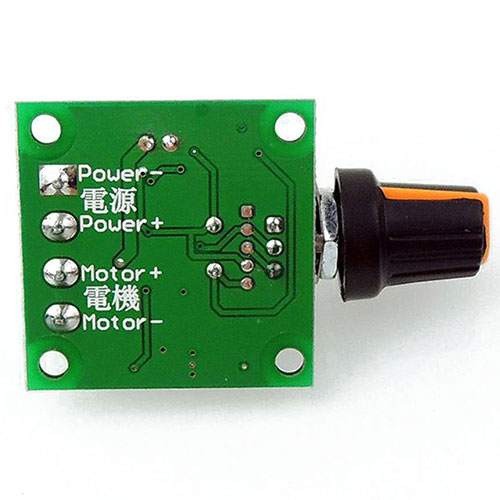

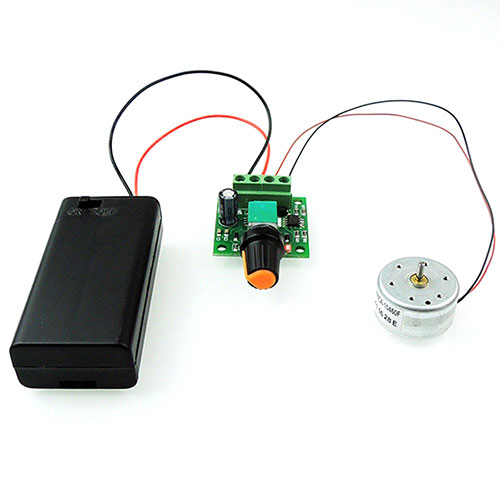

1. Connect the DC motor (or DC load) to the motor terminals according to the wiring diagram.
2. Connect a 1.8V-15V DC voltage to the circuit to ensure that the polarity of the connection is correct. Please note that the voltage applied to the motor is the supply voltage applied to the circuit. To protect the circuit from any possible short circuits, it is recommended to add a properly rated fuse to the positive power supply line.
3. The speed of the motor can now be controlled via a potentiometer. Important: It is recommended to use an appropriately rated fuse rated slightly above the maximum expected current to ensure safe operation. Controller using self-recovery fuse 2A is safe. If the power voltage is connected in the wrong polarity, it will be damaged. Please check all connections carefully before turning on the power and always turn off the power before changing the wiring

Product weight 0.32 ounces
Product size 3.5 x 2.1 x 0.7 inches
