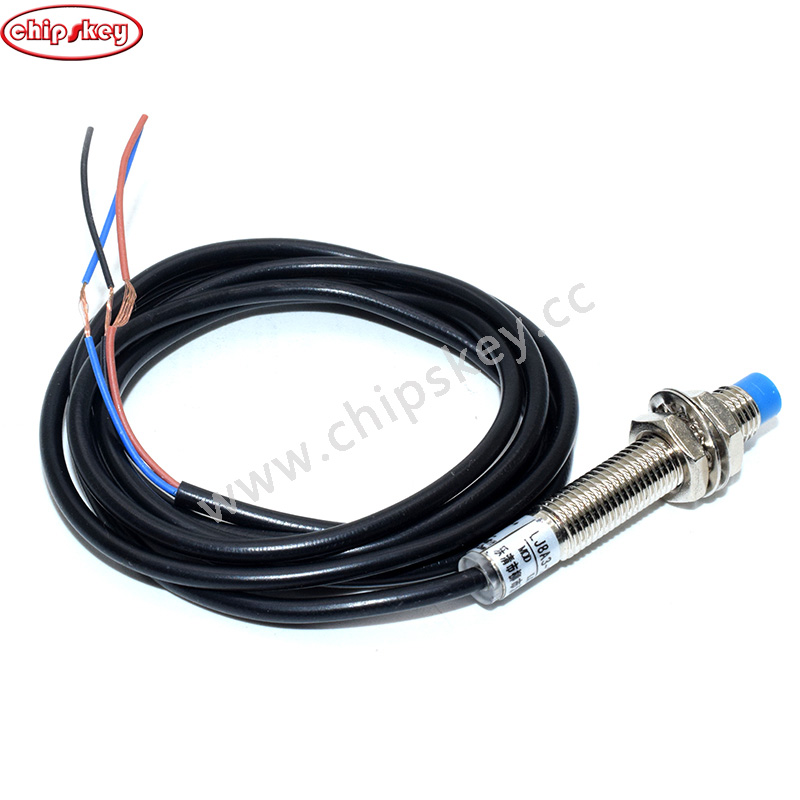

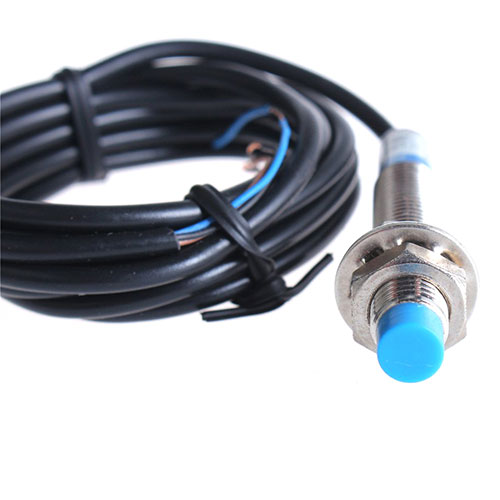

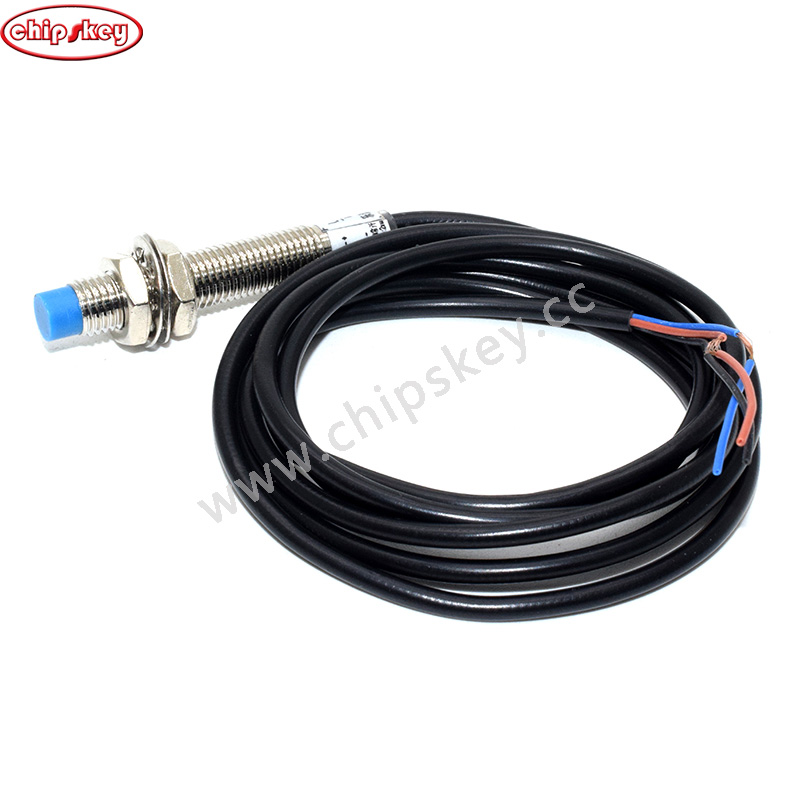

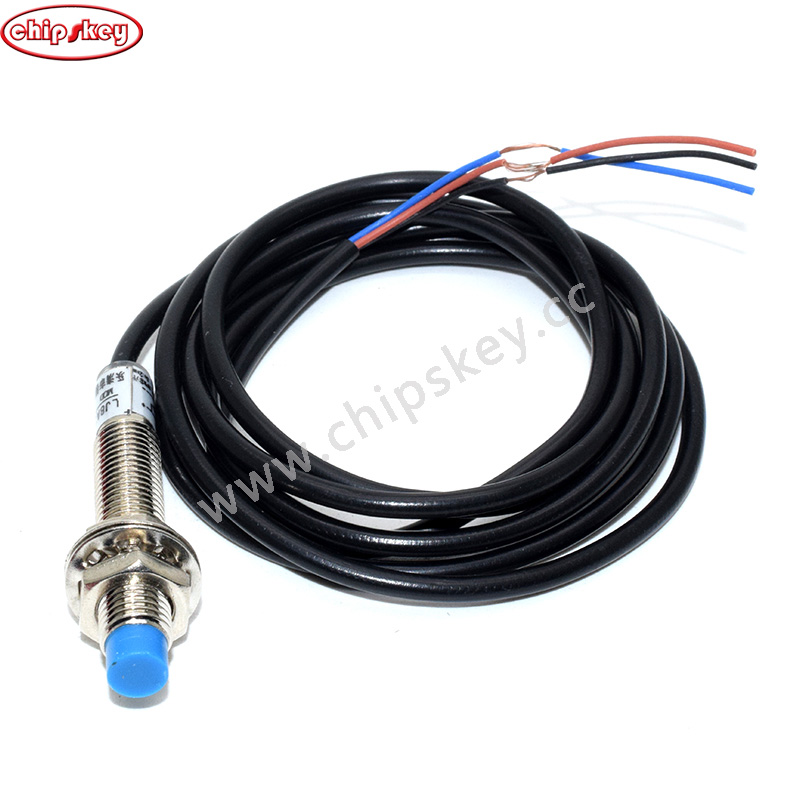

LJ8A3-2-Z/BX NPN 8mm Inductive Sensor Proximity Switch DC 6-36V

LJ8A3-2-Z / BX NPN 8mm inductive sensor proximity switch DC 6-36V

Product Features
Principle: Inductive sensor; Linear: 2-wire (brown, blue)
Switch Appearance Type: Cylindrical, Metal Case; Output Type: NPN, NO (Normally Open); Sensor Distance: 8mm Sensor; Power Supply Voltage: DC 6-36V
Output current (max.): 300 mA; Test object: Iron; Thread diameter: 18mm / 0.7 "
Overall dimensions: 68 x 30mm / 2.7 "x 1.2" (L * Max.D); Cable length: 1.5m / 4.9ft; External material: plastic, metal
Color: silver, black, blue; Net weight: 145g;
Reverse power protection, short circuit protection, non-contact detection device. When the proximity switch close to a target object, it will send a control signal.
