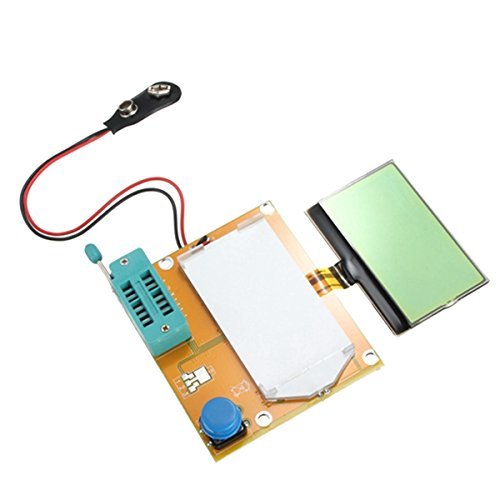

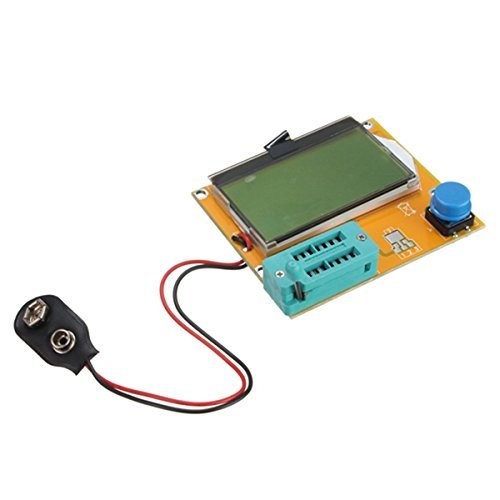

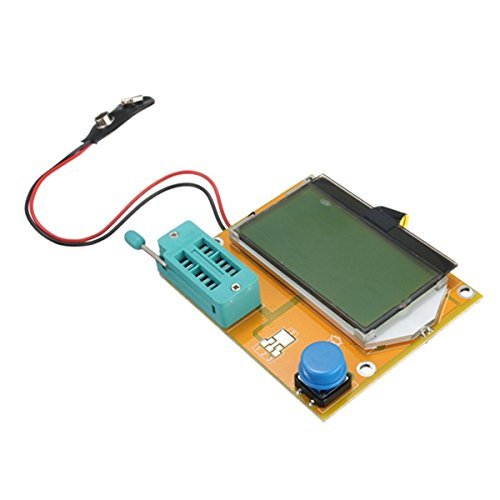

LCR-T4 12864LCD ESR SCR Meter Transistor Tester

product description LCR-T4 12864LCD ESR SCR Thyristor Tester Features: 9V stacked battery-powered, the use of two lithium-ion battery 8.4V battery pack, power supply for a long time. Measure bipolar transistor current amplification factor and base-emitter threshold voltage. Automatically test component pins and display on 128 * 64 LCD backlight. Measure the gate and gate capacitance of the MOSFET threshold voltage. One-button operation, automatic shutdown, only 20nA shutdown current. Breakdown voltage is less than 4.5V, Zener diode can be identified. Capacitors above 2uF measure the ESR of the equivalent series resistance at the same time. Darlington transistors are identified by the base-emitter threshold voltage and the high-current amplification factor. You can measure the display of both resistance and resistance symbols simultaneously. Is shown on the right with a decimal value of 4. The amplification factor of the transistor, the MOSFET protection diode, and the base can be checked to determine the forward bias voltage of the emitter transistor. Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFETs, diodes (including dual diodes), thyristors, transistors, resistors and capacitors. Specifications: Material: PCB Power Mode: 6F22 Display: 128 * 64 LCD Backlight Test Speed: 2 seconds (1 minute for large capacitance) Shutdown Current: 20nA Display Value: 25pf-100mF Resolution 1pF Inductance: 0.01mH-20H Resistance: ≤2100Ω Supply voltage: 9V Cascadable / 2-cell Li-Ion battery pack 8.4V Battery pack Resistive Resolution: 0.1 Ohm Max. Measured Value: 50M Ohm Test Current: 6 mA Product Dimensions: 7.2 x 6.25 cm (L * width)
