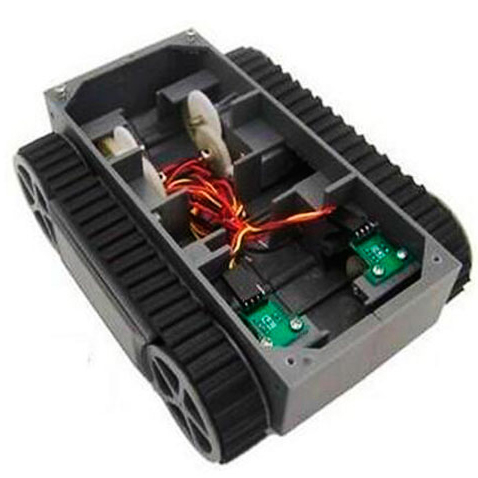

Large torque tracked vehicle Robot Car

1. Specifications:
????? Tank mechanical parameters:
Size: 180mm * 135mm * 58mm (L * W * H)
Working voltage: 7.2V
Operating current: 160-180 mA
Maximum speed: 30 cm / s (up to 42cm / s at 12V)
Climbing ability:> 30 °
Payload:> 7.5Kg
Note: The above data is for reference only; actual measured values and reference values may vary due to battery performance and site.
????? Speed sensor parameters:
Receiving tube working voltage: 4.5-17V
Launch tube pressure drop: Vf = 1.6V
Transmitter current: if <20mA
Signal output: A, B two; TTL level
Resolution accuracy: 0.01mm
Measurement frequency: 100KHz
