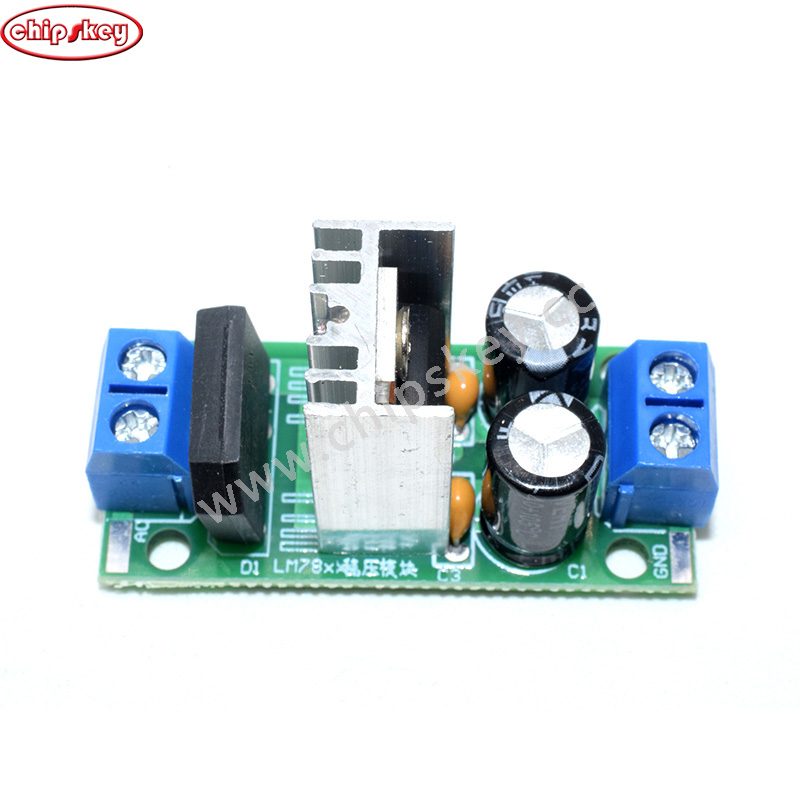

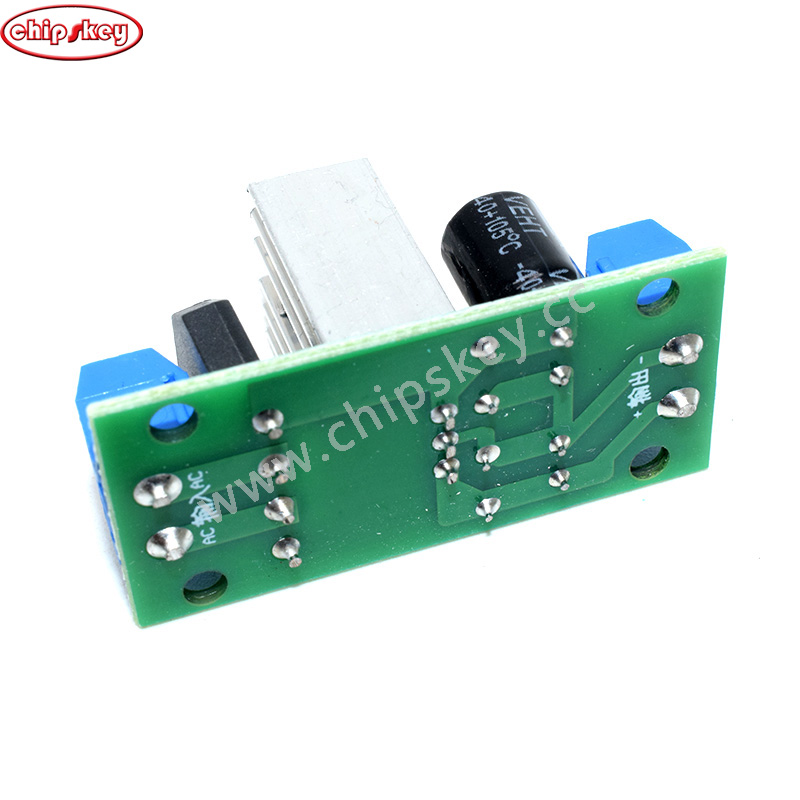

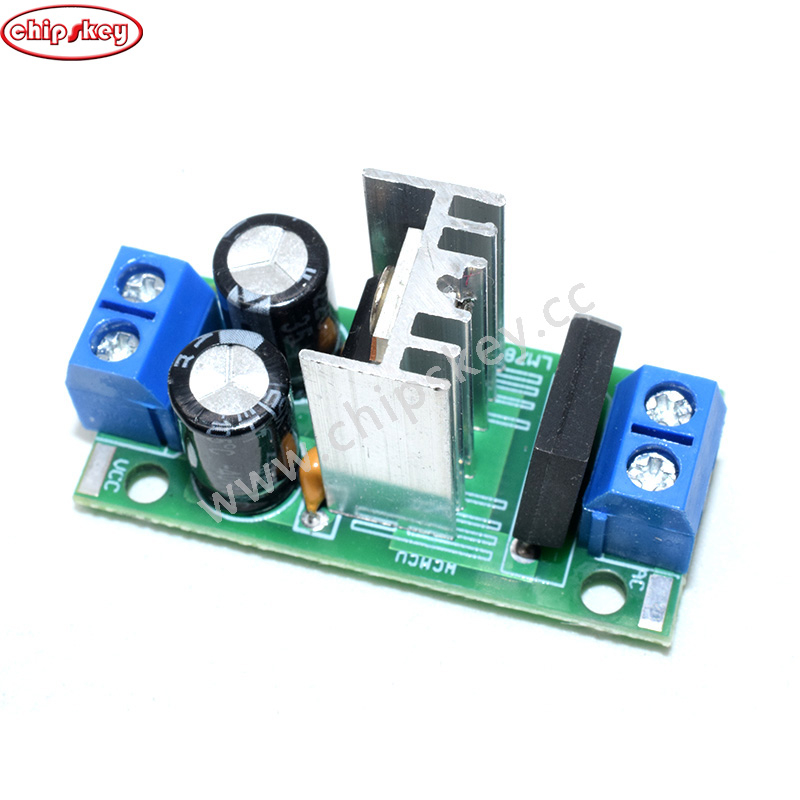

L7805 LM7805 Three Terminal Voltage Regulator Module

product description
?? New L7805 LM7805 Three-Terminal Regulator Power Module 5V 1.5A Rectifier Filter Power Converter
Functional Description: Advantage (Advantage)
(1) 3A rectifier bridge (input AC, DC)
(2) 2 * 35V 220UF high-voltage capacitor (buffer filter)
3) high quality heat sink (with heat sink to enhance heat dissipation)
(4) 1.5A high current chip
The circuit board using full-wave bridge rectifier can be input AC, DC, input is divided into positive and negative. The filter adopts two 220UF 35V electrolytic capacitor to make the buffer filter, the output current can be stable and stable. L7805 with heatsink and 3A rectifier bridge, to meet the continuous output of large current.
Application areas:
DIY power supply, monitoring power supply, experimental power supply, camera power supply, car power supply, communication equipment power supply.
Other parameters:
Module size: 43mm * 20mm
Input voltage (voltage):
DC: 8 ~ 15V
AC: 6 ~ 12V
Output characteristics:
Load regulation: 100mV
Quiescent current: 8mA
Output noise voltage: 42uV
Input and output pressure: 2V
Output impedance: 15mΩ
Peak current: 1.5A
