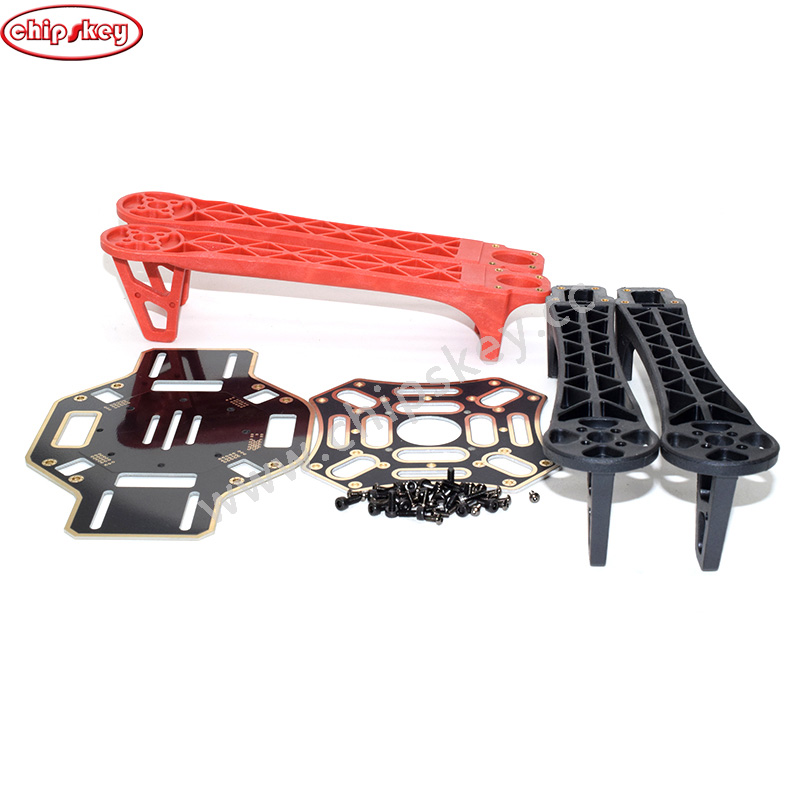

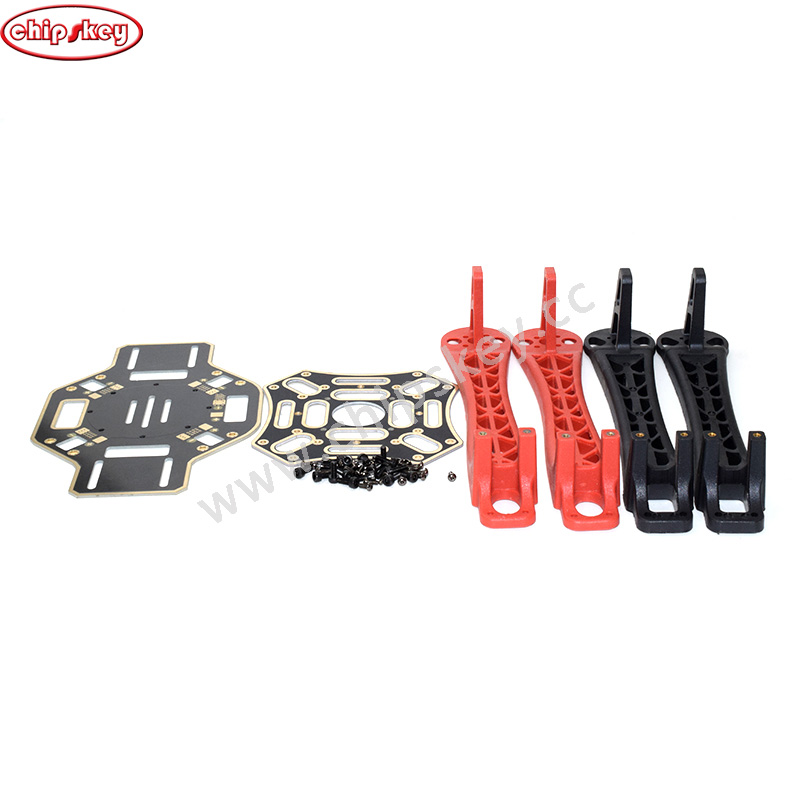

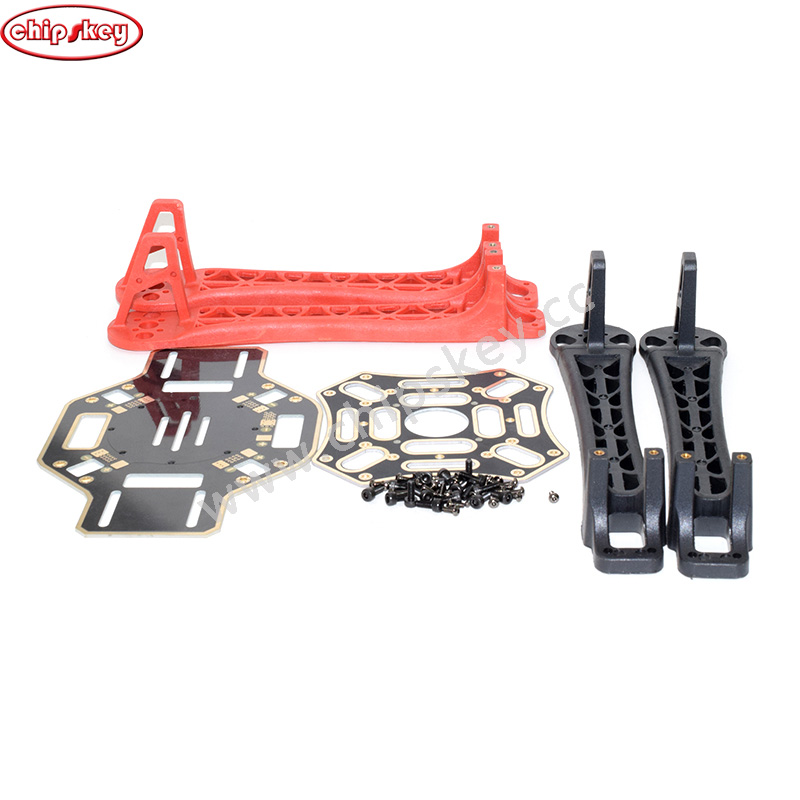

L450 4-Axis Quadcopter Frame Mini H Quad

Rack weight: about 390 grams (without tripod)

Tripod weight: about 70 grams (4 tripods)



locust! 500 wheelbase, FPV first choice!

Can use 1047 1147 1238 paddle

The center board is CNC processed with 1.4mm high-grade black fiberglass board, which is beautiful and strong!

Features:



1. Center lower board: A 45*45mm flight control board (FF, kk, Yutu, Pirate, MWC, etc.), expansion board, ESC parallel board or 4 in 1 ESC can be installed at two angles. At the same time, the installation holes for the ultrasonic small plate are reserved. Specially designed for NAZA flight controller, the movable installation position and the long hole through the magic cable tie are convenient to protect or reinforce the NAZA flight controller. The tail of the lower plate is used to fix the battery of about 2200 size, which can just be inserted in the middle of the center upper and lower plates.



  2. Center upper plate: A cross seat mounting hole for NAZA flight control GPS is reserved, and a battery with a size of about 5000MAH can be placed at the center and rear. (Move the battery back and forth to balance the weight of the gimbal). The tail can be equipped with components such as image transmission or remote control reception.
