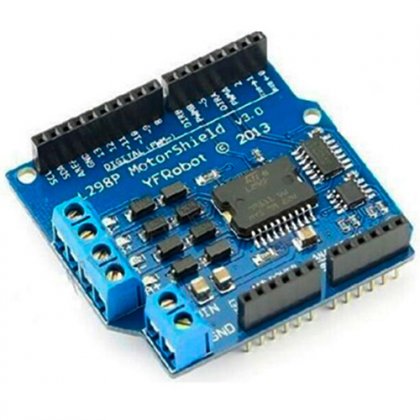

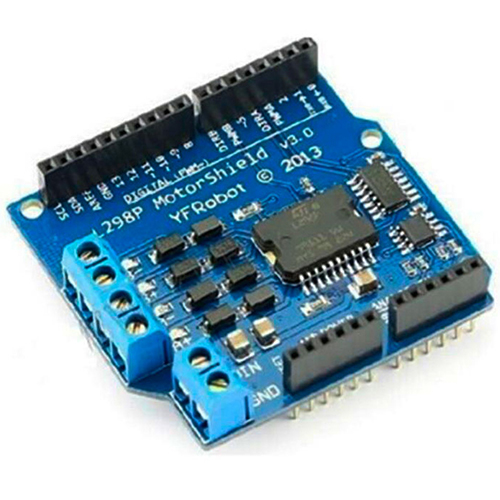

L298P Motor Driver Shield

Product description
Power supply voltage: 3-35V
Operating temperature: -25-130 degrees Celsius
Power dissipation: 25W
Condition: new
Funduino L298P 2A Dual DC Motor Driver Shiled
description:
The Motor Guard (2A) uses the L298P chip to drive two 7-12V DC motors up to 2A and can be mounted directly onto the standard Funduino Duemilanove and Funduino Mega. Speed ??control is achieved via conventional PWM and is available on Funduino PWM output pins 5 and 6. The motor control enable / disable function is given by the Funduino digital pins 4 and 7. The motor shield can be powered directly by the Funduino or from an external power source. It is highly recommended to use external power to power the motor shield.
Supports PWM and PLL (Phase Locked Loop) control modes. PWM mode uses E1 and E2 to generate the PWM signal. PLL mode uses M1 and M2 to generate the phase control signal.

specification:
Drive two 7-12V DC motors up to 2A
Direct mounting to the standard Funduino Duemilanove and Funduino Mega
Power directly from Funduino or from external power supply
Supports PWM and PLL (Phase Locked Loop) control modes

More details: 1. Logic part of the input voltage VD: 5 V 2. Drive part of the input voltage VS: VIN input 6.5 ~ 12 V, PWRIN input 4.8 ~ 24 V
3. Logic part of the working current Iss: greater than 36 mA
4. Drive part of the current Io: greater than 2 A.
5. Maximum power consumption: 25 W (T = 75)
6. Control signal input level: High level: 2.3 V Voltage Vin is greater than 5 V Low level: 0.3 V Voltage Vin is greater than 1.5 V
7 working temperature: -25 ~ + 130 ℃
8. Drive mode: Double H-bridge road power transmission
