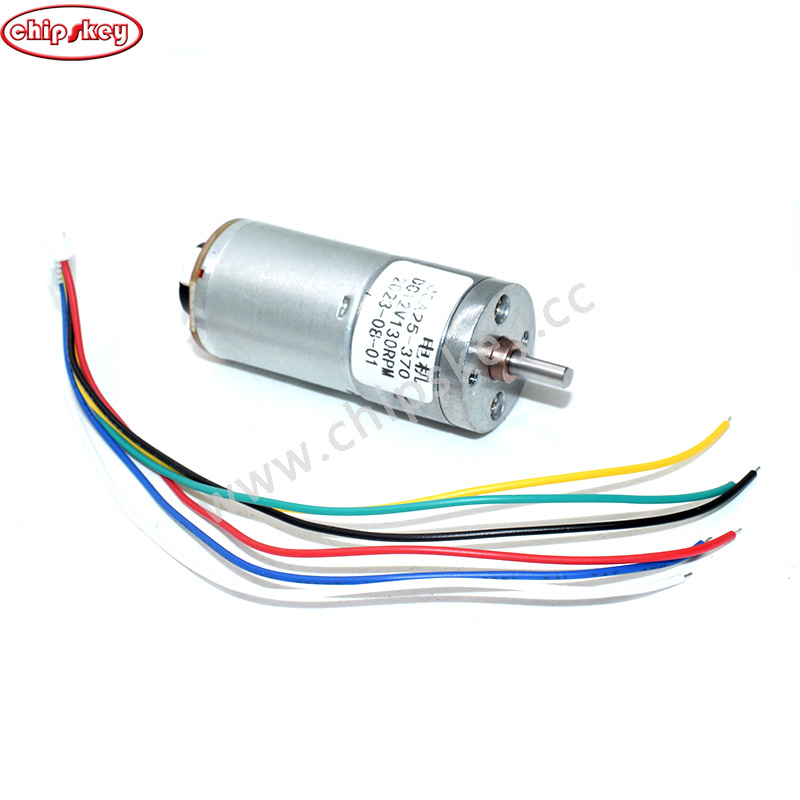

JGA25-371 12V 130RPM Motor With Encoder

Wiring method:

Red → motor power + (AC can control the positive and negative motor)

Black → Coded Power - Negative (positive and negative level can not be connected to the wrong 3.3-5V)

Yellow → signal feedback (motor rotation signal 11)

Green → signal feedback (motor turn signal at 11 oclock)

Blue → Coded power + positive (positive and negative levels can not be connected wrong 3.3-5V)


White → motor power - (exchange can control motor positive and negative)

[Diameter] 25mm Length varies according to the length of the parameter

[Shaft] 12mm D 8mm long

[Shaft Diameter] Diameter 4mm D Shaft
