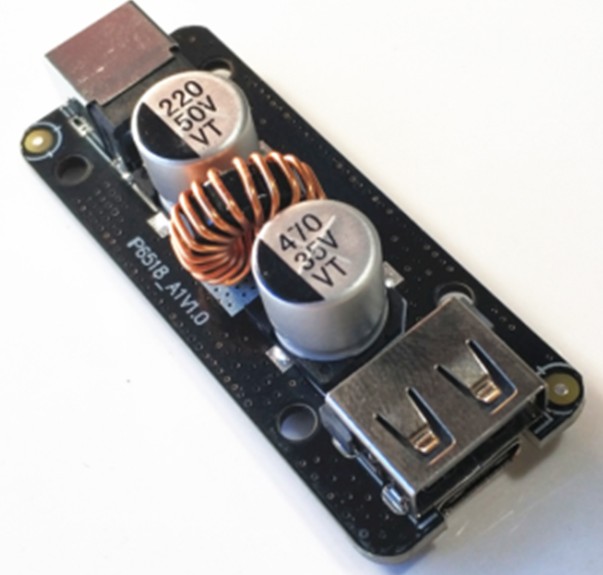

IP6518 full protocol fast charging board module QC3.0
Features:
Input voltage range: 10.5V-32V
Output voltage: default 5V, automatically adjust between 3-20V after triggering fast charge.
Output power: maximum 45W .
Wired function of output voltage
Conversion efficiency: 97%
Support a variety of fast filling protocols
Overvoltage and undervoltage protection
Input over current protection
Output overcurrent and short circuit protection
Over temperature protection for the whole machine
Support: BC1.2, QC2.0, QC3.0, MTK PE+1.1, MTK PE+2.0, FCP, AFC, SFCP
Product Size: 50*20*17mm
Applications:
Solar panel to mobile phone charging
Car charging retrofit
Driving recorder power supply
Home power conversion
