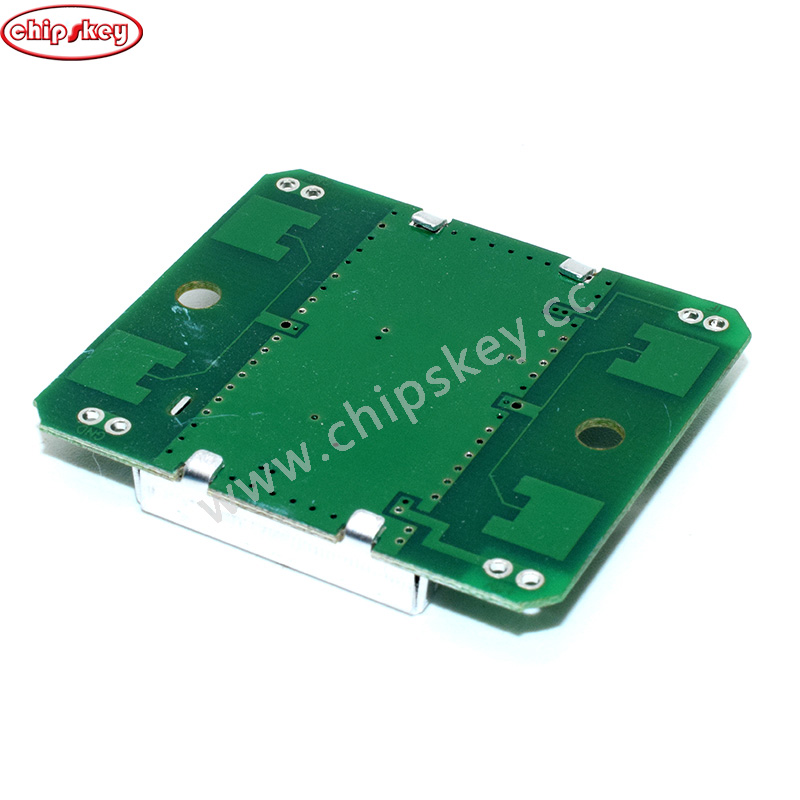

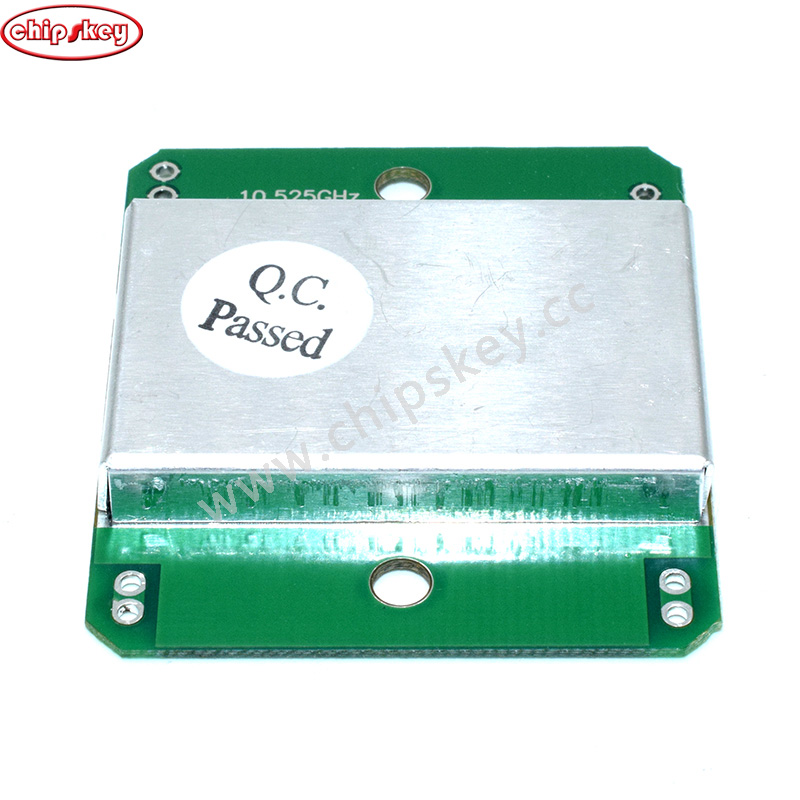

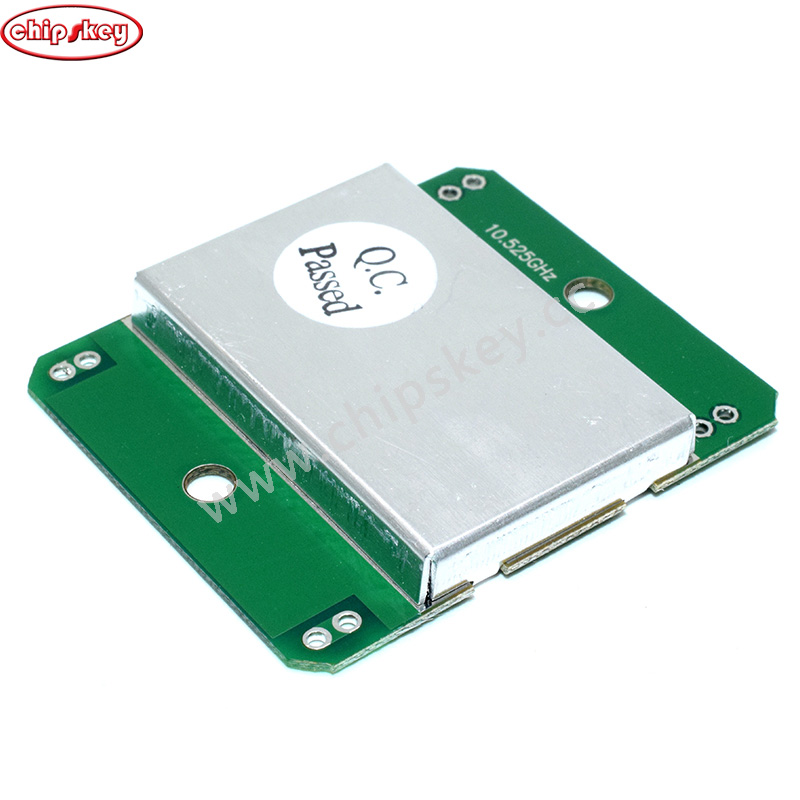

HB100 microwave Doppler, wireless radar detector probe sensor 10.525GHz

Launch: 1. Transmitting frequency: 10.525GHz; 2. Frequency setting accuracy: 3MHz; 3. Output power (minimum): 13dBm EIRP; 4. Operating voltage: 5V +/- 0.25V; 5. Operating Current (CW): Max. 60mA, 37mA typical; 6. Harmonic emission: <-10dBm; 7. Average current (5% DC): 2mA type; 8. Pulse Width (Min.): 5uSec; 9. Load cycle (Min.): 1%; Receive: 1. Sensitivity (10dB S/N ratio) 3Hz to 80Hz Bandwidth: -86dBm, 3Hz to 80Hz bandwidth of clutter, 10uV; 2. Antenna Gain: 8dBi; 3. Vertical 3dB beamwidth: 36 degrees; 4. Horizontal 3dB beamwidth: 72 degrees; Operating temperature: -10C~+55C; Storage temperature: -30C~+70C
