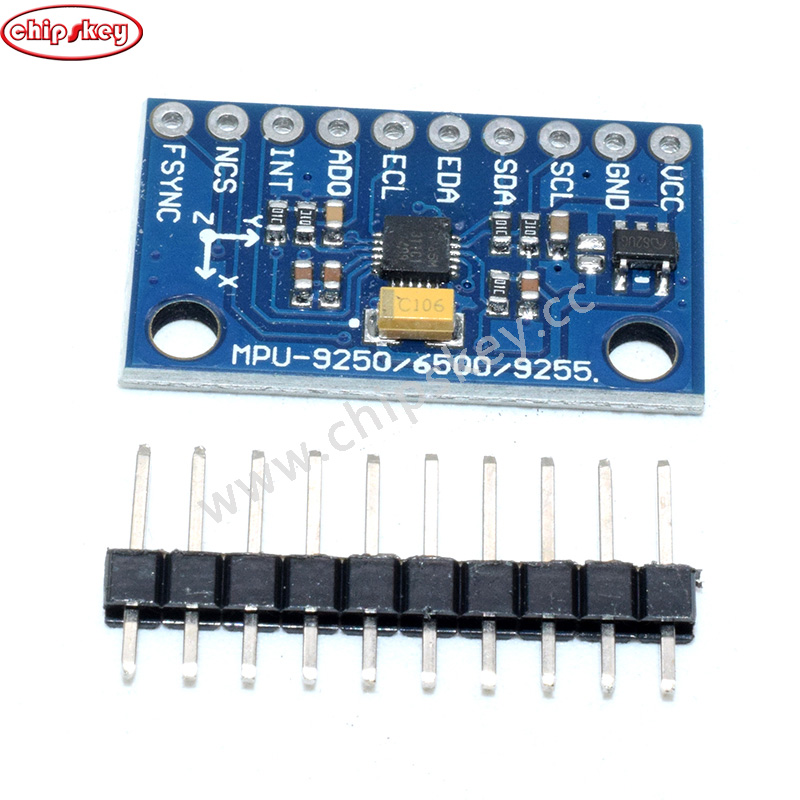

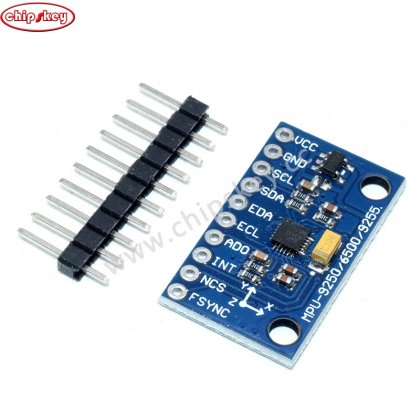

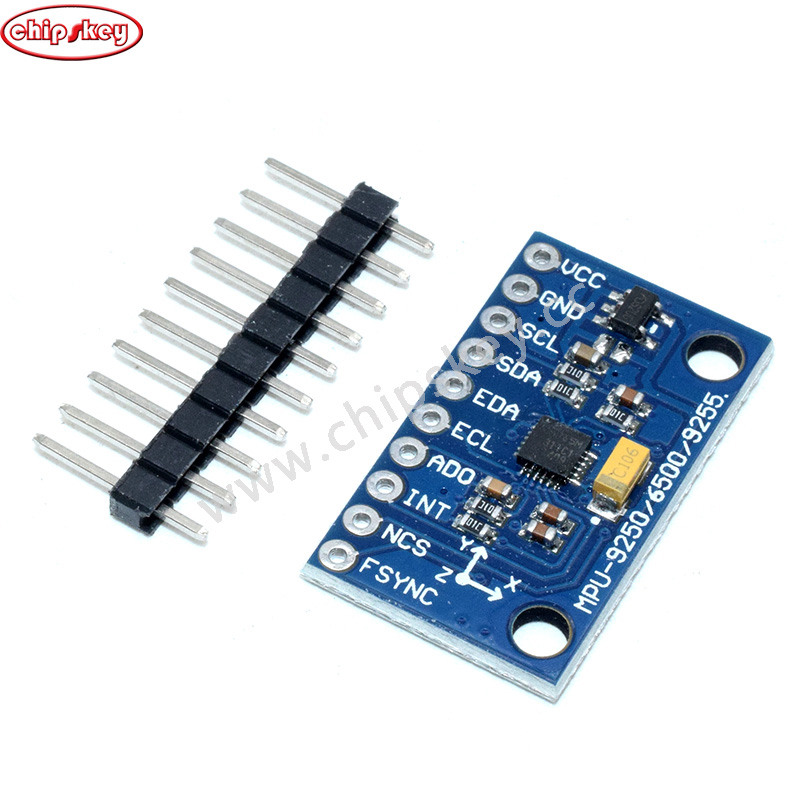

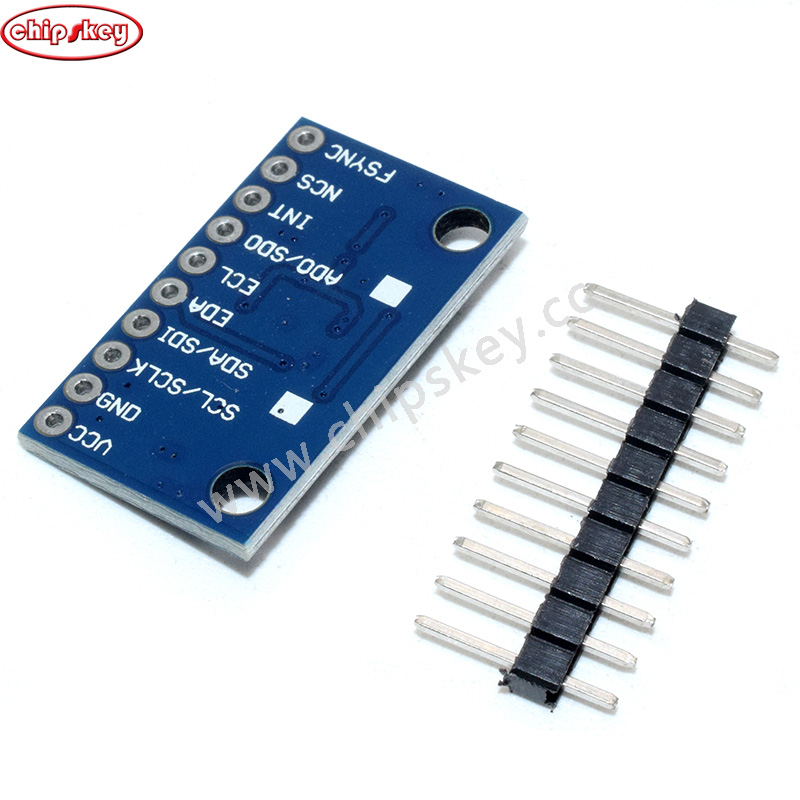

GY-6500 MPU6500 SPI/I2C Interface Alternative Sensor Three-axis gyroscope + triaxial accelerometer

Product description Gyroscope Features: -Digital-ouput X-, Y-, and Z-Axis angular rate sensors ( gyroscopes ) with a user-programmable full-scale range of +/-250,+/-500,+/-1000, and +/-2000??/s and integrated 16-bit ADCs -Digitally-programmable low-pass filter -Gyrsocope operating current: 3.2mA -Factory calibrated sensitivity scale factor -Self-test Accelerometer Features: -Digital-ouput X-, Y-, and Z-Axis accelerometer with a programmable full scale range of +/-2g, +/-4g, +/-8g and +/-16g and integrated 16-bit ADCs -Accelerometer normal operating current: 450??A -Low power accelerometer mode current: 6.37??A at 0.98Hz, 20??A at 5Hz, 17.75??A at 31.25Hz -User-programmable interrupts -Wake-on-motion interrupt for low power operation of applications processor -Self-test Applications: -TouchAnywhere technology(for "no touch" UI Application Control/Navigation) -MotionCommand technology (for Gesture Short-cuts) -Motion-enabled game and application framework -Location based services, points of interest, and dead reckoning -Handset and portable gaming -Motion-based game controllers -3D remote controls for Internet connected DTVs and set top boxes, 3D mice -Wearable sersors for health, fitness and sports Product information Package Dimensions 2.8 x 2.4 x 0.8 inches
