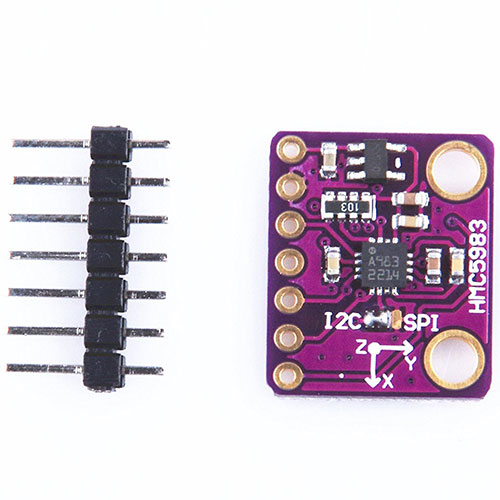

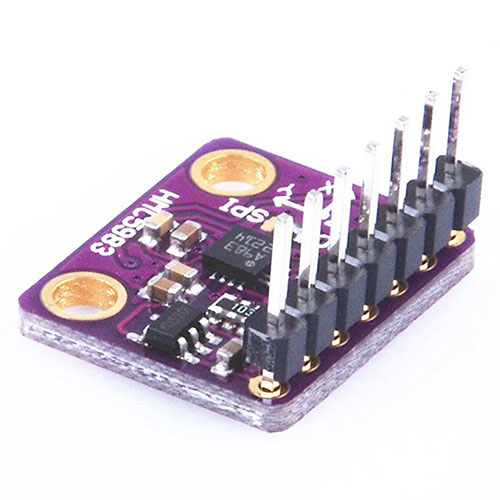

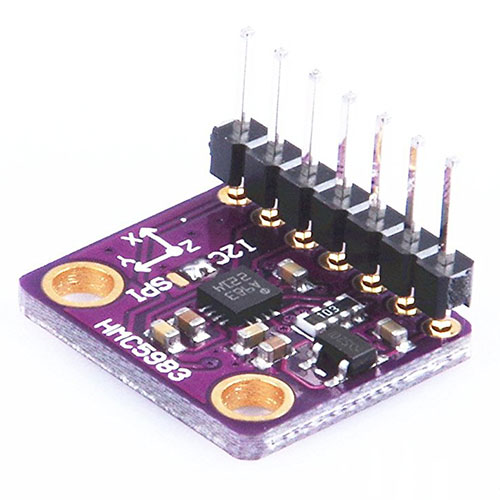

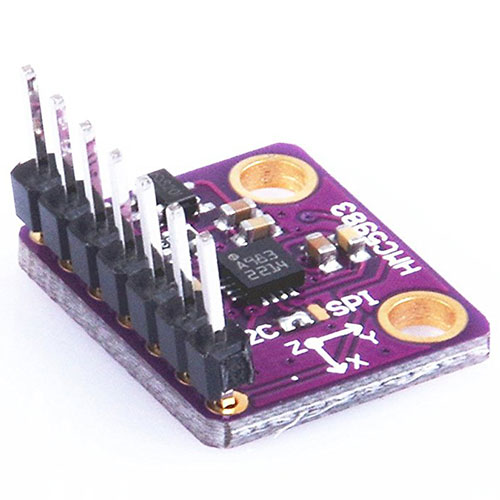

Product description Immersion Gold Process gilded Pin interference. HMC5983 high-precision triaxial compass magnetic field sensor with temperature compensation. Compatible HMC5883L, alternative HMC5883L. With temperature compensation data output. Power supply: DC3-5V.Maximum 220HZ output frequency. Means of communication: IIC / SPI optional Power supply: DC3-5V With temperature compensation data output; Automatic offset compensation; Maximum 220HZ output frequency Heading angle accuracy of 1-2 degrees. PCB size: 15.2mm * 17.8mm Schematics, datasheets, test code Weight:2.0g. Product information Package Dimensions 4.3 x 3 x 0.4 inches Item Weight 0.32 ounces
