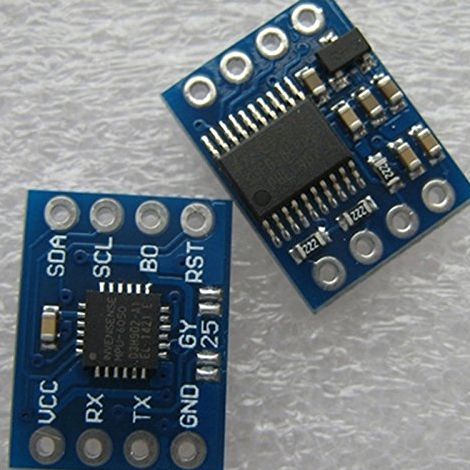

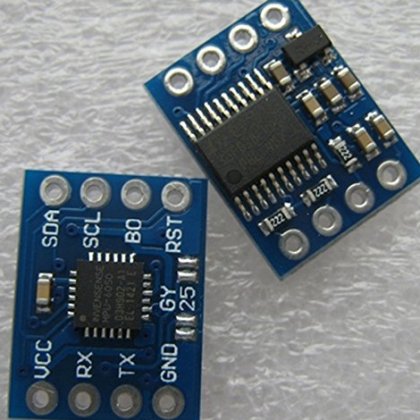

GY-25 Tilt angle module serial output angle data directly MPU-6050 module

Product features Electronic Module GY-25 moduleUsing the chip: MCU+MPU6050Model: GY-25Power supply: 3-5v (internal low voltage regulator)Communication: serial communication (baud rate 9600,115200),IIC communication (read only raw data)The same time asModule size: 15.5mm * 11.5mmPin pitch 2.54mmDirect data: YAW ROLL PITCHHeading angleYAW) ± 180 °Roll angleROLL)± 180 °Pitch angle(PITCH)± 180 °± 90 ° +± 90 °)Angle resolution of 0.01 °Provide single-chip reader to read the data program, the relevant data manual.provide technical support.The existing example program (51 single chip, , STM32)Provide PC softwareserial wiring
