Gopro3 2 Axis Camera Mount

PTZ voltage: 7.4-11.1V

Current: 150mA

Height: 95mm

Weight: 160g / 235g (without / with Gopro 3+)

Color: silver


Assemble and commission, ready for flight.

Simple and stable CNC aluminum alloy structure

Ultra light design professional

Brushless motor direct drive

With anti-vibration rubber ball, effectively reduce vibration

Compatible with Gopro 3, 2, 1 and similar sized weight (50-120G) cameras

Use 2 2208 motors and BGC3. 1 universal joint controller system

With motor protector to help dissipate heat



How to calibrate:

Press the button on the controller once to calibrate the accelerometer;

Press the button on the controller twice to calibrate the gyroscope;

Press the button on the controller three times, the current position is set as the default value;

Long press will restart the system.


package
1 * Aluminum universal joint 2 motors
1 * gimbal control panel
1 * sensor
1 * pitch control cable
4 * Anti-vibration ball (not necessarily black)

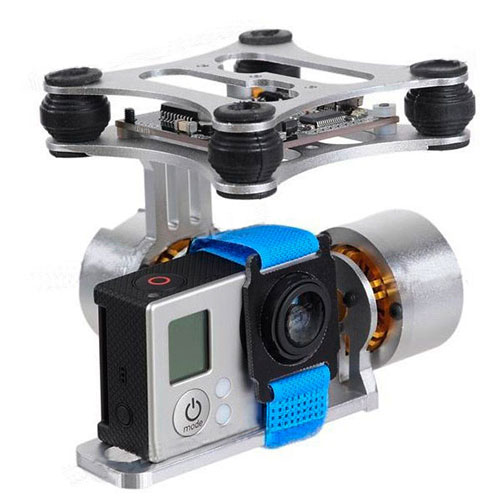

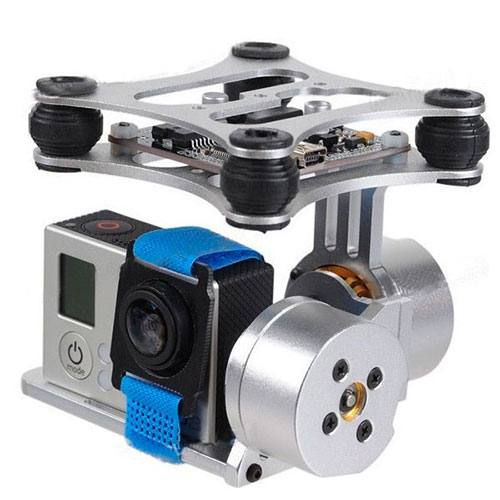

This product does not include the camera shown in the picture.
