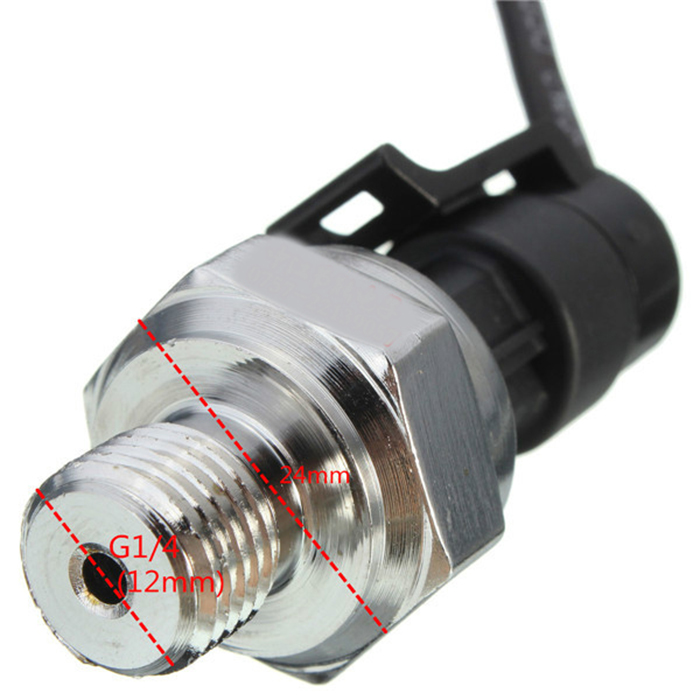

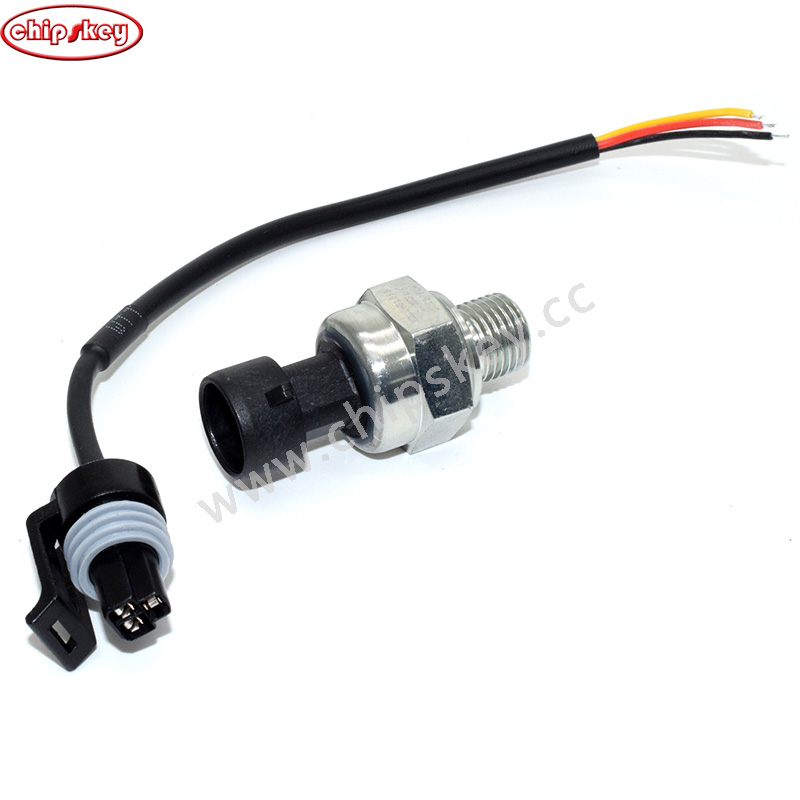

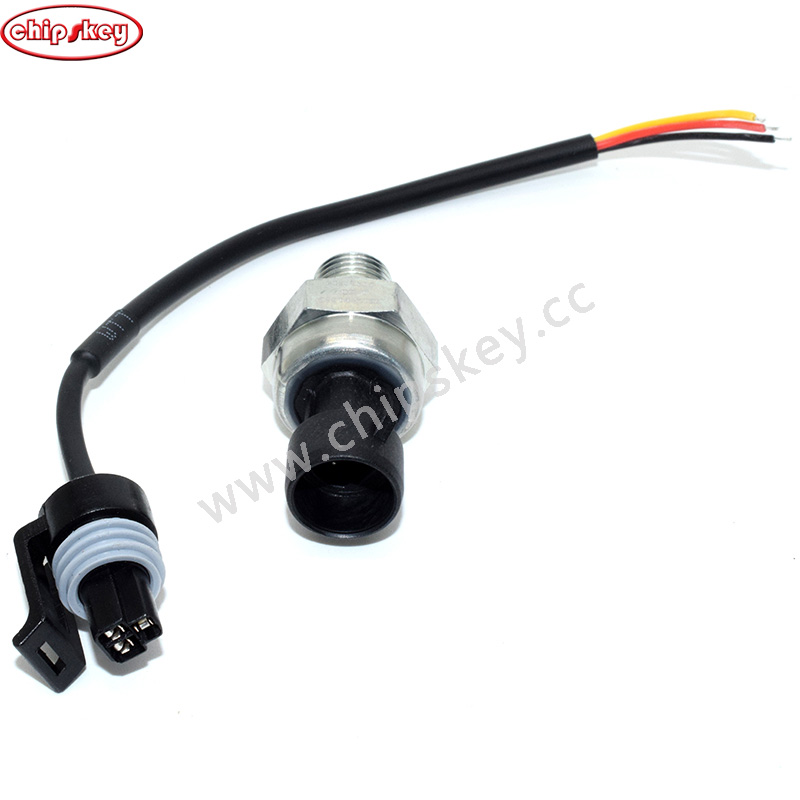

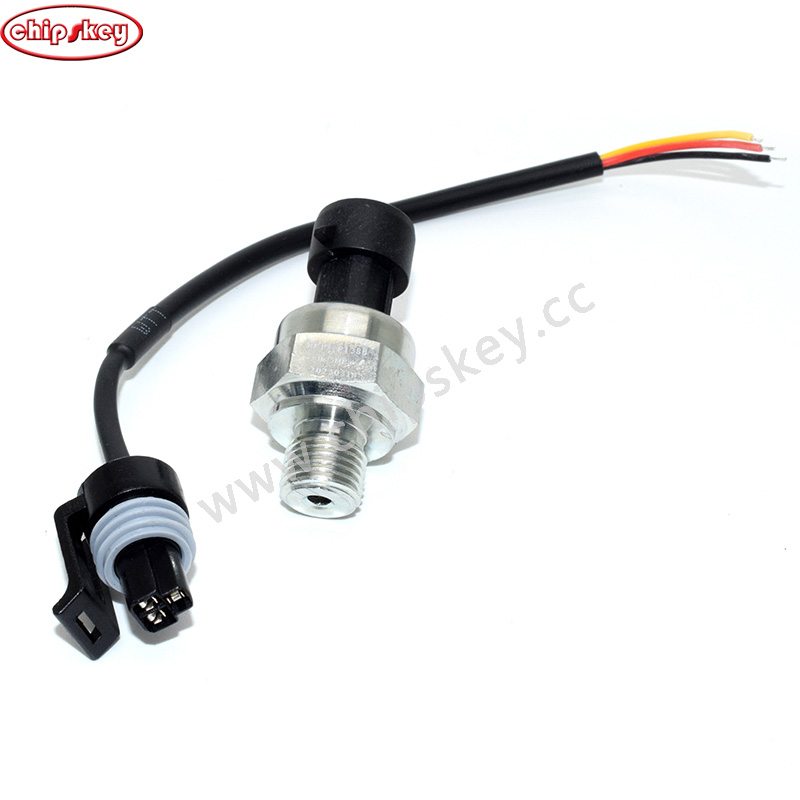

G1/4 5V 0~0.5mpa Water pressure sensor / Air pressure / Oil pressure sensor / Air compressor pressure sensor

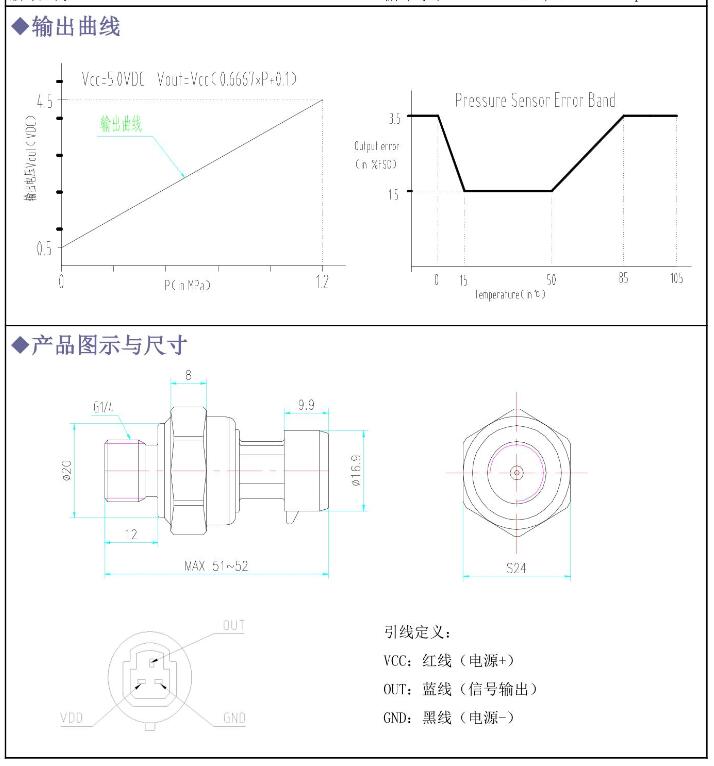

Product features 1. Easy removal, carbon steel connection more firmly. 2. Stainless steel is durable, sealed waterproof line, imported chips. 3. Wide range of temperature compensation 4. For non-corrosive gas, water, oil, etc 5. Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement, civil use product batch Product description Working Voltage: 5VDC; Output Voltage: 0.5-4.5 VDC; Sensor material: Carbon steel alloy; Working Current: ≤10 mA; Working Pressure Range: 0-1.2 MPa; The Biggest Pressure: 2.4 MPa; Cable length: 19cm; Destroy Pressure: 3.0 MPa; Working TEMP. Range: 0-85℃; Storage Temperature Range: 0-100℃; Measuring Error: ±1.5 %FSO; Temperature Range Error: ±3.5 %FSO; Response Time: ≤2.0 ms; Cycle Life: 500,000 pcs; Application: non-corrosive gas liquid measurement; The transducer come with the pigtail
