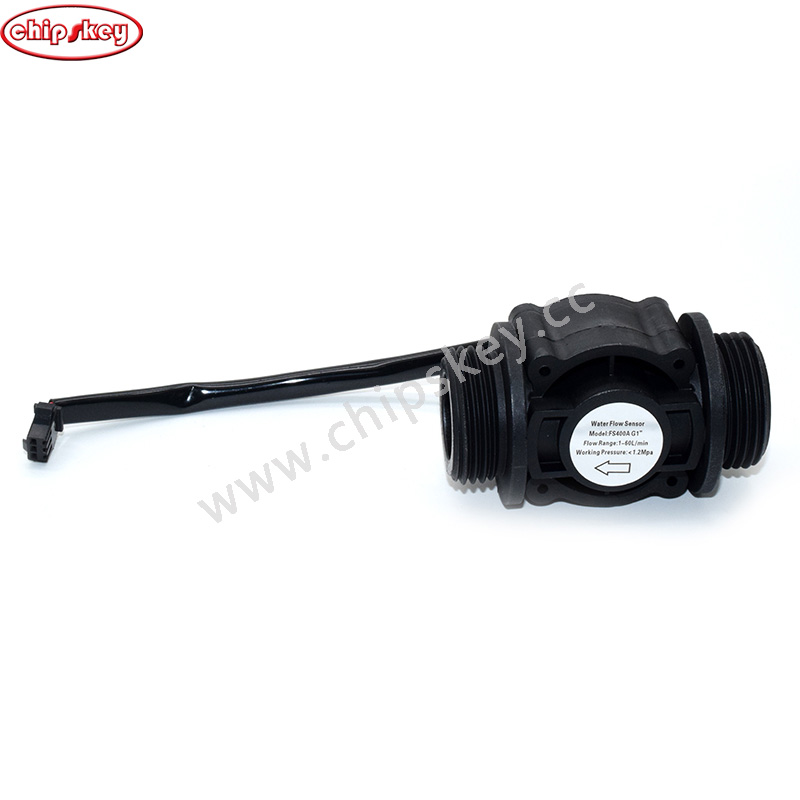

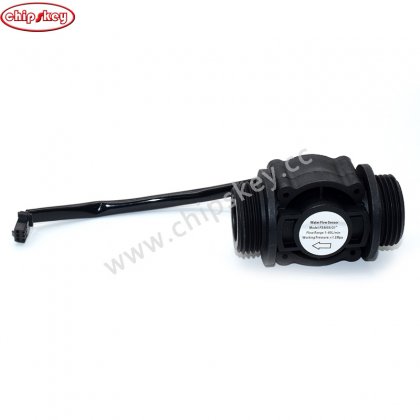

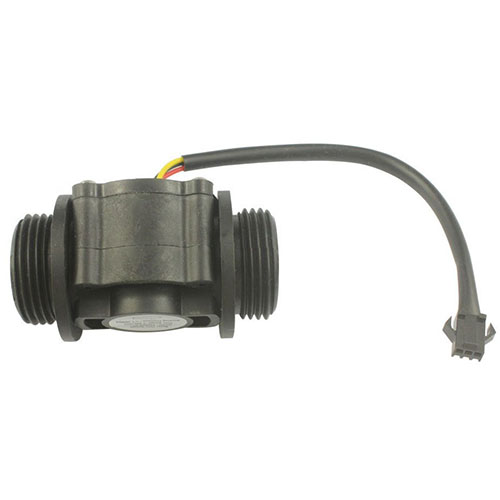

FS400A G1 DN25 1inch 1-60L/min 3.5-24V Water Flow Sensor

FS400A G1 DN25 1inch 1-60L / min 3.5-24V Water Flow Sensor

product description
Water pressure:> 1.75MPa;
Operating voltage range: DC5 ~ 24V;
Insulation resistance:> 100Mohm;
Accuracy: 1 ~ 60L / MIN +/- 3%;
Flow pulse characteristics: (4.8 × Q) Q is L / Min, for example 4.8L to 1L × 1 × 60 = 288 The number of output pulses 1L, or 1L The output pulses 288 and 60 are seconds;
Low temperature test: the temperature is placed at -20 72h, room temperature for 1h, the first measurement accuracy within the range of +/- 5%;
High temperature test: the temperature at 85C for 72 hours, at room temperature for 1 hour, the error within the first measurement of +/- 3%;

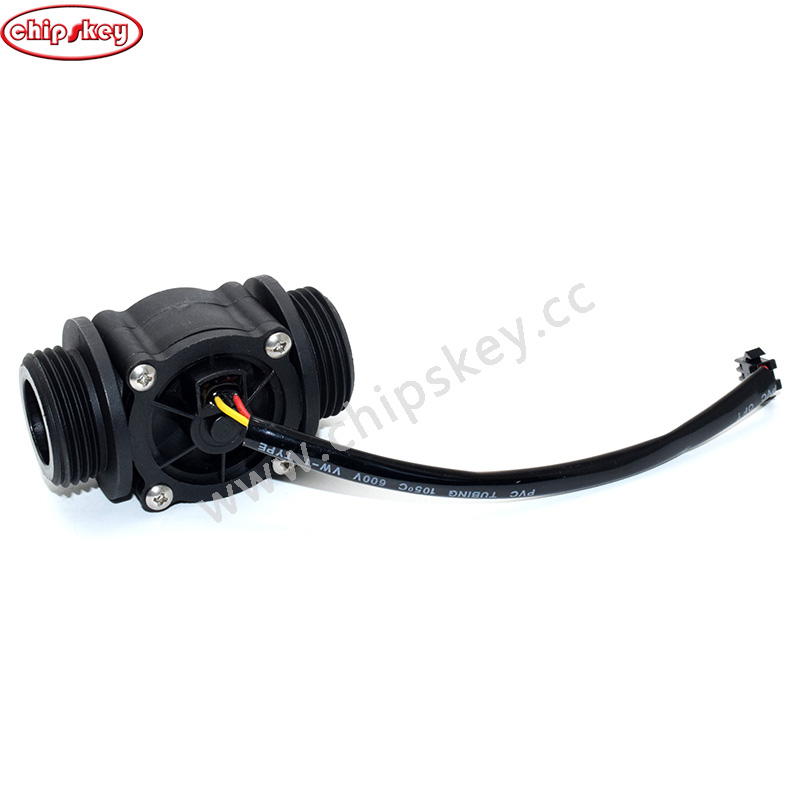

Wiring: red + black - yellow pulse signal output
Size: 2.95 inches x 1.69 inches x 1.69 inches (7.5 cm x 4.3 cm x 4.3 cm)

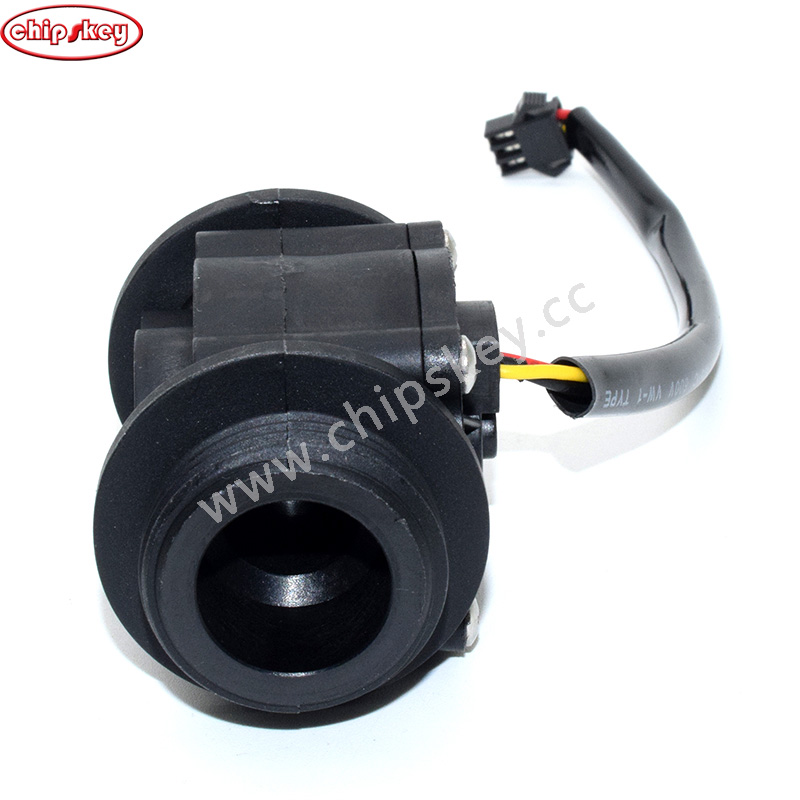

Thread size: G1 "
Weight: 3.00 ounces (85 grams)
