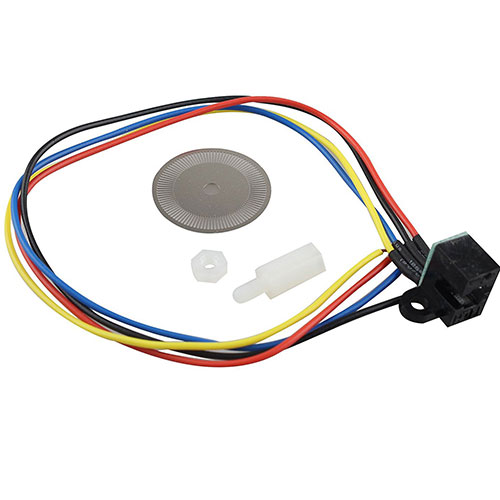

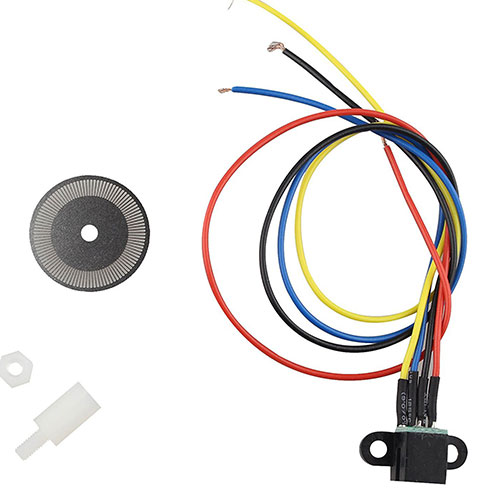

Freescale smart car speed sensor photoelectric Kit

Product Features

Features:
Lines: 100 lines.
Outer diameter: 22 mm.
Hole diameter: 3.5mm.
Thickness: 0.3mm.
Material: alloy steel.
Production process: laser cutting.
Supply voltage: 5V (3.3V is also available).

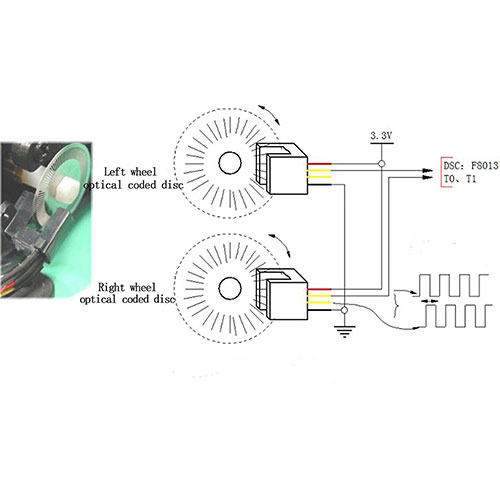

Wiring: red 5V / black GND.
Output signal: 5Vp-p two-phase signal output.
Two signal lines, one yellow, one blue.
Yellow and blue are two TTL level signals (can be directly connected to the microcontroller)
(Note: Measuring reversibility depends on these two levels to distinguish between positive and negative).
