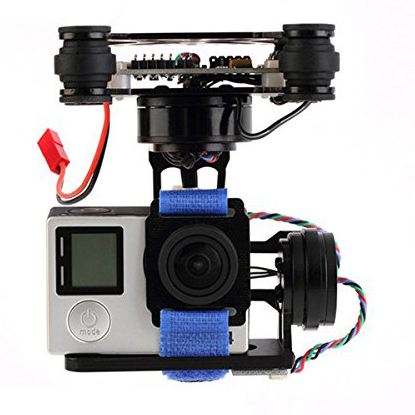

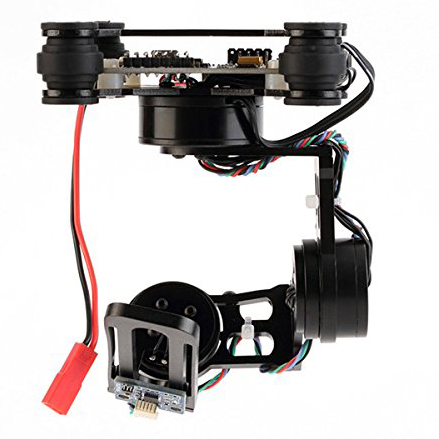

FPV 3 Axis CNC Metal Brushless Gimbal With Controller For DJI Phantom GoPro 3 4 Only(Without Camera)

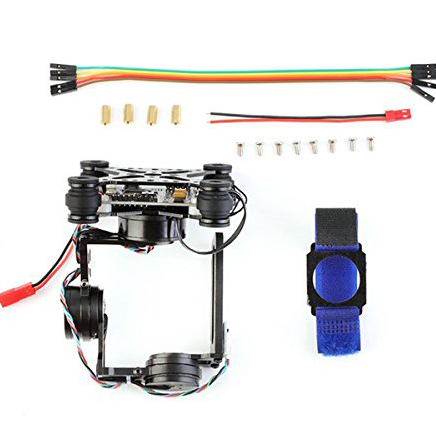

FPV 3 Axis CNC Metal Brushless Gimbal With Controller For DJI Phantom GoPro 3 4 Only (Without Camera) product description description: Product Name: FPV 3-Axis Brushless Universal Controller Motor type: 2 × 2206 / 100T brushless motor, 1 × 2804 / 100T Brushless motor driver board: STORM32BGC Firmware Version: o323bgc Release -v070 Hardware version: V130 Working voltage: 3 -4S (11.1-16.8V) Working current: 350mA Joystick control angle: PITCH: -25 degrees +25 degrees / ROLL: -25 degrees +25 degrees / YAW: -90 degrees +90 degrees. Switch control mode: lock Follow Size: 80 x 80 x 100mm (LxWxH) Material: CNC Metal weight: 180g How to install: 1. Remove the damping ball and open the top mounting plate 2. Mounting plate screw lock in the lower part of the aircraft 3. Install the vibration ball 4. Install the camera, tape state pocket camera Package Included: 1 x FPV 3-axis brushless CNC metal universal joint with controller 1 x camera strap 1 x JST plug / XH-2.54 plug 1 x 5 pin cable connector 1 x screw set (Without Camera) product information Product weight 9.1 ounces
