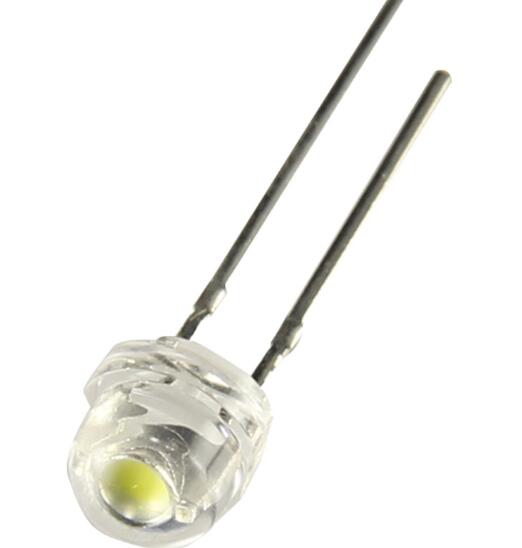

Product name: F5 straw hat led lamp bead
Conductors: 1.0 99.99% pure gold wire
Working voltage: white light/blue light/green light 3.03.2V red light/yellow light 1.9 - 2.1 V
Luminous angle: 120 degrees

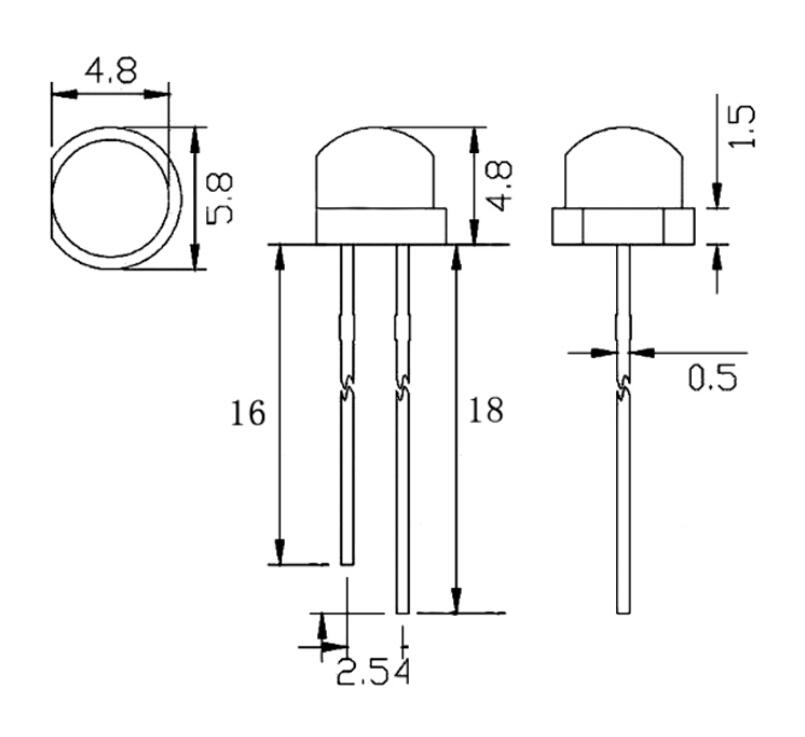

Product specification: diameter 4.8mm, height 5mm
LED node temperature: 125 ℃
Reverse withstand voltage: 5V
Operating temperature: -- 30C TO+75C
Storage temperature:+40C TO+60C
Manual welding temperature: 300 ° C ± 20 ° C For 3 Seconds
Anti static sensitivity: 2000V HBM
Thermal resistance: 10 ° C/W
Display index: 70Ra
