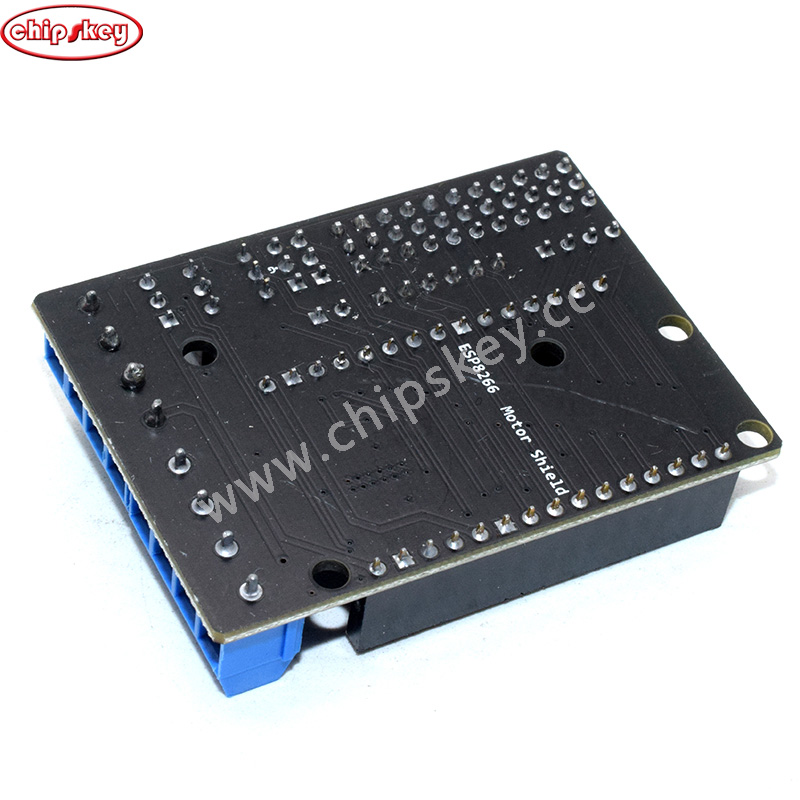

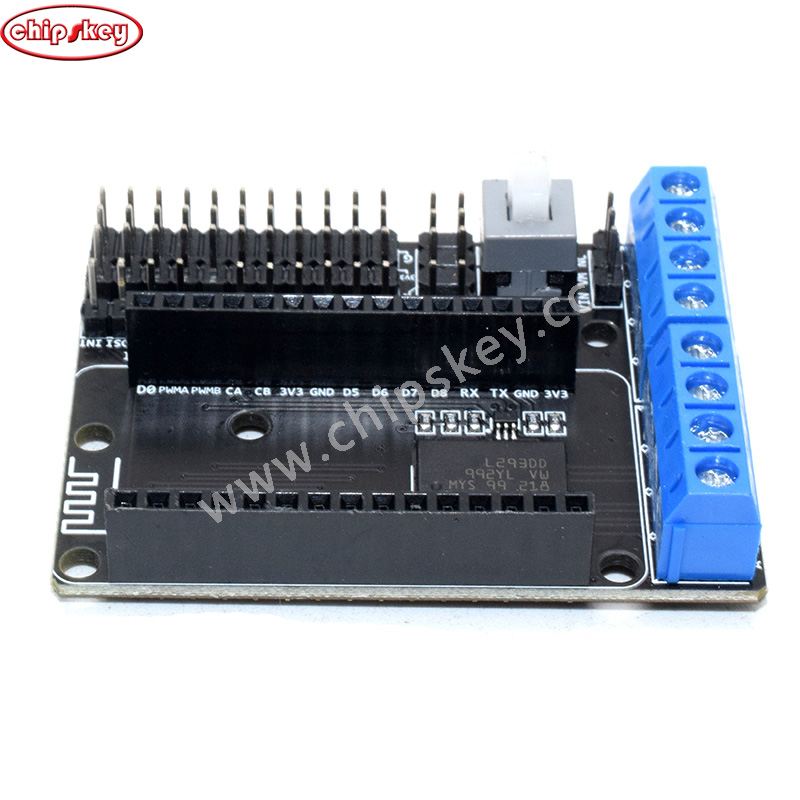

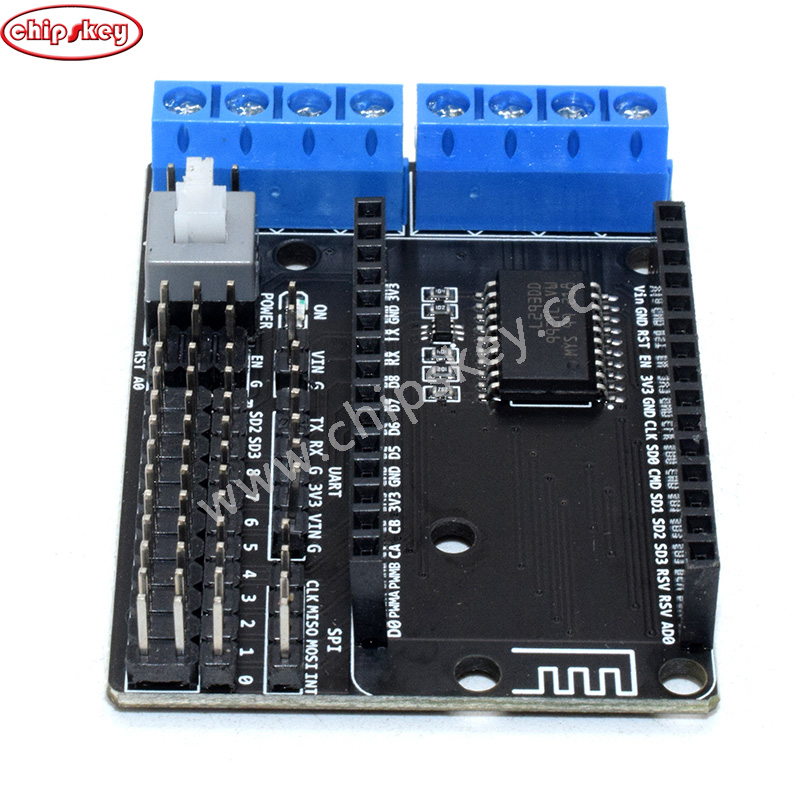

ESP8266 WiFi NodeMcu Shield (only Shield without NodeMcu)

product manual :
?
Based on the ESP-12E development kit, you can easily develop WiFi smart cars and send Android mobile phone resources for free.
?
feature:
?
l ESP12 development board development board expansion module;
?
All function pins: SPI, UART, GPIO, AI and 3.3V power connector;
?
l extended bidirectional motor drive, two-way direct drive motor;
?
l car power switch;
?
l Motor power range: 4.5V ~ 36V;
?
l control power range: 4.5V ~ 9V;
?
l Motor power, control power separation; In the experiment, VIN and VM were short-circuited by powering off the short circuit and powering the motor and control board.
?
?
?
Precautions
?
When inserting the ESP-12E module, pay attention to the direction of the expansion board antenna;
?
l Use a short module that controls both the circuit board and the motor.
