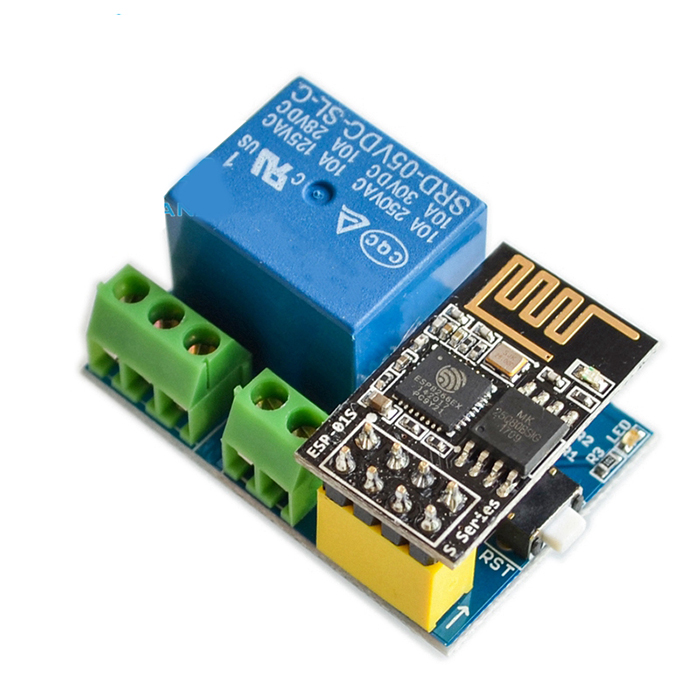

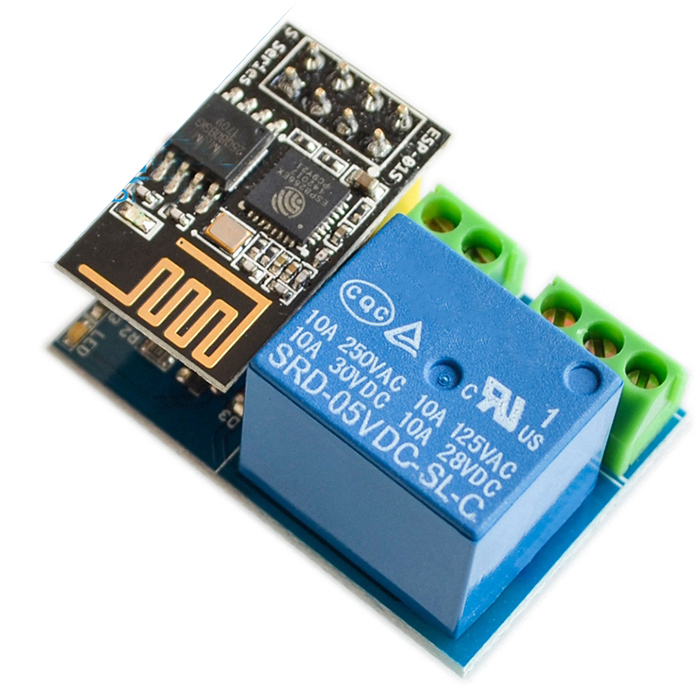

ESP-01S Relay Module Remote Switch Phone APP DIY Project Design Kit

Adding an ESP-01S module, this intelligent relay module is based on the ESP-01S WIFI module design, which can be used for DIY's own intelligent switch. It can be remotely controlled by mobile phone APP to provide APP and LUA source programs. Ready to use, simple and convenient. Features: * Module working voltage: DC 5V * Relay load capacity: 10A 250VAC 10A 125VAC 10A 30VDC 10A 28VDC application: 1. Wiring: Connect the devices to be controlled, such as lights and fans, to the relay terminals. . . . 2. Burning program: use the downloader provided by this site, one-click download. 3. Connect the mobile phone to the hotspot sent by ESP-01S, open the mobile phone APP: ESP8266 Controller, set the IP address: default 192.168.1.1 Password: 12345678
