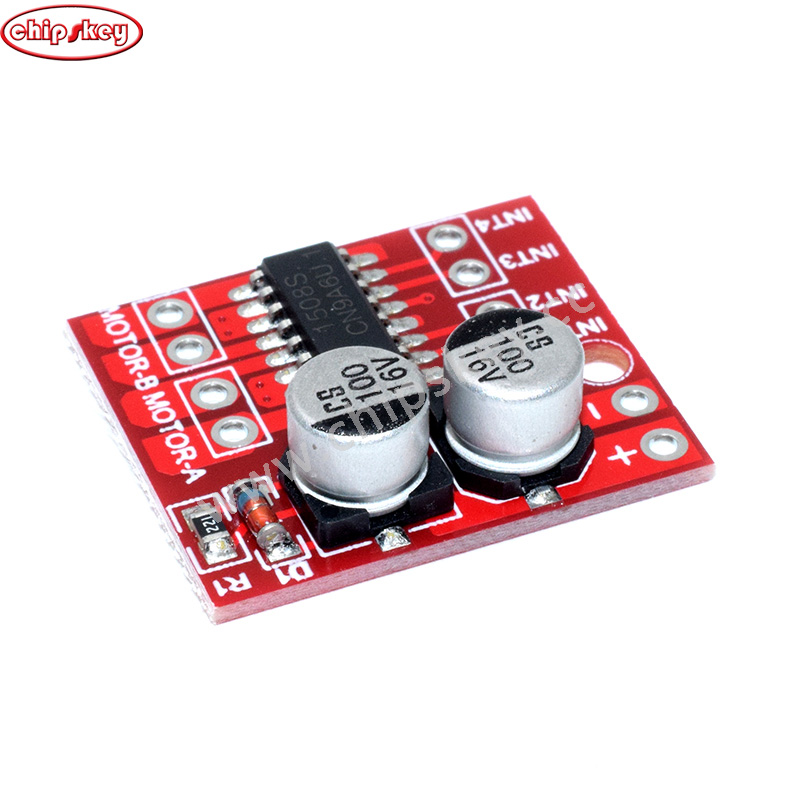

Dual Channel L298N DC Motor Driver Board PWM Speed Dual H-Bridge Stepper Module

Product Features Double 1.5A * 2, the peak current of 2.5A, built-in thermal protection circuit, do not be afraid of motor stall burn, the temperature dropped automatically restored. Double H-bridge motor drive, can drive two DC motors or a four-wire two-phase stepper motor. Positive and negative power supply will cause damage to the circuit. Motor drive module is ideal for battery-powered smart cars, toy cars, robots. Small size, light weight, zero standby current, is your cars ideal choice. product description Features: Power supply voltage 2V-10V, can drive two DC motors or a four-wire 2-phase stepper motor. It can achieve forward or reverse. You can adjust the rotation speed. Each can provide 1.5A of continuous current, peak current up to 2.5A, thermal protection and can automatically recover. Product Highlights: The use of imported original chip, built-in low on-resistance MOS switch, heat a very small, no heat sink, small size, low power consumption, ideal for battery-powered. (L298N internal transistor switching low efficiency, high fever, need to add heat sink, bulky, L298N is easy to burn out). Double 1.5A * 2, the peak current of 2.5A, built-in thermal protection circuit, do not be afraid of motor stall burn, the temperature dropped automatically restored. Product parameters: Module supply voltage 2V-10V. Signal input voltage 1.8-7V. Single operating current of 1.5A, peak current up to 2.5A, standby current is low (less than 0.1uA). Built-in public conduction circuit, when the input pin is left open, the motor will not malfunction. Built-in hysteresis (TSD) overheat protection circuit, without fear of stalling the motor. Product Size: 24.7 × 21 × 5mm (length, width, height), ultra-small size. Mounting hole diameter: 2mm. Precautions: Output short circuit to ground or output short circuit, the motor stalls, the chip will heat protection. However, at or near 10V voltage and peak current greater than 2.5A can also lead to the chip burned Package includes: 10 x 1.5A Mini Dual DC Motor Driver Module Beyond L298N PWM Speed ??Control
