DSO188 Handheld Mini Pocket Portable Ultra-small Digital Oscilloscope 1M Bandwidth 5M Sample Rate Digital Oscilloscope

Description :



DANIU DSO188 is a super small digital oscilloscope with 5MS/s sampling rate and 1MHz bandwidth is designed for electronic enthusiasts and circuit R & D maintenance personnel. 1MHz bandwidth can be used for an amplifier, oscillator, automatic control system, DC/DC, inverter, switching power supply and so on. Whether DIY or scientific research education, vehicle maintenance, household appliances maintenance and so on are all good choices.



Features :



Memory compression technology, waveform refresh screen does not flicker.

1.8-inch color display screen.

1MHz analog bandwidth and 5MS/s sampling rate.

High measurement voltage range, 1X can measure 0-40V, 10X can measure 40-800V.

Frequency can be displayed, Vmax, Vmin, Duty, Vrms, Vpp.

At any time, the waveform display (pause function) is frozen.

Battery/USB power supply, built-in 250mAh battery and intelligent charge management.

Ultra small volume, easy to carry.



Specification :



Analog band width: 1MHz

Maximum real time sampling rate: 5MS/s

Vertical sensitivity: 50 mV/div-200 V/div

Horizontal time base range: 100mS/div-2uS/div

Maximum input voltage: 40 V (1X probe), 800 V (10X probe)

Storage depth: 40KB

Input resistance: 1M

ADC precision: 12bits

Coupling mode: AC/DC

Trigger mode: Auto

Trigger edge: Ascending/descending edge

External trigger voltage 0-40V

Display: TFT color display

Power supply: 250 mAh lithium battery

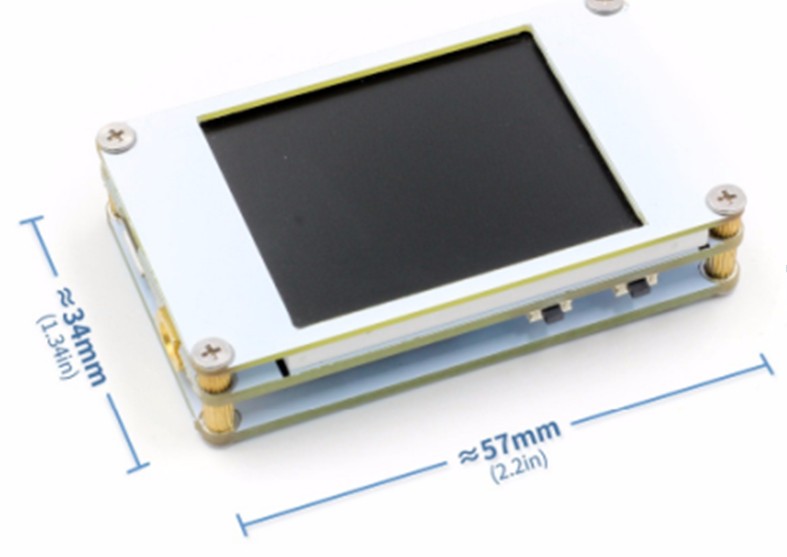

Size: 57 x 34 x 11 mm

Weight: 40 grams
