Door Opener Remote Control
Receiving board parameters:
Working voltage: DC12V / DC24V
Static current: 10mA
Working frequency: 31 5MHz
Load power: DC 5a, AC 300W
Frequency deviation: 0.1MHz;
Coding method: learning type
Working mode: inching, self-locking, interlocking, inching + self-locking
Receiving plate size: 68 * 48 * 19 (mm)
Shell size: 75 * 55 * 29 (mm)

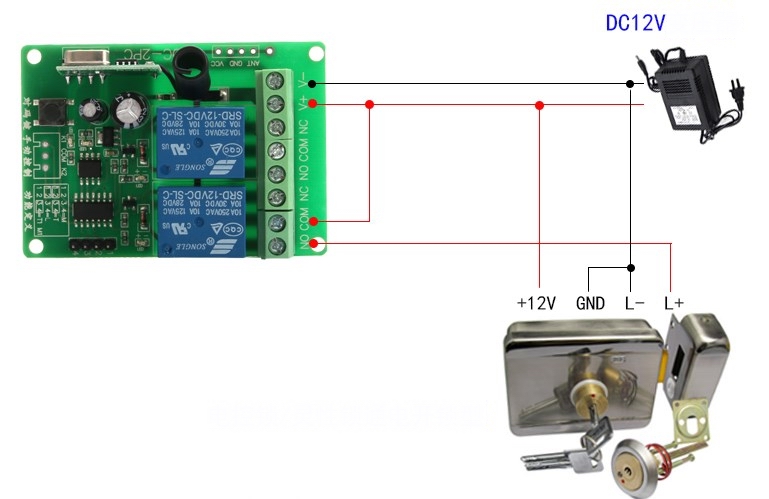

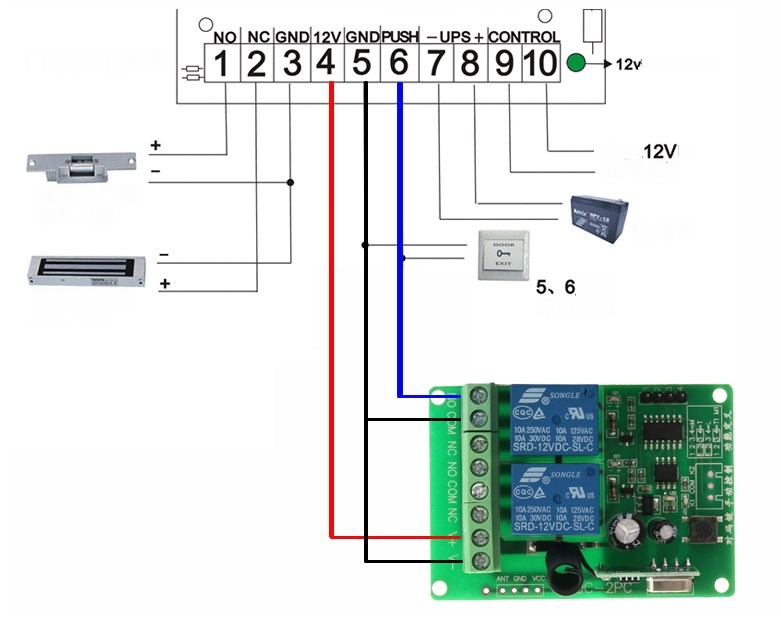

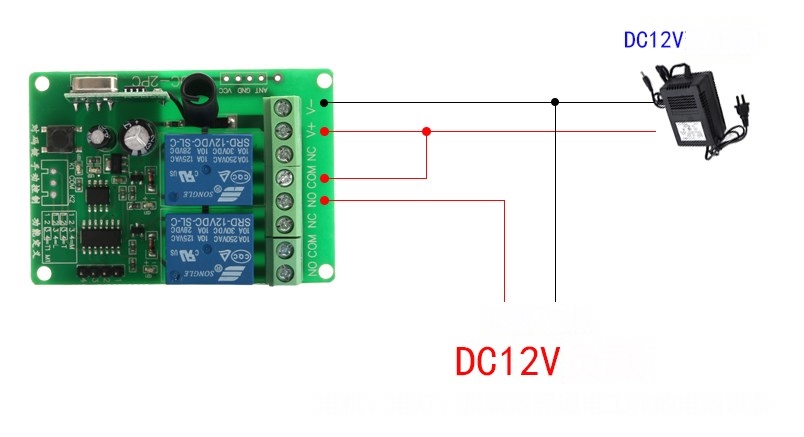

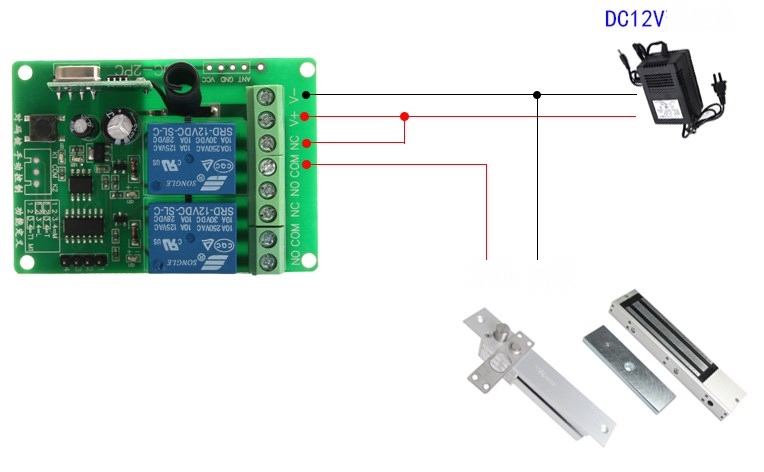

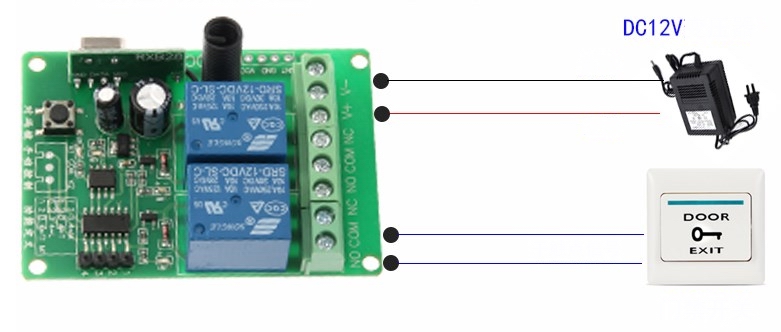

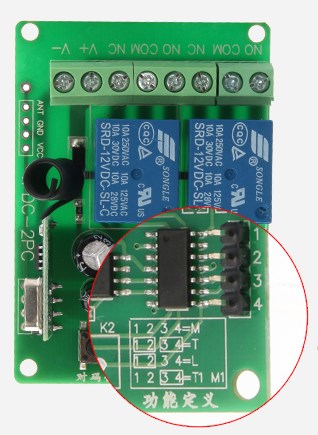

Receiver function definition adjustment: (through different insertion methods of pin and upper short-circuit cap)
● pin 1 2 3 4 = m (inching mode): four pins are not inserted
The principle of inching mode is to press and hold the key of the remote controller to output, and release the remote controller
The key has no output, and the two channels work independently. (suitable for access control)
● pin C 23 4 = t (self locking mode): all four pins are inserted
The principle of self-locking mode is to press the button a on the remote controller and then press the button a on the remote controller
The two channels work independently. (suitable for light belt and other electrical appliances)

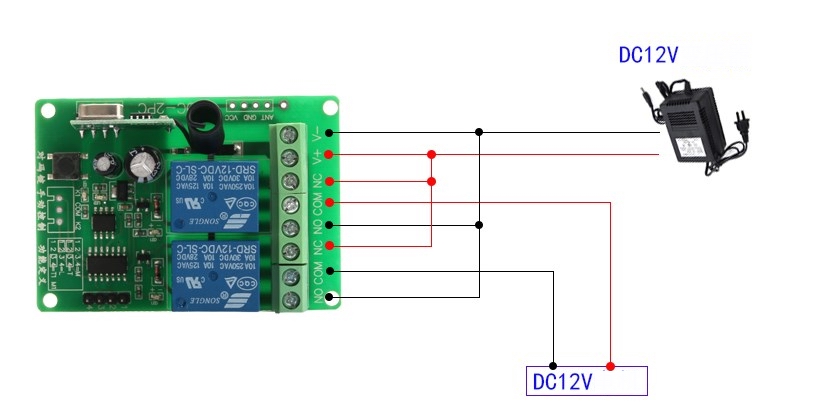

● pin C 23 4 = l (interlock mode): pins 1 and 2 are inserted into 3 and 4 empty,
The principle of interlocking mode is: press the button a on the remote controller, and press the button B on the remote controller
Channel a is off and channel B is on. When pressing button B again, channel B is off and channel a is on. Only one channel can be opened
Path, that is, the two paths control each other. (for controlling the forward and reverse rotation of 2-wire motor)
。 Pin 1 2 34 = T1 M1 (1-way self-locking + 1-way inching):
Pins 1 and 2 are empty, and pins 3 and 4 are inserted
One circuit is in jog mode, corresponding to one button of the remote controller
One channel is self-locking mode, corresponding to one button of the remote controller
Receiver learning method:
Add remote controller: press the ---. Lower receiver learning button, and then press the 2 buttons of ---. Lower remote controller successively, and the learning signal light will flash,
Indicates that the pairing has been learned successfully. Each key of the new remote controller can only be pressed once to correspond to the receiver in turn
One way relay of.
Remote control clearing: press and hold the receiver learning button until the learning signal light goes out, indicating that the clearing has been successful.
After successful clearing, press the learning button to learn the remote controller again after 3 seconds
