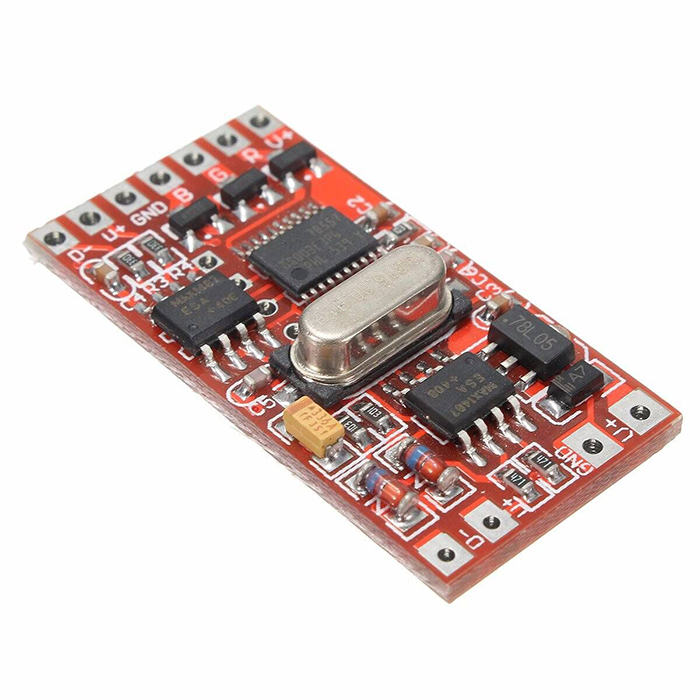

DMX512 decoder controller three channels For 5050 RGB Light strip

First, the performance parameters:
Dimensions: L36*W18*H6mm
Input voltage: 12~24VDC
Output current: 2A*3CH
Output power: 72W
Self power consumption: <1W
Output channel: three lanes
Second, the characteristics:
Agreement: Adopting the international standard DMX512 protocol (1990), with strong humility;
Transmission: RS485 differential transmission, with high anti-dry worry, long transmission distance, convenient wiring and so on;
Lightning protection: It has lightning protection, anti-static, and stable and reliable circuit.
Grayscale: 0-100% dimming, 256*256*256 grayscale;
Power supply; DC power supply.
Power-on: no impact at boot (the LED is completely off at boot time), which protects the LED;
three. Product function description
Working in tandem:
Each module is connected in series, no need to set the address, the address is automatically sequenced, and the use is very convenient. The signal distance between the drivers can reach 100 meters, and 170 drive boards can be connected.
Working in parallel:
Each module is connected in parallel, and an amplifier is required every 32 modules (this number is the theoretical value, the actual test is subject to the engineering field test), and each module sets a unique address (can be written by the code writer);
Operating mode:
??????When the DMX512 controller is connected, it will change according to the effect of the controller.
When the DMX512 controller is not connected, the built-in effect (seven color jump, gradient) will be automatically run; in the serial mode, when the main controller is not connected, the first decoder can automatically become the master to realize synchronous online change;
Third, the scope of application:
Mainly used in high-power full-color wall washers, floodlights, buried lights, underwater lights, stage lights, tunnel lights, etc.
