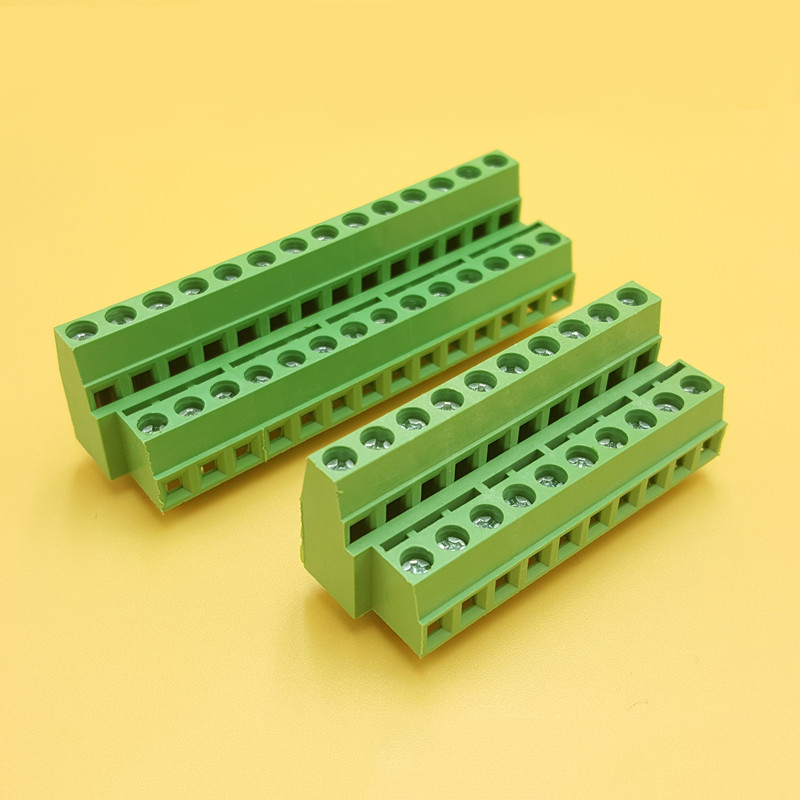

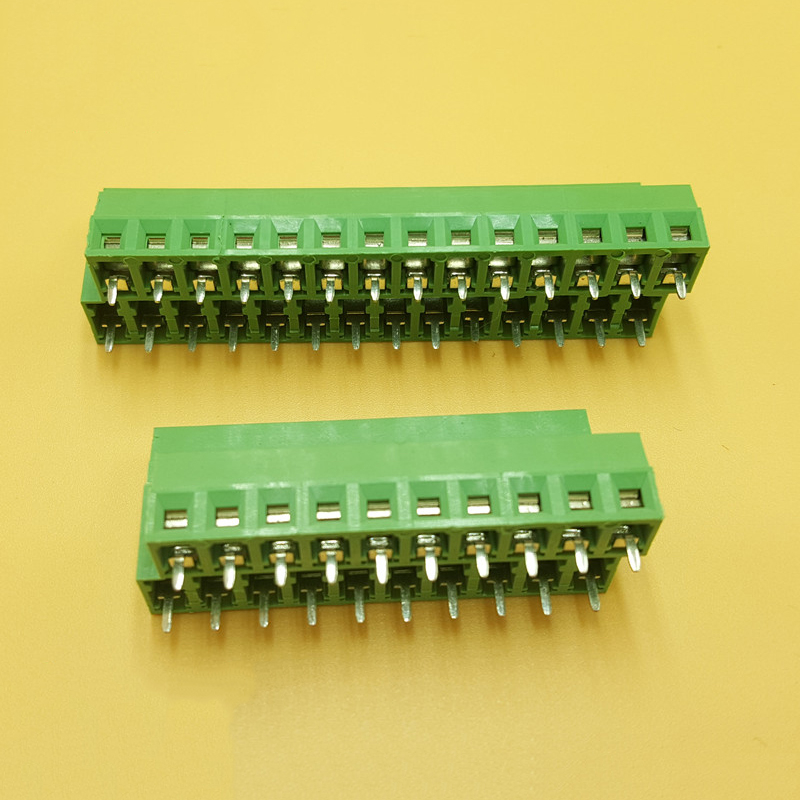

DG381-3.5-08P-14-00AH
MATERIAL
Pitch: 5.00/5.08mm
Poles:2P、3P
Screws: M2.5. Steel. Zinc plated
Wire cage; Steel Zinc plated or Brass
Ni plated
Pin header: Brass. Tin plated
Housing: PA66. UL94V- 0
ELECTRICAL
Rated voltage: 300V
Rated curent: 10A
Withslanding voltage:AC2000V/1Min
Wire range: 26- 14 AWG
MECHANICAL
Temp range: -40C-+ 105C
MAX soldering: + 250C for 5 sec.
Torque: 0.4 Nm (3. 5lb.in)
Strip length: 4-6mm
