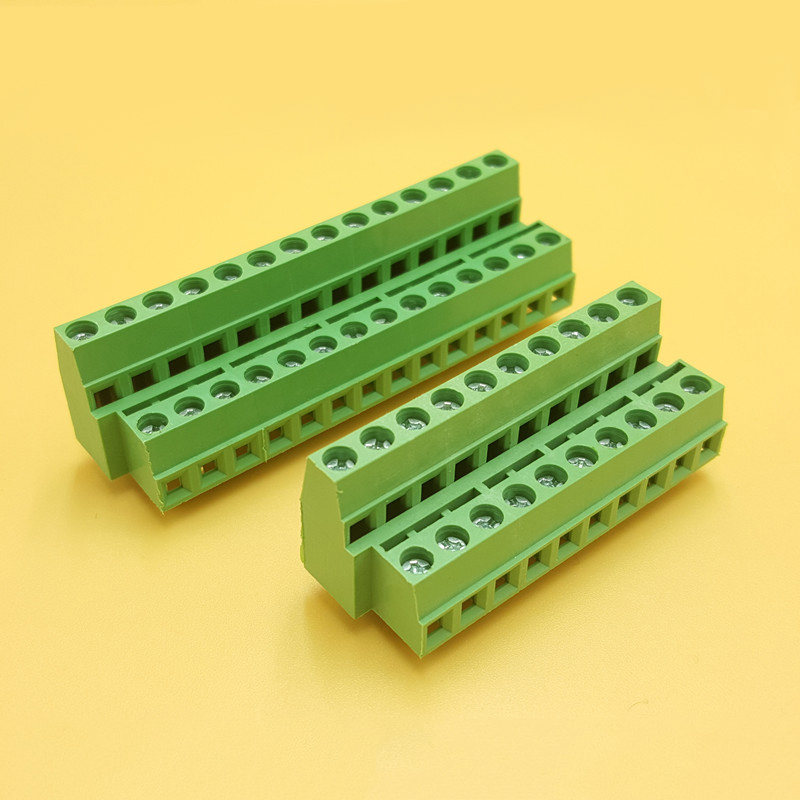

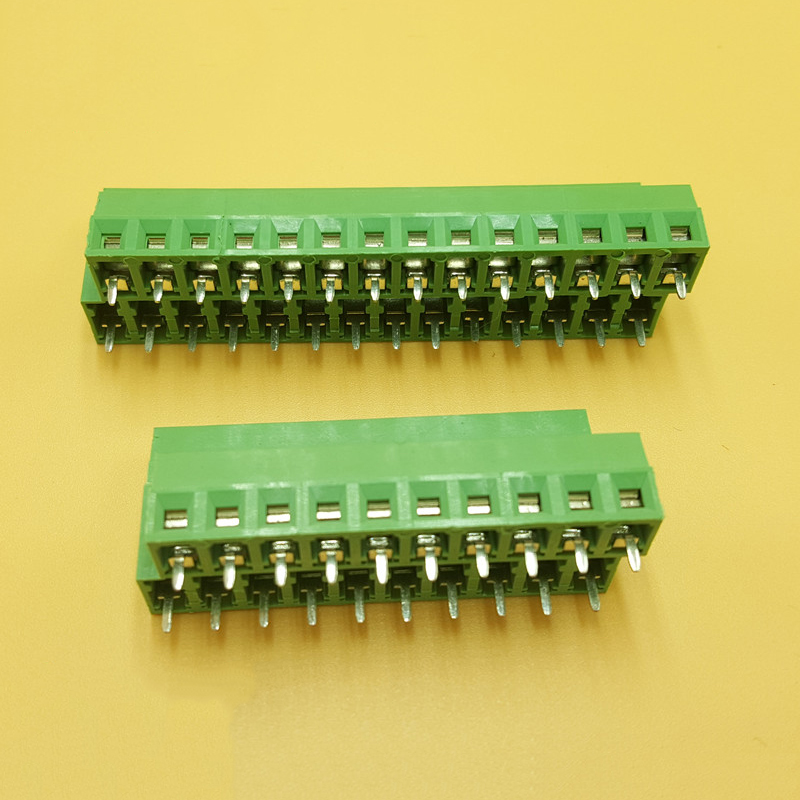

DG127-5.08-02P-14-1000AH
  • DG127-5.08-02P-14-1000AH
  • DG127-5.08-02P-14-1000AH

DG127-5.08-02P-14-1000AH

  • SKU: 54042
359:viewed
US$0.20
  (9842 Pieces available)
Add to Wishlist
Hot Products
Black 301-2P
Fixed Terminals 30A 220*36*32
1000pcs/bag PTV5.5-13 Pin-type cold ends, the copper ear copper nose, terminals, pin pre-insulated terminals
1000pcs/bag RV1.25-5 O-cold terminal, round terminals, pre-insulating terminal lug, copper wiring nose
  • Description
  • Customer Reviews
  • Payment & Shipping

DG127-5.08-02P-14-1000AH

MATERIAL
Pitch: 5.00/5.08mm
Poles:2P、3P
Screws: M2.5. Steel. Zinc plated
Wire cage; Steel Zinc plated or Brass
Ni plated
Pin header: Brass. Tin plated
Housing: PA66. UL94V- 0

ELECTRICAL
Rated voltage: 300V
Rated curent: 10A
Withslanding voltage:AC2000V/1Min
Wire range: 26- 14 AWG

MECHANICAL
Temp range: -40C-+ 105C
MAX soldering: + 250C for 5 sec.
Torque: 0.4 Nm (3. 5lb.in)
Strip length: 4-6mm
