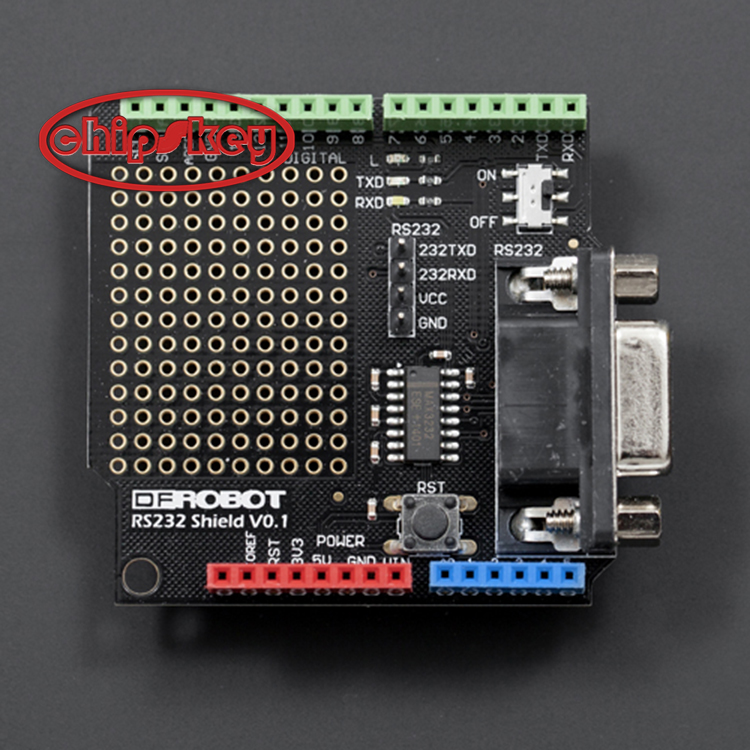

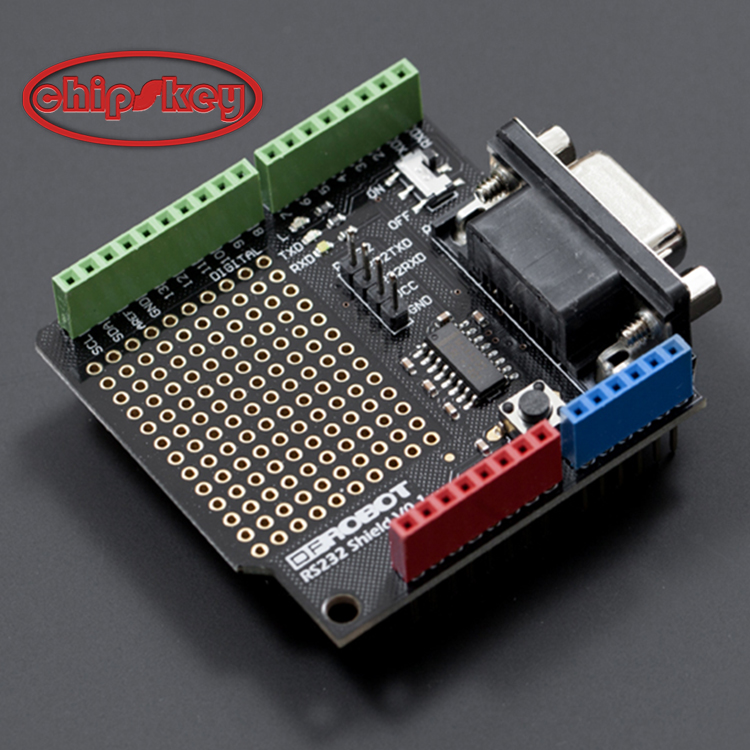

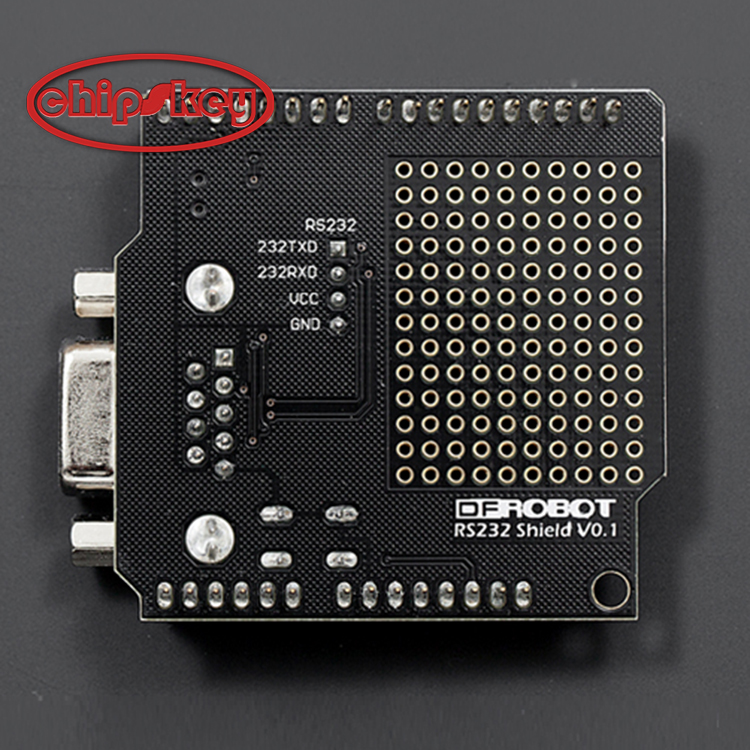

DFrobot TTL to RS232 expansion board
Product Introduction
Although EIA has introduced RS485 for many years, there are still many devices using RS232 communication protocol. If you happen to need to use Arduino to send and receive RS232 information, then this RS232 expansion board can come in handy. DFRobot's RS232 expansion board has the following characteristics.
The RS232 expansion board is specially designed for the Arduino controller, which can easily convert the serial port to the RS232 interface.

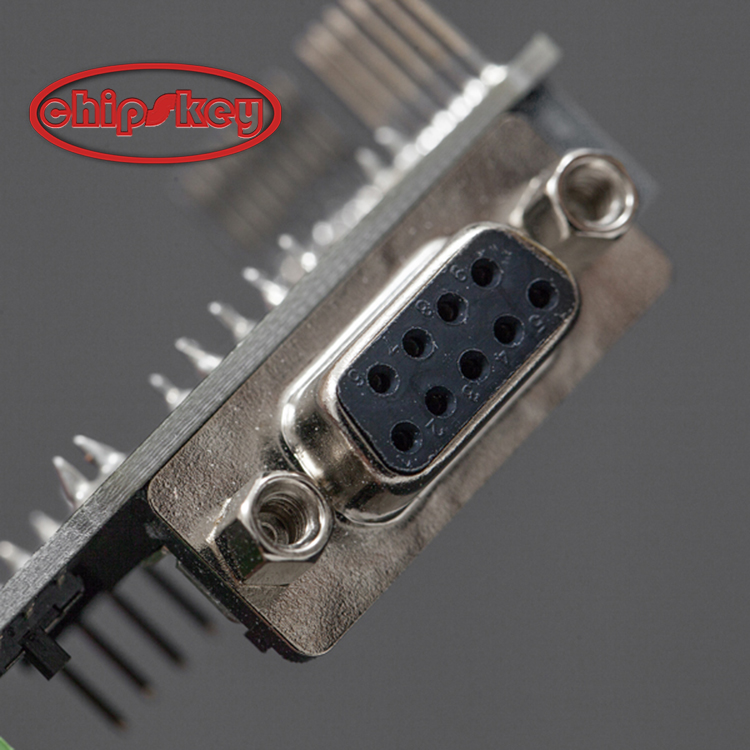

The board has its own DB9 interface (female), which can be easily connected to various RS232 interface devices, and the board has its own RS232 pin header, which is convenient for your connection and debugging.
The expansion board has a welding area to facilitate your DIY design and make full use of the space on the expansion board.
The board has a run/program mode switch. When it is turned OFF, the Arduino main controller will be programmed. When it is turned ON, the expansion board can be used normally.
Immersion gold technology is not only beautiful, but also guarantees PCB quality. The long-foot gold-plated pin header has good contact and is suitable for various Arduino master devices.
Technical specifications
Module power supply: +5V
Module size: 55mmx53mm
Lead out 16 digital IO ports (including an I2C interface)
Lead out 6 analog IO ports and power supply
Run/program mode switch
Transceiver indicator
DB9 interface (female), RS232 pin header
Weldable area
Reset switch
