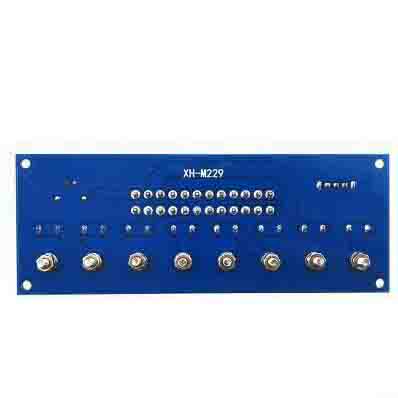

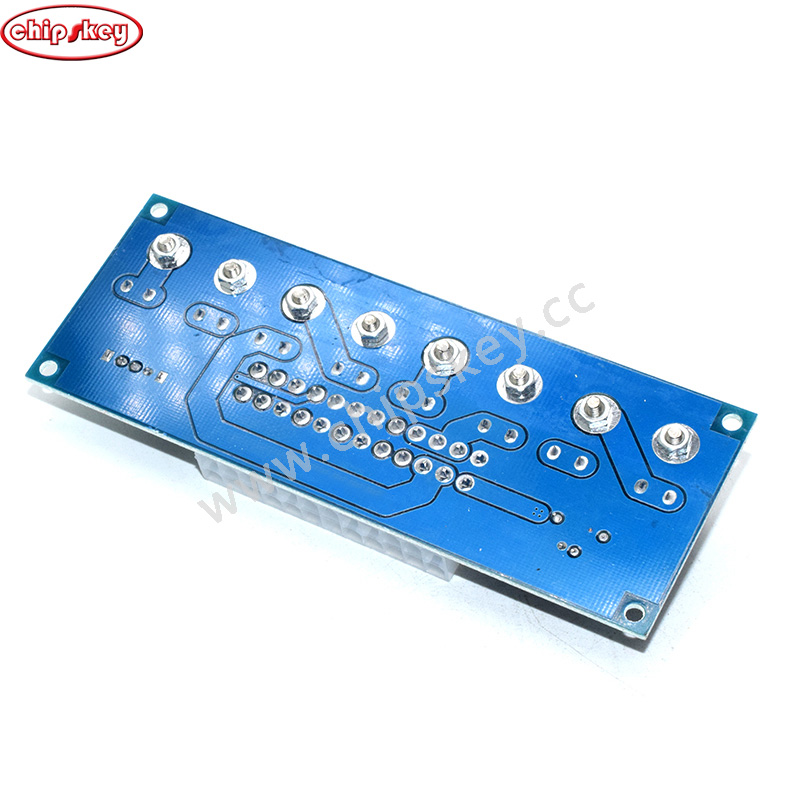

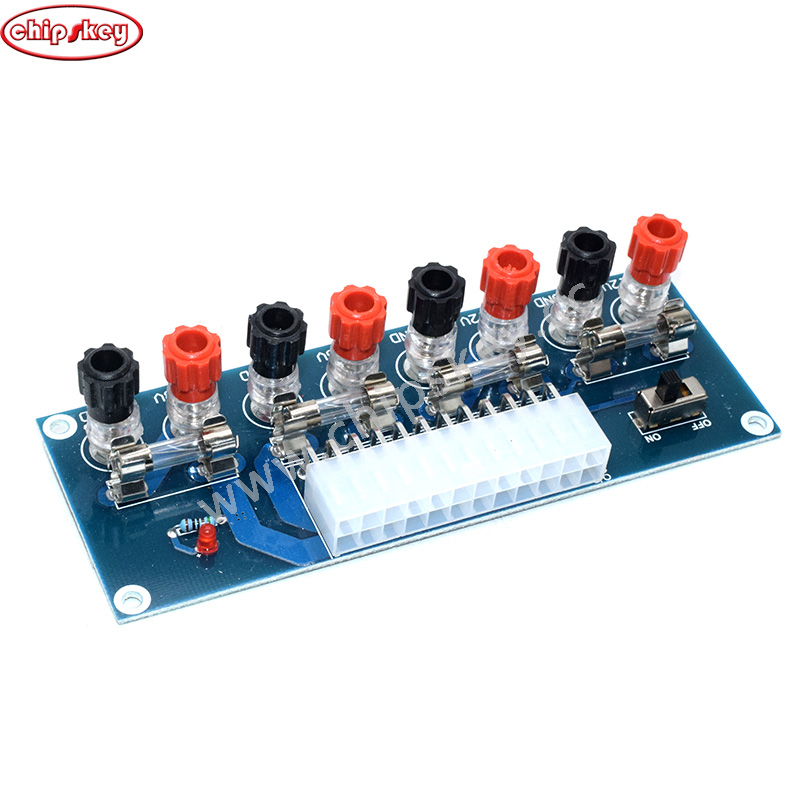

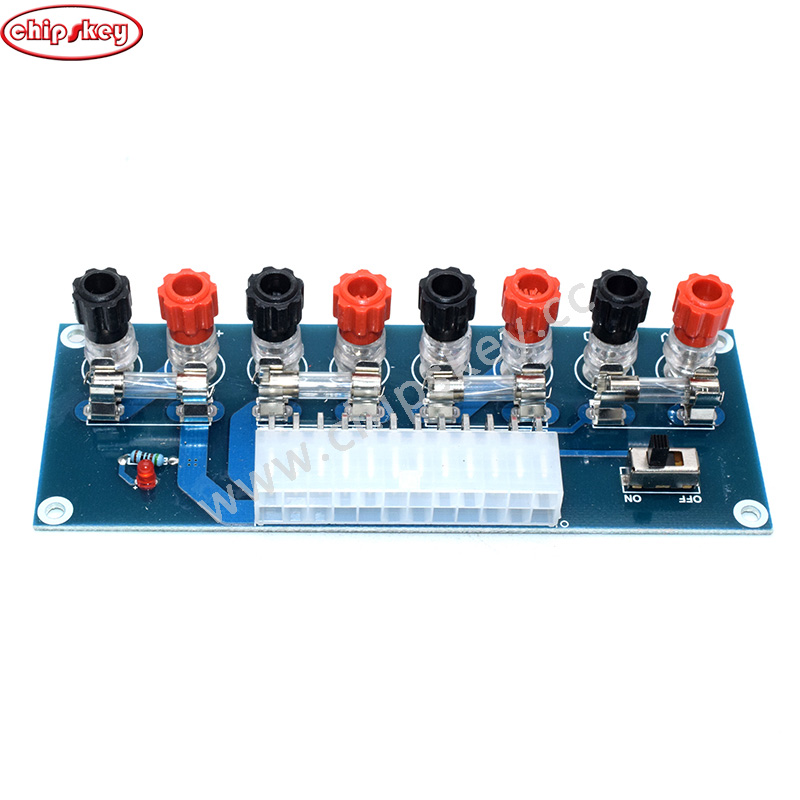

Desktop chassis power supply ATX adapter plate to take the template power output terminal XH-M229 Compatible Ports: ATX (Compatible with some BTX types) PIN number: 24pin Switch: Yes Output group: four different voltages Size: 128 * 48 * 30mm
Product Information
Please note that if the power supply is a 20PIN port and not a 24PIN port, the socket should be connected from the circuit board
Insert at the dot mark.
Compatible port: ATX (compatible with some BTX types)
Number of PINs: 24PINs
Number of output groups: four groups with different voltages
Switch: Yes
Description of voltage at each terminal:
-12V for GND, GND is the positive pole, -12V is the negative pole, and the voltage is DC12V
+12V for GND,+12V is the positive pole, GND is the negative pole, and the voltage is DC12V
+12V to -12V,+12V is the positive pole, -12 is the negative pole, and the voltage is DC24V
+5V for GND,+5V is the positive pole, GND is the negative pole, and the voltage is DC5V
+3.3V for GND,+3.3V is the positive pole, GND is the negative pole, and the voltage is DC3.3V
-It is not recommended to carry a high current load on the 12V terminal. It only provides a logical potential to the motherboard, usually with a current of
