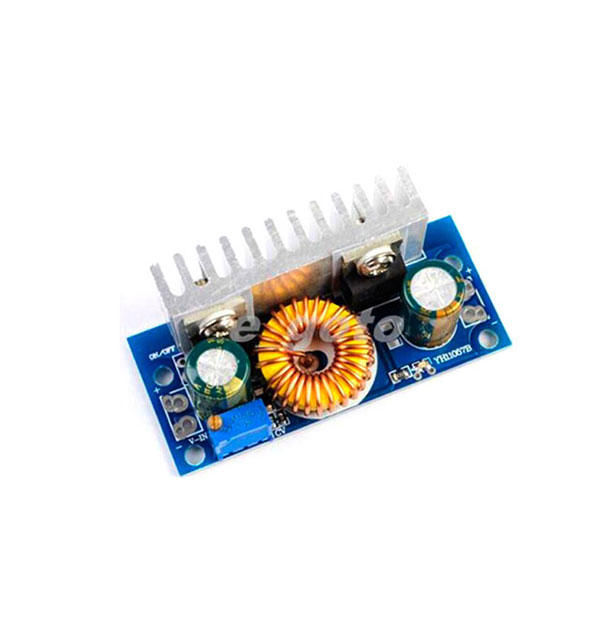

DC-DC Boost module / power / wide voltage / high efficiency / car laptop power supply / industrial power modules

description: Module Properties: Non-Isolated Boost Module (BOOST) ????? Input voltage: 4.5-32V ????? Input current: 0-6A ????? Output voltage: 5-42V continuously adjustable (default output 12V) ???????????????????????? 5-42V fixed output ??????????????????????? The default shipping adjustable output ????? Output current: 0-6A (input, output and pressure, the greater the pressure the smaller the output current) ????? Operating temperature: -40 to +85 degrees ????? Working frequency: 180KHz ????? Conversion efficiency: up to 94% (input and output voltage efficiency, current, pressure) ????? Short circuit protection: ????? Over-temperature protection: (shutdown output after over-temperature) ????? Input Reverse Polarity Protection: None (If necessary, input the string into the diode) ????? Installation: 4 3mm screws ????? Connection: Welding output, (V-IN is input, V-OUT output) ????? Module size: 60mmx30mmx20mm ? ?????? Weight: 40 grams
