DC0-100V 100A Red+Red and 100A Shunt

Technical Parameters:
Voltage measurement range
0.0V-100V
Current test range
0-10A, 0-50A, 0-100A (3 range optional)
Power supply range
Note: DC4-30.0V (beyond 30V need an external independent power supply)
Voltage error
± 0.1%
Current error
± 1%
External splitter specifications
75 milliohms
Working current
<20mA
Refresh speed
About 300mS once

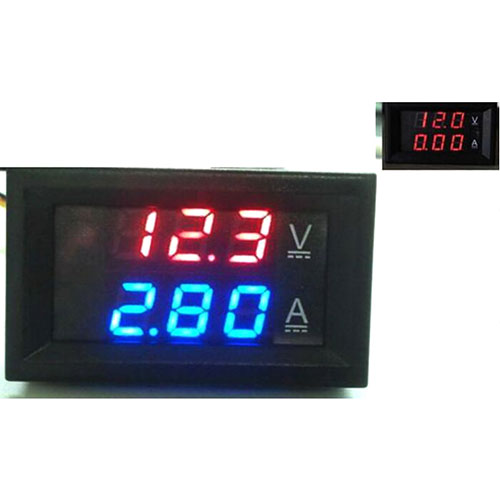

Display method
Double three 0.28 "LED digital tube
Show color
Red + red, red + blue. Optional

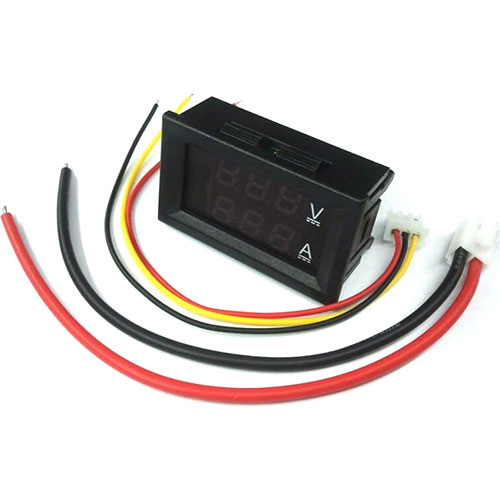

Lead length
15cm
Dimensions
48 x 29 x 22 mm, length X width x thick;
Mounting holes
46 x 27 mm
