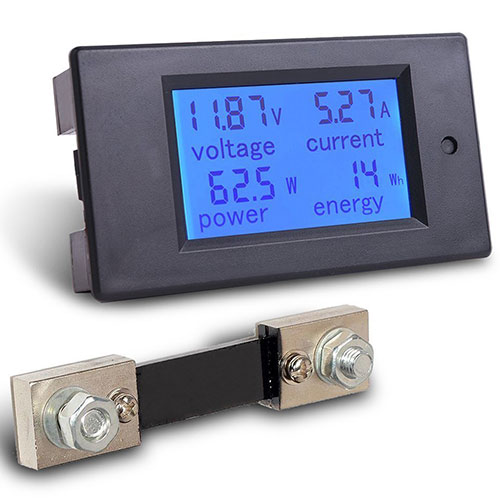

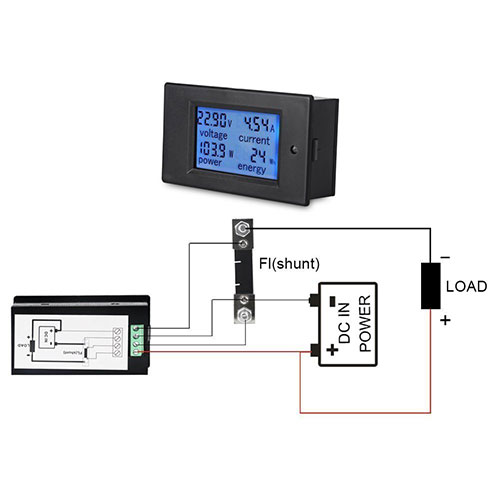

Product description Specifications: Working Voltage: 6.5-100V/DC; Power Rating: 100A/10000W; Measuring Accuracy: 1.0 grade Power Consumption: 0.2W Measuring Speed: 2 times/s Net Weight: 190g/0.42lb/6.70oz Materials: LCD display + PC shell Meter Dimensions: 9.0x5.0x2.4cm/3.5x2.0x0.9 in Shunt Dimensions: 10.5x3.0x2.2cm/4.1x1.2x0.9 in Test Range and Display format: 1.Power: test range: 0~10kW < 1kW, display: 0.0~999.9W 1kW~10kW, display: 1000~9999W > 10kW, display: 0.1~22.0kW 2.Energy: test range: 0~9999kWh <10KWh, display: 0~9999Wh >10kWh, display: 10~9999kWh 3.Voltage: test range: 80~260V(single-phase) Display: 6.5~100V 4.Current: test range: 0~100A Display: 0.00~99.99A Precautions: 1. This module is only suitable for 6.5~100V DC power. 2. Applied load should not exceed the rated power. 3. Wiring sequence can not be wrong. 4. This module is suitable for indoor, please do not use outdoor. Packing including: 1x DC Power Multimeter 1 x 50A Current Shunt Item Weight 4.6 ounces Package Dimensions 4.9 x 4.5 x 1.4 inches
