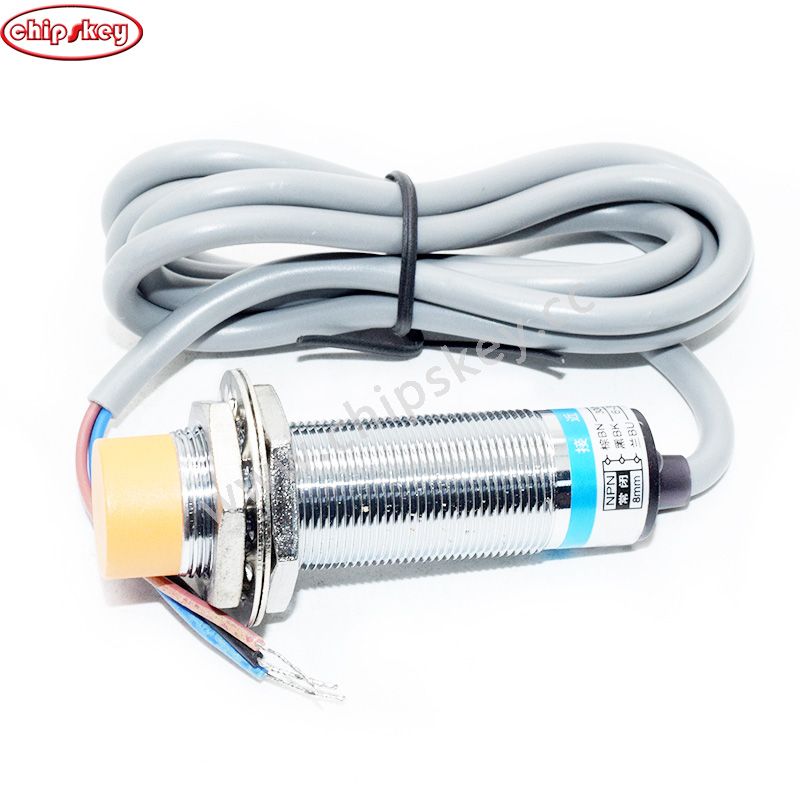

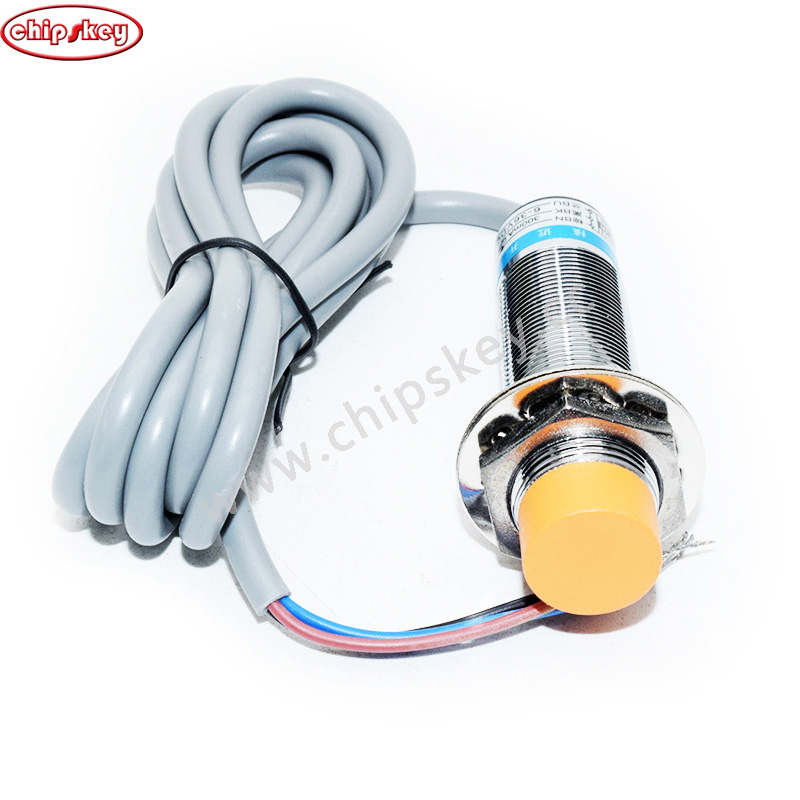

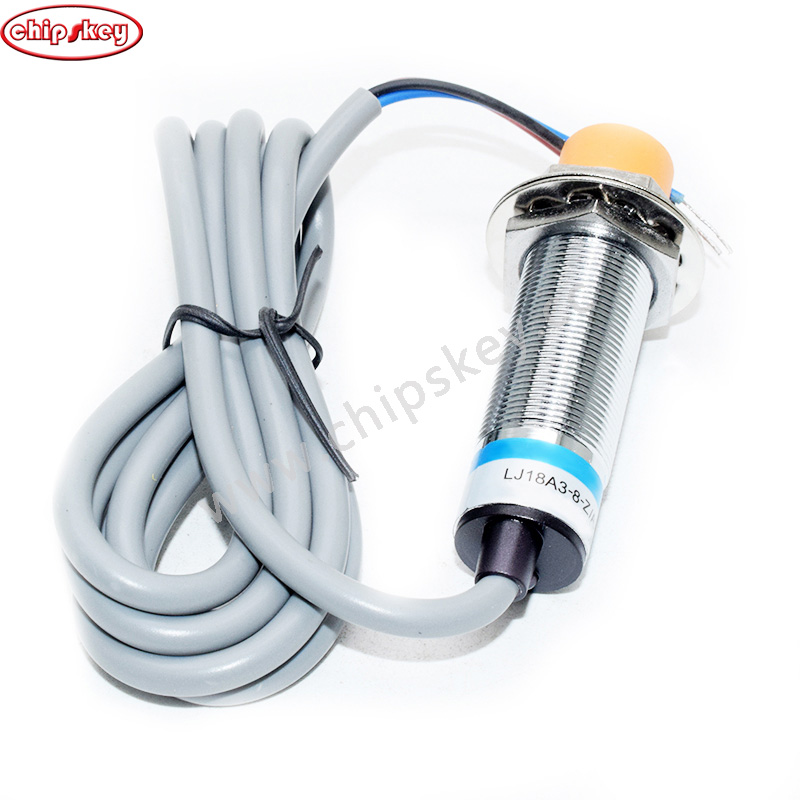

DC 6-36V 300mA NPN NC 8mm Tubular Inductive Proximity Sensor Approach Switch LJ18A3-8-Z/AX

Product Features ? Theory: Inductive sensors Wire type: 3-wire type (black, brown, blue). Switch Appearance Type: cylinder type Output Type: NPN NC (normally closed). Supply voltage: DC 6-36V. Current output: 300mA Head diameter: 18mm. Detection distance: 8 mm. Response frequency: 100Hz Test object: iron. Operating temperature: -25 ° C to + 55 ° C (non-freezing conditions) product description Package Contents: 1 x inductive proximity switch. Size: 7 × 3 cm / 2.8 "× 1.2" (L * maximum diameter). Cable Length: 110cm / 43.3 "External Material: Plastic, Alloy, Net Weight: 82g Color: Silver, Yellow, Gray is a component of the automatic control industry widely used in the detection, control and non-contact switch. Switch close to the target object, the control signal , Widely used in machinery, papermaking, light industry, limit, orientation counting, speed test and so on.
