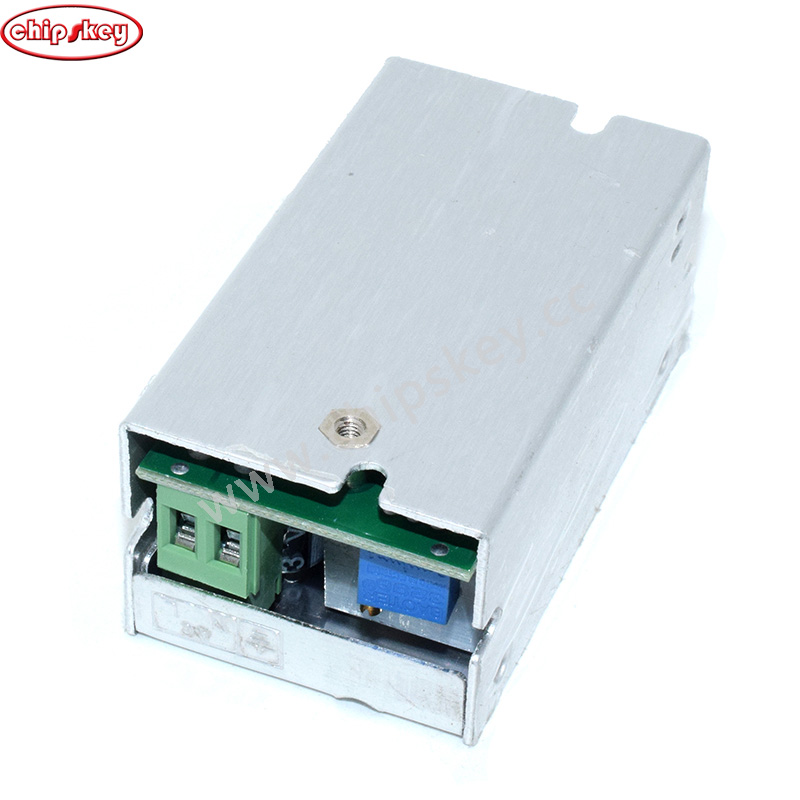

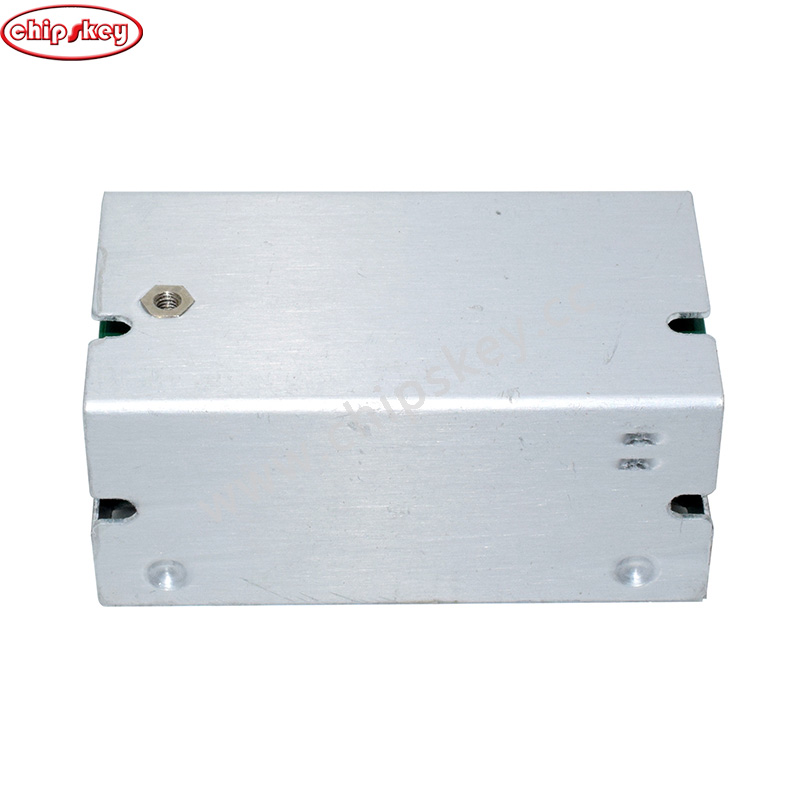

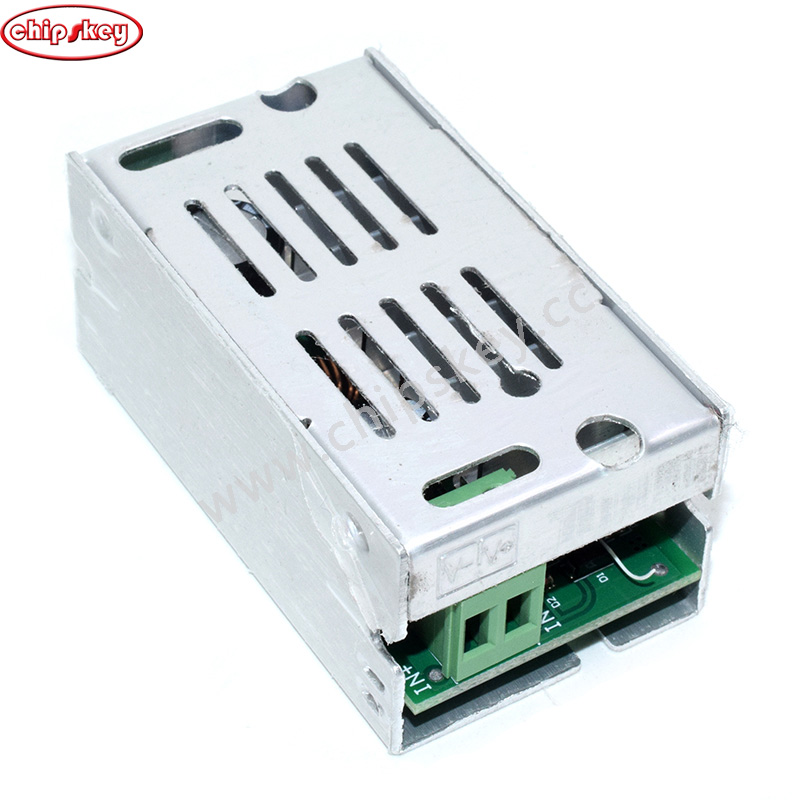

DC 6-35V Boost DC 6-55V 200W Power Module With Aluminum Shell

product description
characteristic:
Module Properties: Non-isolated boost (Boost)
Rectification: Non-synchronous rectification
Input voltage: 6V-35V
Output voltage: 6V-55V (must ensure that the set output voltage is higher than the input voltage)
Input current: 10A (max)
Output current: 7A (max)
Power: 200W MAX (input voltage is higher than 30V)
Conversion efficiency: 97.6% (test 32V input, output 45V / 3A)
Size: 70mm * 39mm * 32mm / 2.75 * 1.53 * 1.25 "
Application:
DIY mobile power
Boost charger
Electronic equipment power

product information
Product size 2.8 × 1.5 × 1.2 inches
Product weight 2.24 ounces
