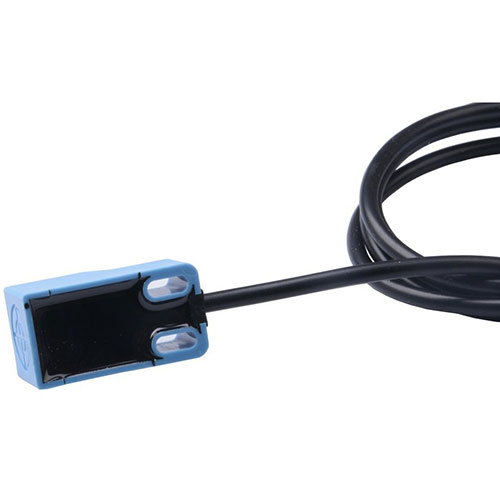

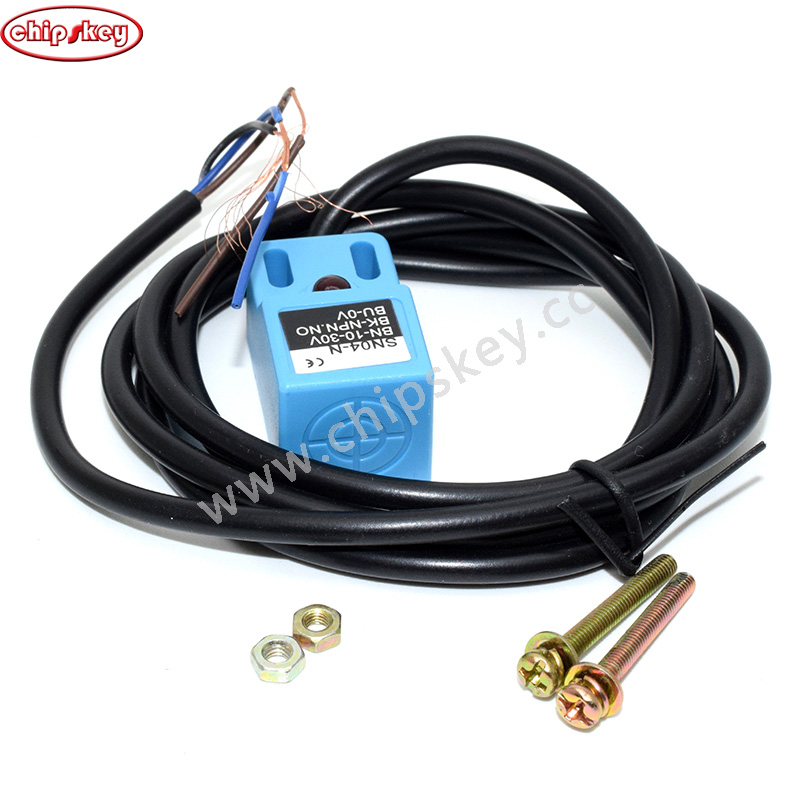

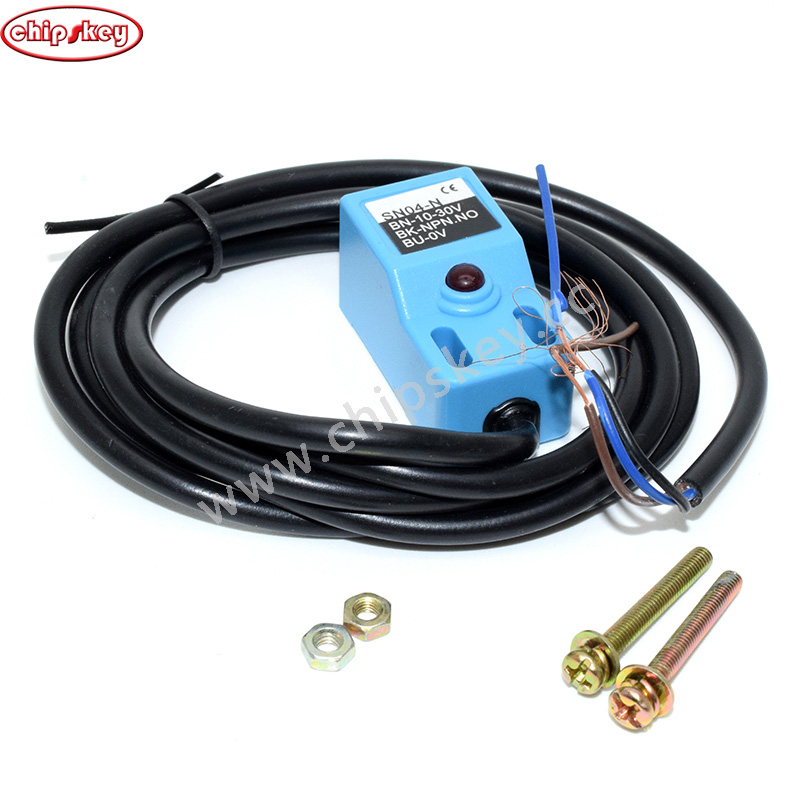

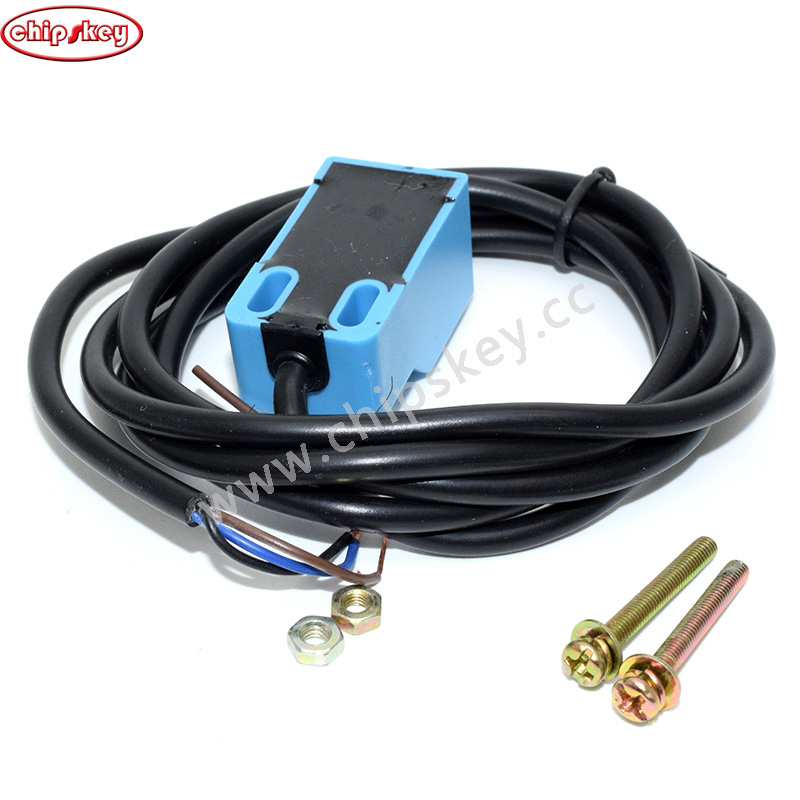

DC 10-30V NPN NO 3-wire Inductive Proximity Sensor Switch 4mm Detection Distance SN04-N NPN

Product features Theory: Inductive Type Sensor;

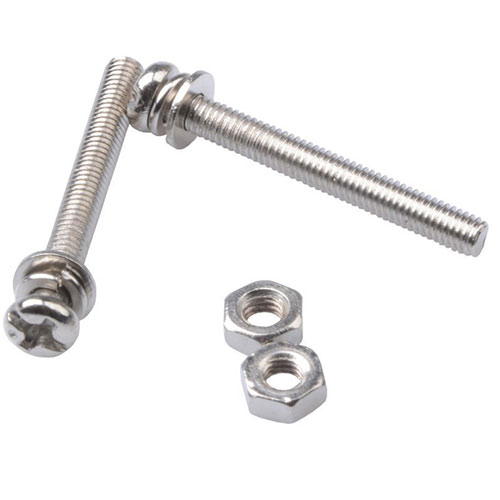

Wire Type: DC 3 Wire Type (Brown, Black, Blue). Sensing Distance: 4mm; Working Voltage : 10-30V DC. Size: 18 x 18 x 36mm/0.7" x 0.7" x 1.4"(W*H*L). External Material : ABS Plastic. Package Content: 1 x Proximity Sensor Switch, 4 x Screws. External dimensions: 18x18x36. Detection distance: 4mm. Sensing object: Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) Supply voltage: 10-30Vdc. Output current: 300mA Product details Shipping Weight: 1.6 ounces

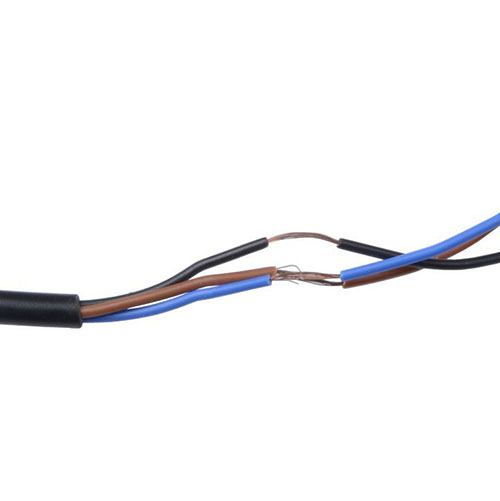

Wire Type : DC 3 Wire Type (Brown, Black, Blue);

Theory : Inductance Sensor

Output Type : NPN, NO;

Output : Switching Transducer;Sensing Distance : 4mm(+/-10%) ;Working Voltage : 10-30V DC
Response Frequency : 500Hz max;

Indicator : Red LED;Size : 36 x 18 x 18mm / 1.4" x 0.7" x 0.7" (L*W*H)
Cable Length (Approx.) : 1.3M / 51.2";

Hole Size : 0.9 x 0.4cm / 0.35" x 0.2"
Characterized by DC 3 wire type, NPN, NO output type, 0-30V DC working voltage, when proximity switch is close to some target object, it will send out control signal.
Used widely in the machine tool industry, frequency counters and other automatic control system, etc.
This is a SN04-N Proximity Sensor Switch made of the ABS resin material, NPN NO output type.
