Description:
product information:

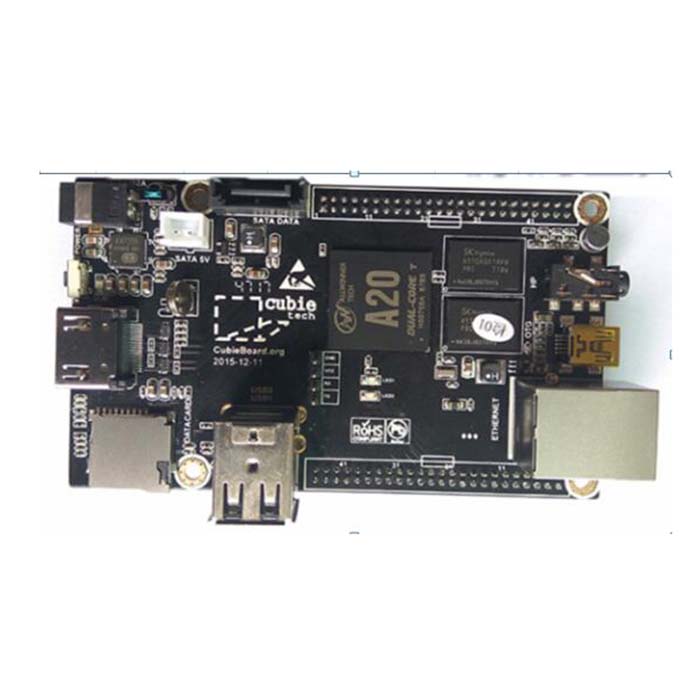

The cubieboard2 is a mini-computer developer platform based on the Allwinner A20 with a raspberry PI and a very wide selection of IOs.
The boards are SOCs that are separated for low level access by providing SATA and an extended pin interface.
The new one comes with a protective case.
Features
Allwinner A20 SoC
96-well expansion interface
Built-in infrared receiver
Support SATA
Support for 2.4 GHz wireless keyboard and mouse
specification
CPU 1 g ARM Cortex-A7 processor neon vfpv3256 KB fault cache
GPU mali400 OpenGL ES GPU
Memory 1 GB DDR 3 @ 480MHz
Video output HDMI 1080P output
Network 10/100 M Ethernet
Built-in storage 8GB NAND Flash
IO interface 2 USB host 1 Micro SD card slot 1 SATA 1 infrared
Expansion interface 96 extension pins include I2 °C, SPI, RGB / LVDS, trim / TS, fm-in, ADC, CVBS, VGA, spdif-out r-tp
Support system running Android Ubuntu and other Linux distributions
Power supply 5VDC / 2 A power supply 4.00 MM ( Ext. diameter ) x 1.7 mm ( int. pen diameter plug
Size 10 CM X 6 cm
