/ CSN-A2 Embedded Miniature Thermal Printer TTL/RS232 Interface

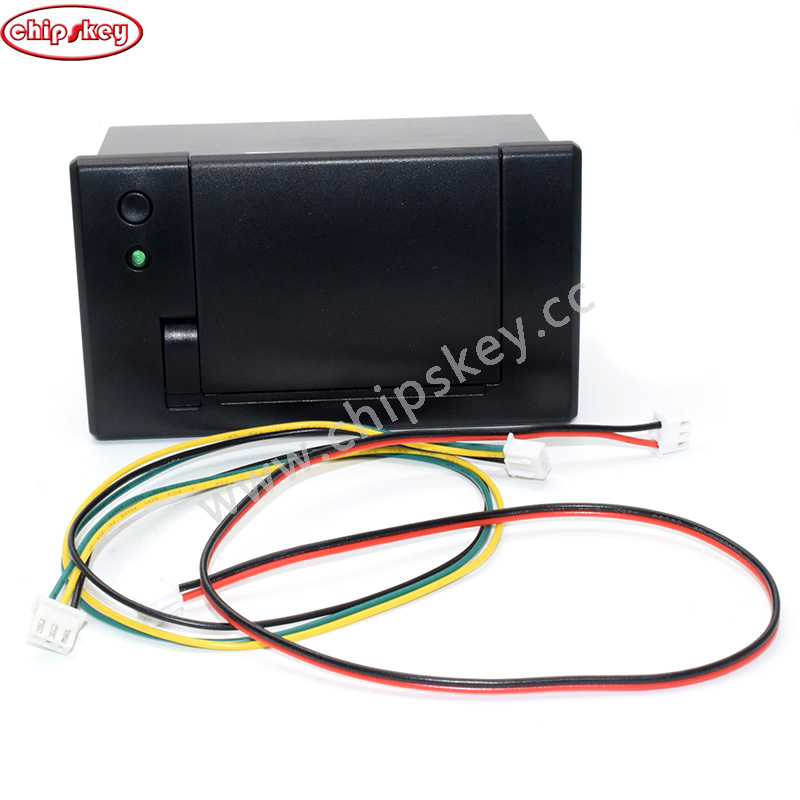

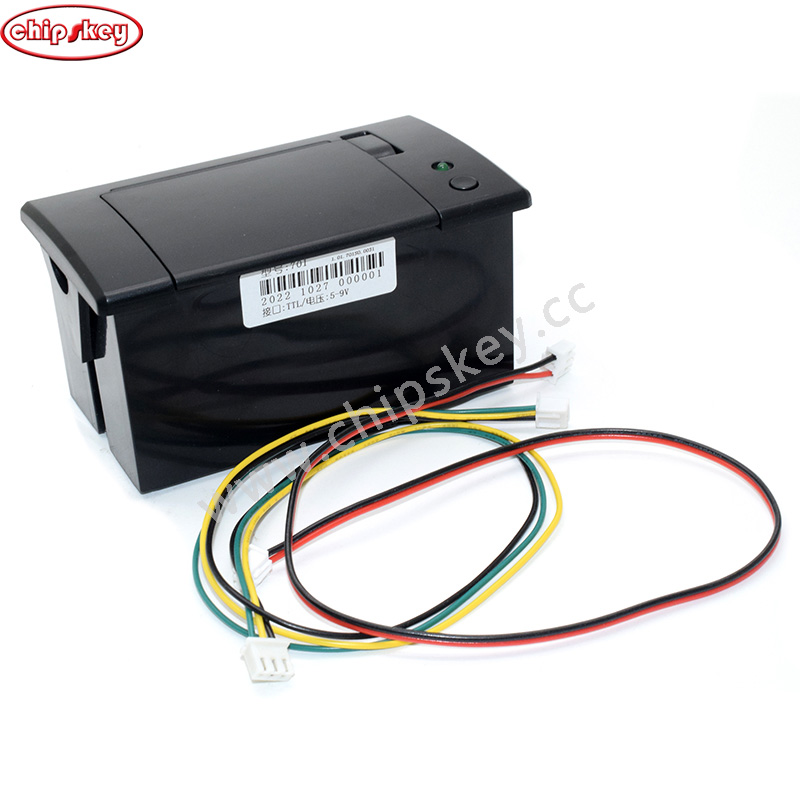

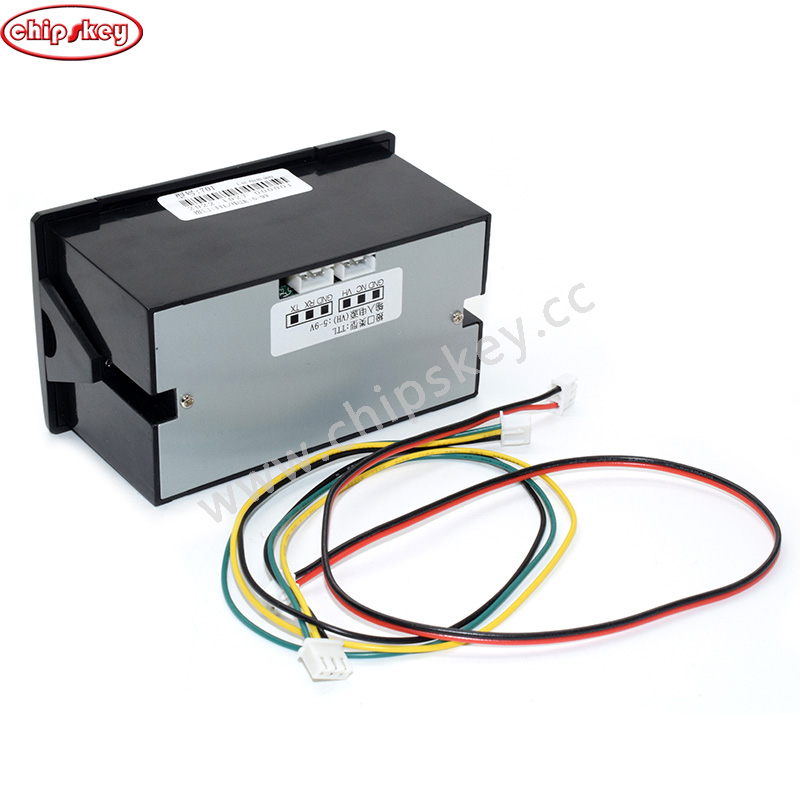

CSN-A2 Embedded Miniature Thermal Printer TTL/RS232 Interface
SKU:
18i065
Shipping Weight:
221.38g
1201:viewed
US$34.50
Voltage
5-9V
12V
Classify
RS232
TTL
-
+
(10000 Pieces available)
Send Email
Chat Online
Call on Whatsapp
Telegram
Add to Wishlist
Hot Products
CSN-A2 Embedded Miniature Thermal Printer TTL/RS232 Interface
US$34.50
J-Head Hotend 3D printer extruder with one cooling fan for 1.75mm 12V 3d v6 Bowden Filament Wade 0.2mm/0.3mm/0.4mm nozzle.
US$5.60
US900SW-2 single antenna connected to two printers [all-in-one shared printing and scanning]
US$52.70
SKR MINI E3 V2.0 GD32F103RET6
US$34.80
Description
Customer Reviews
Payment & Shipping
Printing Method
Thermal Line
Printing Speed
50-80mm/s
Resolution
8 dots/mm, 384 dots/line
Effective Printing Width
48mm
Character
Character Set
ASCII,GB2312-80(Chinese)
Print Font
ANK:(8x16,9x17,9x24,12×24), Chinese: 24×24
Paper Spec.
Paper Type
Thermal paper
Paper Width
57.5± 0.5mm
Paper Roll Diameter
Max: 39mm
Reliability
MCBF
5 million lines
Interface
RS-232/TTL/Parallel/USB
Insert Depth
50mm
Power Supply (Adapter)
DC5V-9V/12V
Physical
Outline Dimension (WxDxH)
111x65x57mm
Installation Port Size
103 x 57mm
Color
Beige/Black
Environment
Operating Temp
5°C ~ 50°C
Operating Humidity
10% ~ 80%
Storage Temp
-20°C ~ 60°C
Storage Humidity
10
