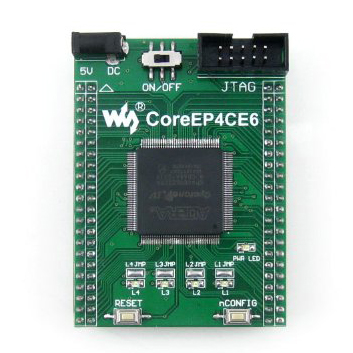

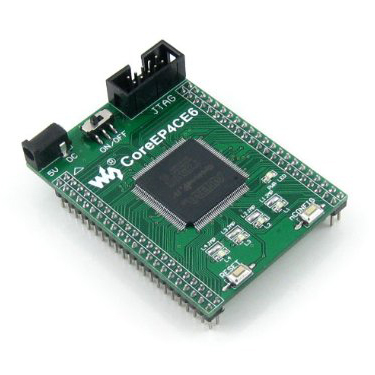

CoreEP4CE6 EP4CE6 EP4CE6E22C8N FPGA ALTERA Cyclone IV Development Board Full I/O Expander JTAG Interface

Product description EP4CE6E22C8N: the ALTERA Cyclone IV FPGA device which features: Operating Frequency: 50MHz Operating Voltage: 1.15V??3.465V I/Os: 80 LEs: 6K RAM: 270kb PLLs: 2 Debugging/Programming: supports JTAG AMS1117-3.3, 3.3V voltage regulator AMS1117-2.5, 2.5V voltage regulator AMS1117-1.2, 1.2V voltage regulator EPCS16, onboard serial FLASH memory, for storing code Power indicator LEDs Reset button nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting Power switch 50M active crystal oscillator 5V DC jack JTAG interface: for debugging/programming FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion LED jumpers CoreEP4CE6 core board x 1 USB power cable x 1 User guide CD x 1 Product information Product Dimensions 7.1 x 3.9 x 3.5 inches Item Weight 1.44 ounces
