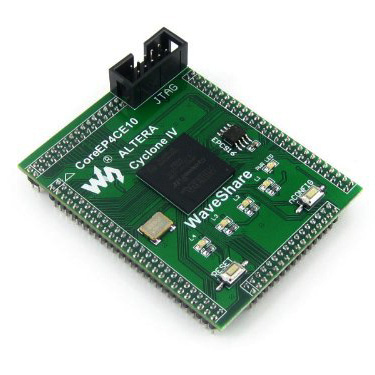

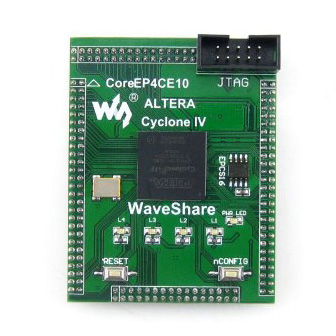

CoreEP4CE10 EP4CE10 EP4CE10F17C8N ALTERA FPGA Cyclone IV Development Board Full I/O Expander JTAG Interface

product description EP4CE10F17C8N: ALTERA Cyclone IV FPGA device with the following features: Working frequency: 50MHz Working voltage: 1.15V ~ 3.465V I / O: 164 LE: 10K Memory: 414kb PLLs: 2 Debug / Programming: Supports JTAG AMS1117-3.3 (bottom), 3.3V voltage regulator AMS1117-2.5 (bottom), 2.5V voltage regulator AMS1117-1.2 (bottom), 1.2V voltage regulator EPCS16, on-board serial FLASH memory for storing code Power Indicator led reset button nCONFIG button: Used to reconfigure the FPGA chip, equivalent to resetting the power supply 50M active crystal JTAG interface: for debugging / programming FPGA pin extenders, VCC, GND, and all I / O ports are accessed through the expansion connector for further expansion product information Product size 7.1 x 3.9 x 3.5 inches Product weight 1.44 ounces
