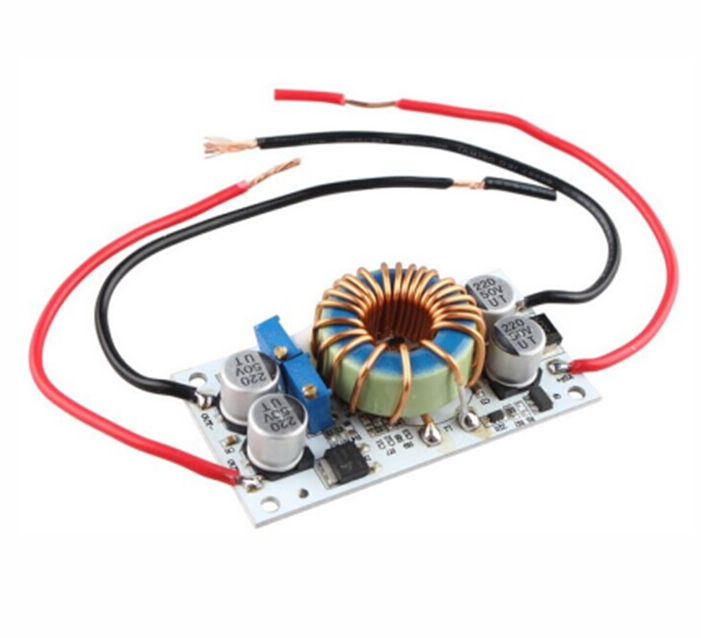

Specification: - Module Properties: non-isolated step-up module (BOOST) - Input voltage :8.5-48V - Output voltage: 12-50V (adjustable) - Output Current: 10A (MAX) (Please enhance heat dissipation if more than 6A) - Output constant Current: 0.2 - 8A (please dont short the output to adjust the current) - Easy to drive 65W 90W dual-core notebook. - Conversion efficiency: 96% - working frequency: 150KHZ - Output Ripple: 2% (MAX) 20M-bandwidth - Operating Temperature: Industrial (-40C to +85C) (ambient temperature exceeds 40C, lower power use, or to enhance heat dissipation) - Dynamic response speed: 5% 200uS - over circuit protection: yes - Input Reverse Polarity Protection: yes - Size: 70*46*13mm Item Weight 1.44 ounces Product Dimensions 2.8 x 0.5 x 1.8 inches
