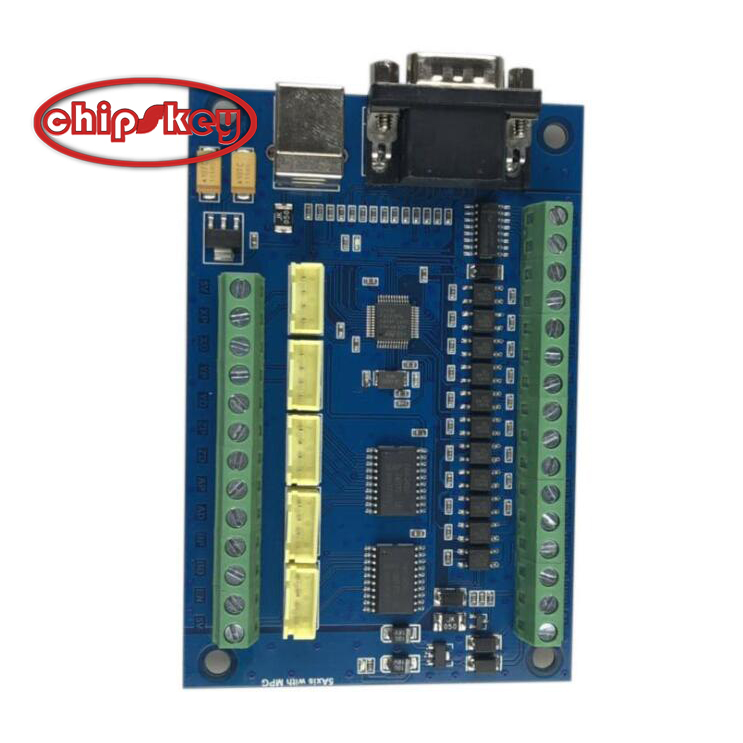

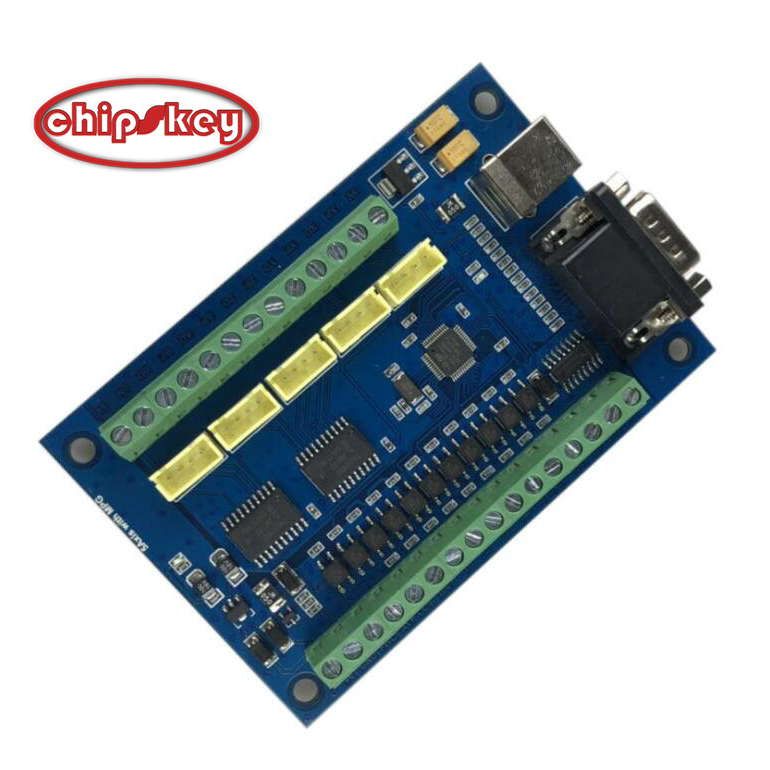

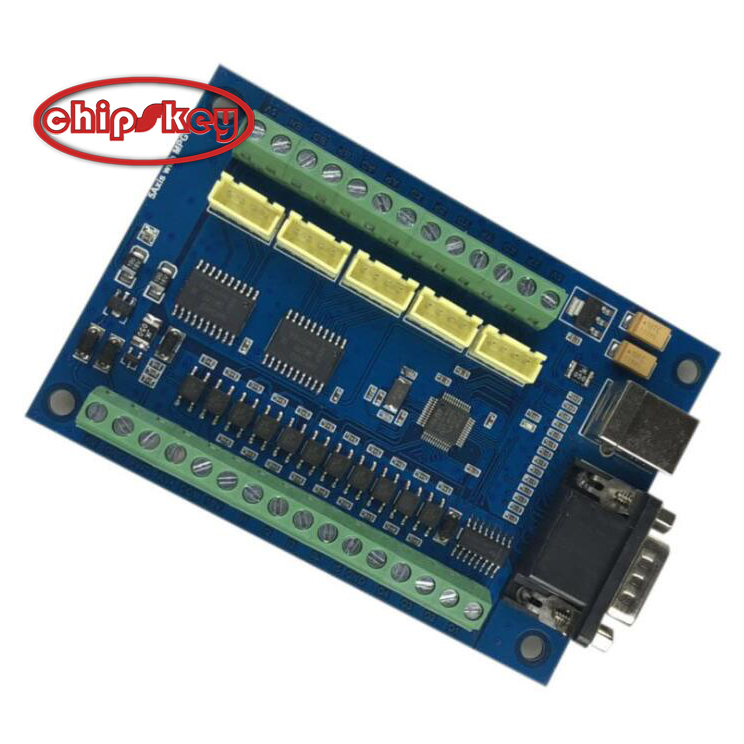

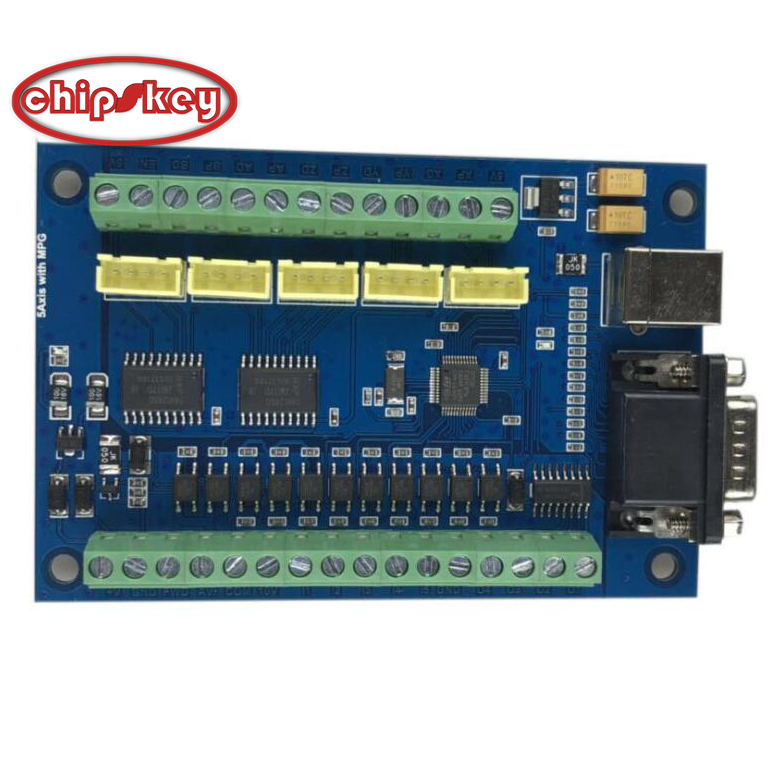

CNC Driver Control Module 5axis MACH3 Interface Board USB Engraving Machine 5 Axis with MPG Stepper Motor Motion Controller
1. Support various versions of MACH3 software and the latest version.
2. Support windows XP, WIN7, WIN8, WIN10, support 64-bit system, support laptop, support tablet.
3. Wide peripheral voltage input, 12-24V, and anti-reverse connection function.
4. All input signals are isolated by optical coupling, and can be connected to emergency stop, tool setting, limit, zero return, etc. to ensure the safety of the computer. The input can be connected to a mechanical switch or a proximity switch (using NPN normally open).
5. A 0-10V analog voltage output isolated by the optocoupler can control the frequency converter input by the 0-10V analog voltage and control the spindle speed.
6. Provide PWM output (5V level), which can be connected to the spindle governor controlled by PWM.
7. Provide 4 output ports (5V level), which can be connected to the relay module with optocoupler to control water cooling and spray.
8. The maximum output of each axis is 100KHZ, which can be connected to a common anode or a common cathode, the input level is 5V, and a stepper or servo motor driver with a photocoupler input (pulse + direction).
9. At the same time provide 5-axis interface cable socket (XH2.54), easy to connect.
10. Provide electronic handwheel interface.
11. All the port names are printed on the board, which is clear at a glance.
