CD74HC4067 CMOS 16-channel Analog/Digital Multiplexer

product description

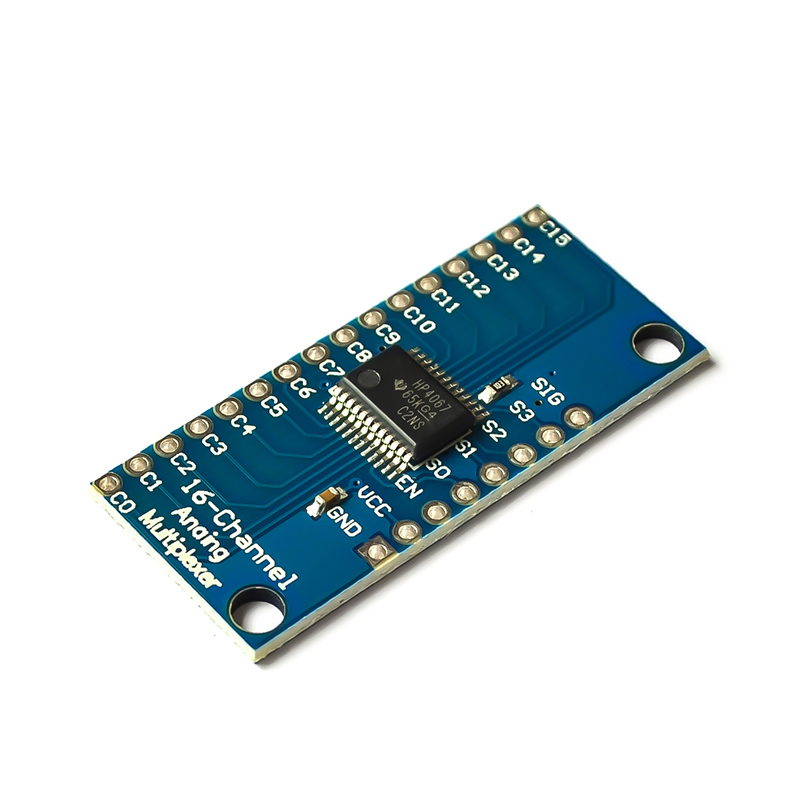

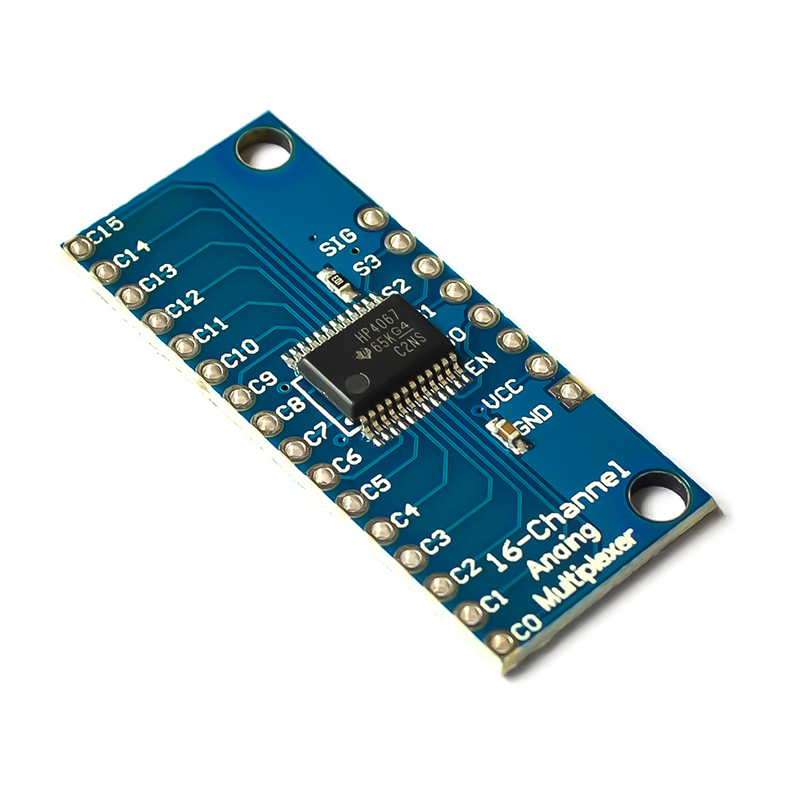

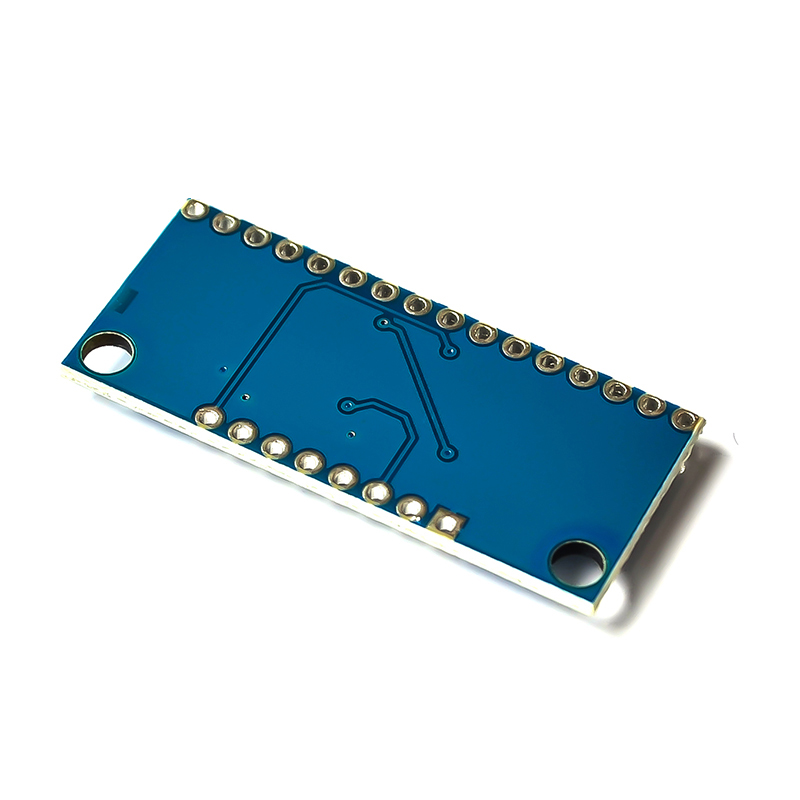

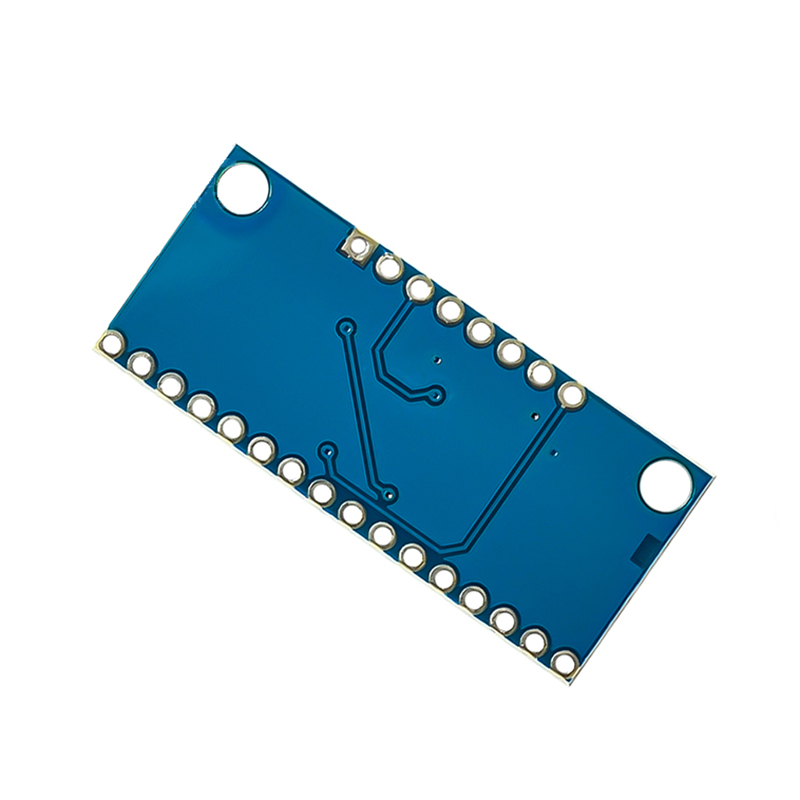

CD74HC4067 CMOS 16-Channel Analog Digital MUX Breakout Board
For example, you can use it to connect the TX pins of 16 devices to an RX pin on the microcontroller.
You can then choose any of these 16 devices to listen to.
If bi-directional communication is required, a second board can be added to connect the microcontrollers TX line to the RX line of 16 devices. By using multiple boards, you can create similar configurations for I2C, SPI, and so on.
The internal switch is bi-directional, supporting the voltage between ground and VCC, with low on-resistance and low-turn-off leakage, and to prevent crosstalk, perform a "break-before-make" switch.
The board also emits the chips "enable" pin, which will completely disconnect the common pin (all switches "off") when the pin is high.
2V to 6V operation
On resistance: 70 ohms @ 4.5V
6ns break off before the combined @ 4.5V
Wide operating temperature range: -55 degrees Celsius to 125 degrees Celsius
Size: 2.0 * 1.2CM / 0.79 * 0.47 inches
Material: CCL
