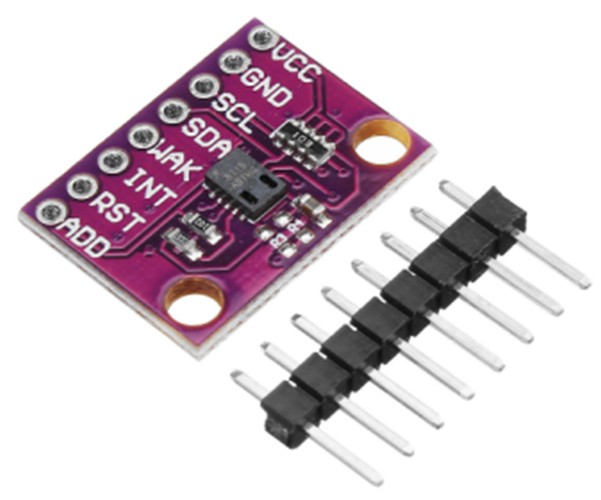

CCS811 module monitors indoor air quality digital gas sensor module

Description:



Module size: 15mm x 21mm

Power supply: 3.3V

8118 a gas sensor chip system chip (SSoC) + temperature and humidity sensor, using low-power sensing technology to detect indoor volatile organic compounds (VOCs).

CCS811 8118 board schematic structure of the figure we can see that this is not a simple sensor, it has integrated MCU, the sensor has an onboard processing capability, without host intervention, can provide the equivalent level of carbon dioxide or total volatile organic compounds (TVOC) index. At the same time, with the use of separate gas sensors and MCU solutions, CCS811 can save equipment inventory costs as well as up to 60% of the total area of the board.

HDC1080 low power consumption, high precision digital humidity sensor with temperature sensor

DC1080 is a digital temperature sensor with integrated temperature sensor, which can provide excellent measurement accuracy with ultra-low power consumption. HDC1080 supports a wide range of operating power supply voltage, and compared to competitive solutions, the device can provide a wide range of common applications with low cost and low power consumption advantages. Humidity and temperature sensors are factory calibrated.

The relative humidity is 2% (typical)

Temperature accuracy of + 0.2 C (typical)

Excellent stability under high humidity

14 bit resolution

Sleep mode current is 100nA.
