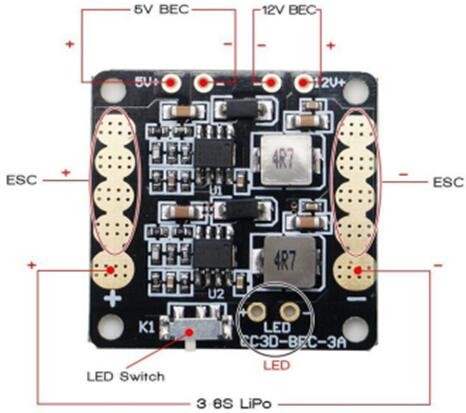

CC3D Naze32 Flight Controller 5V 12V PDB Miniature Power Distribution Board for 250 Multicopter 2oz copper 4 layer PCB, to ensure high current; ????? Synchronous buck 5V BEC, continued 3A, 12V BEC continuous 2A (maximum 3A) output; ????? Battery power conversion pad arranged in pairs, easy wiring; ????? Pictorial camera voltage selection, set the signal line; ????? With Naze32, CC3D flight control size, weighs only 6g. ????? Note the input polarity, do not enter the reverse, referred to as! ????? To obtain a stable BEC 12V output, the input voltage must be greater than 12V (less than 12V can not boost). ????? When using a 3S battery, the BEC 12V regulator can not work properly and inductive noise may occur. ????? Do not touch the electric point behind the carbon fiber board, easy to short circuit. Please isolate and install the nylon column.
