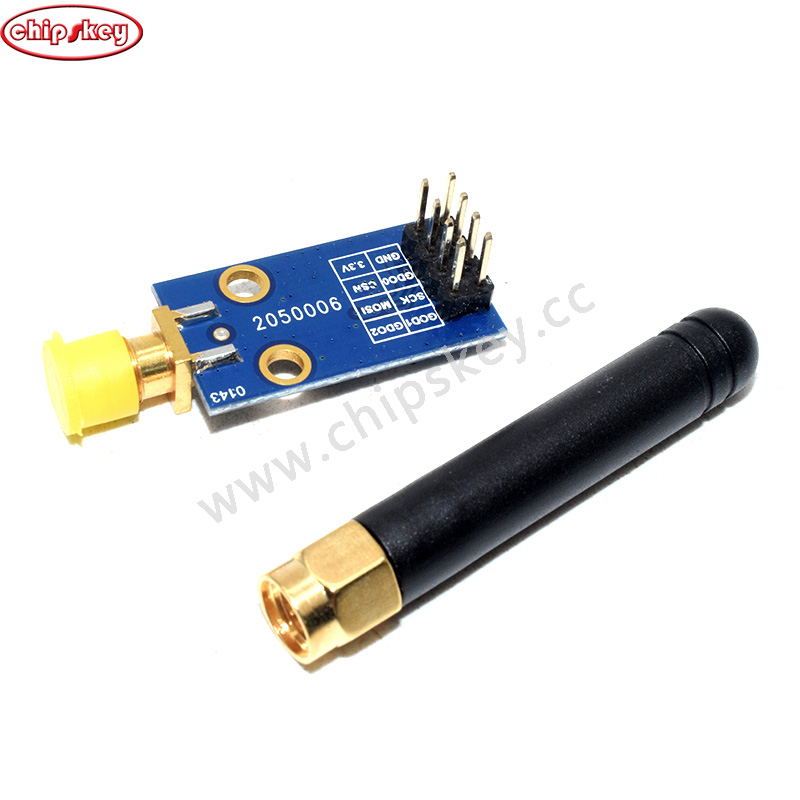

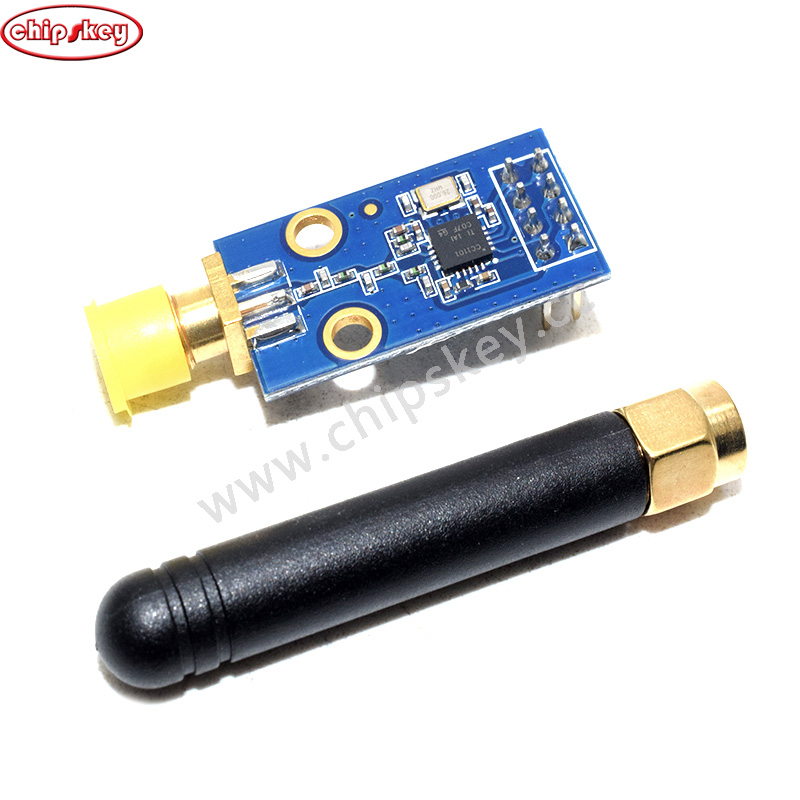

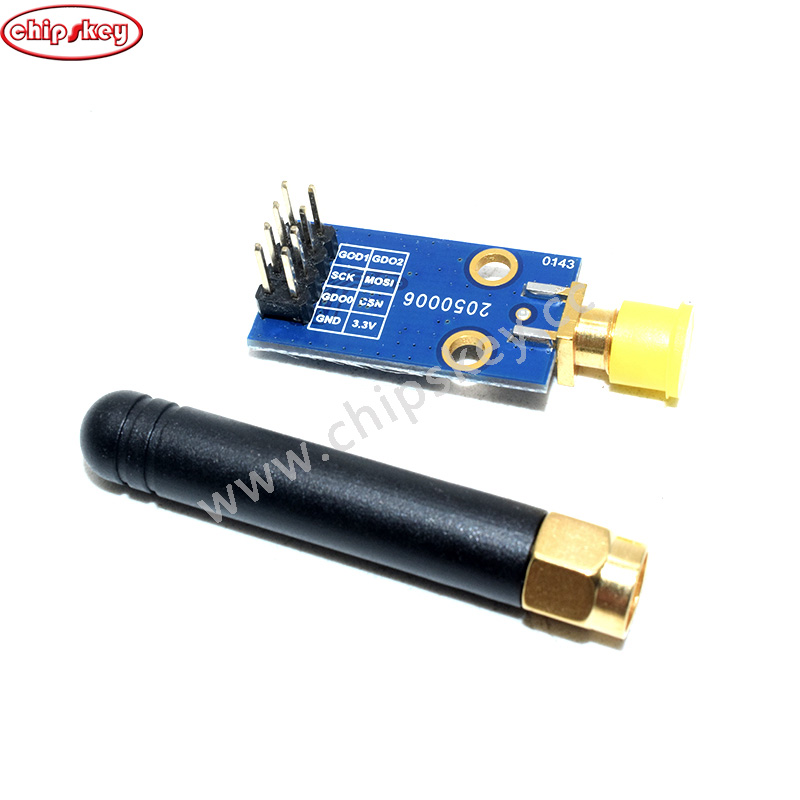

CC1101 wireless module (CC1100 upgraded version of the high-precision external parameters)

DC 3.0-3.6V operating voltage amplifier VDS 3 - 9V Operating frequency 433MHz programmable preparation +-5MHz Frequency Error +-10KHz Modulation FSK / GFSK / ASK / OOK / MSK programmable preparation 22-30dBm output power Receiver Sensitivity-112dBm 2.4 Kbps Saturation-15dBm Receiving current <20mA 2.4 Kbps Emission current 90-250mA output power with the Standby current 2uA Programmable transfer rate 1.2-500Kbps preparation SPI Interface Data Interface Distance from the 1200m 2.4Kbps visual communication Antenna Impedance 50ohm Storage Temperature -50 - 150 ° C Operating temperature -40 - 85 ° C Dimension 26.0 * 17.0 * 2.4 mm
