Battery support: Ni-MH, Ni-Cd 4-6 group (4.8V ~ 7.2V); lithium battery three groups (7.4V-11.1V) Current parameters: forward 320A, reverse 160A, brakes 270A, BEC Output: Voltage 5.6V, current 2A. (Supply receivers, servos electricity) Size: 43mm (length) X 29mm (W) X 27mm (height). (Including heat sink section) Weight: 40g
Special attention: When using 3S (12V), this electric regulator can only carry motors not exceeding 380. When using 2S (8.4V), it can only carry motors not exceeding 540

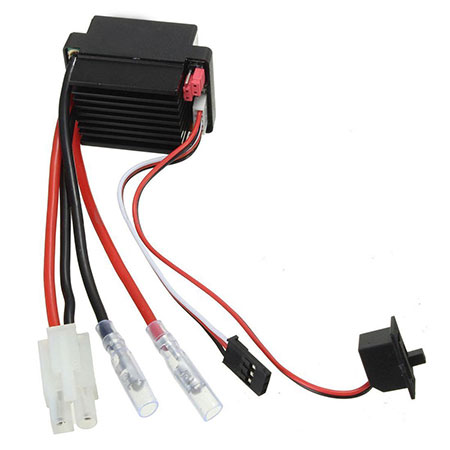

320A bidirectional electronic speed controller with brake (with waterproof function)
Battery support: 4-6 sets of nickel hydrogen and nickel cadmium (4.8V~7.2V); Three sets of lithium batteries (7.4V-11.1V)
Current parameters: 320A forward, 160A backward, 270A brake,
BEC output: voltage 5.6V, current 2A. (Supply power for receivers and servos)
Dimensions: 43mm (length) X 29mm (width) X 27mm (height). (including the heat sink section)
Weight: 40g
Features:
1. Automatically find the center position.
2. High frequency drive system
3. Use low internal resistance field-effect transistors
4. Suitable for use with car and boat models
Operation Guide:

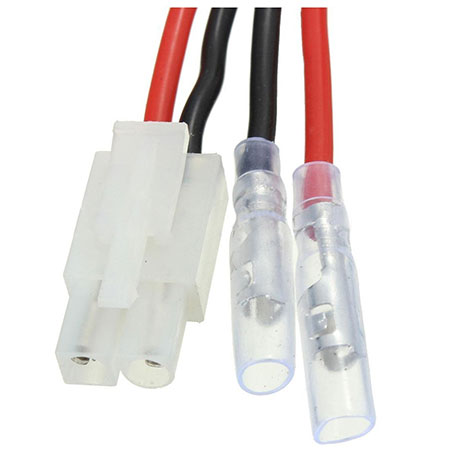

1. Connect the power supply battery correctly, with the red wire at both ends of the terminal block indicating the positive pole and the black wire indicating the negative pole. (Or connect the standard DC battery plug, Datian male plug/T-plug/banana plug)
2. Connect the red and black wires of the electric control output to the red and black wires of the car's 540 motor.

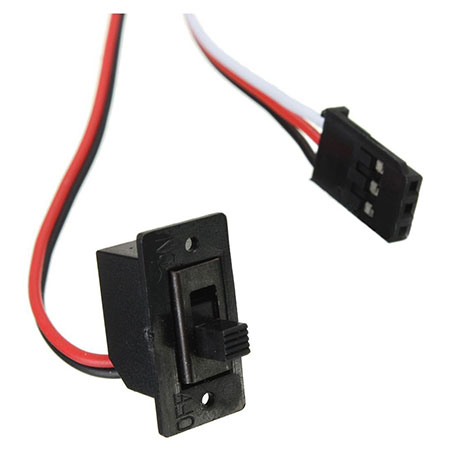

3. Turn on the power switch of the power regulator, and the motor will make a "beep" sound. Then turn on the power of the transmitter, and the motor will make a "duo~la~mi" sound, indicating that the remote control signal has been successfully connected to the power regulator.
