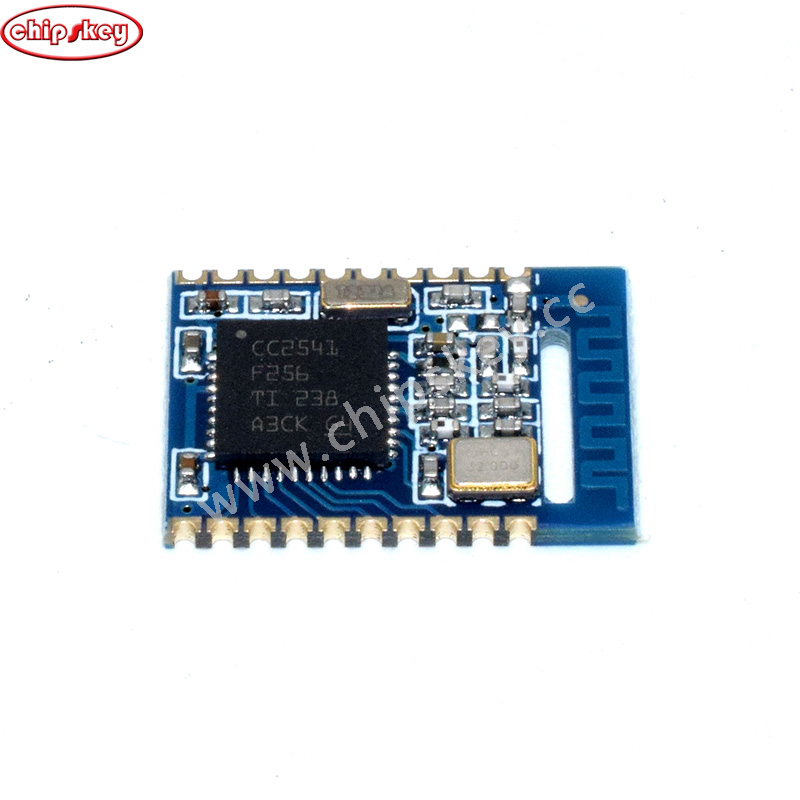

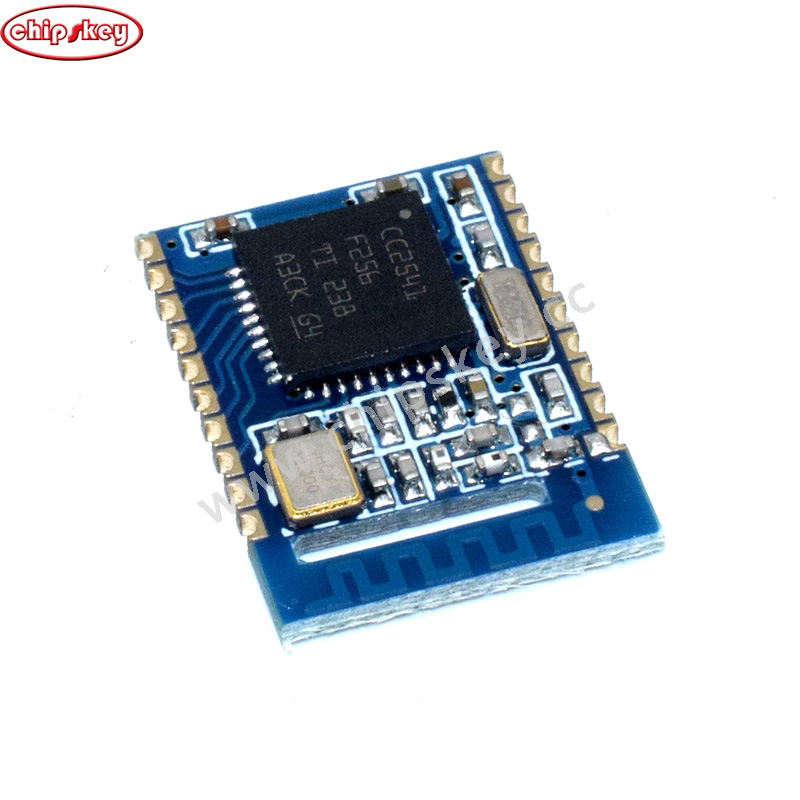

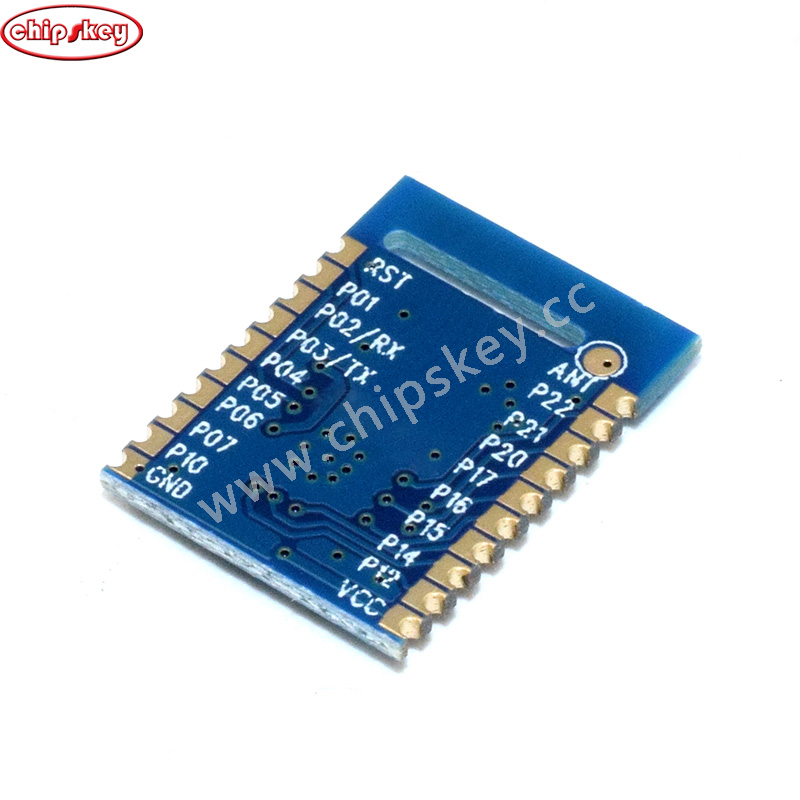

/ Bluetooth 4.0 BLE Low Energy/Power RF Master-Slave SOC Smart Hardware Serial Transceiver Module 2.4GHz Bridge/Direct-driven Mode - CC2540 iBeacon - 15.1*11.2*2.5mm
Bluetooth 4.0 BLE Low Energy/Power RF Master-Slave SOC Smart Hardware Serial Transceiver Module 2.4GHz Bridge/Direct-driven Mode - CC2540 iBeacon - 15.1*11.2*2.5mm
SKU:
13D011
Shipping Weight:
1.8g
701:viewed
US$3.60
-
+
(9980 Pieces available)
Send Email
Chat Online
Call on Whatsapp
Add to Wishlist
Hot Products
868mHz TTGO LORA32 868mHz ESP32 0.96 inch OLED blue screen Bluetooth WIFI with cable
US$14.89
Bluetooth Serial Transceiver Module Base Board Enable clear button For Arduino
US$0.34
Red Lenovo Lecoo Smart Glasses Headset Wireless Bluetooth 5.0 Sunglasses Outdoor Sport earphone Calling Music Anti-Blue Eyeglasses
US$14.90
BTBee
US$7.59
Description
Customer Reviews
Payment & Shipping
Parameter item
Parameter details
Frequency Band
2400~2483.5MHz,
Adjustable
Frequency Error
±50KHz
PCB
4-layer,
Impedance-matching, lead-free
Operation Range
80m,
Open area; +4dBm;
Height: 2m; Baud rate: 9600bps
Baud rate
6 level,
4800bps, 9600bps,
19200bps,38400bps,57600bps,115200bps
Shutdown current
0.5uA,MCU in sleep,wireless closed,VCC=3.3V
Transmitting current
24mA@-6dBm
Receiving current
19.6mA,3.3V
Communication interface
IO
Transmitting length
20 bytes,BLE
Receiving length
20 bytes,BLE
RSSI support
Available
Operating temperature
-20 ~ +60
℃,
Industrial-grade
Operating humidity
10% ~ 90%,Relative humidity, without condensation
Storage temperature
-55 ~ +85
℃,
Industrial-grade
Sensitivity
-93dBm@+4dBm
