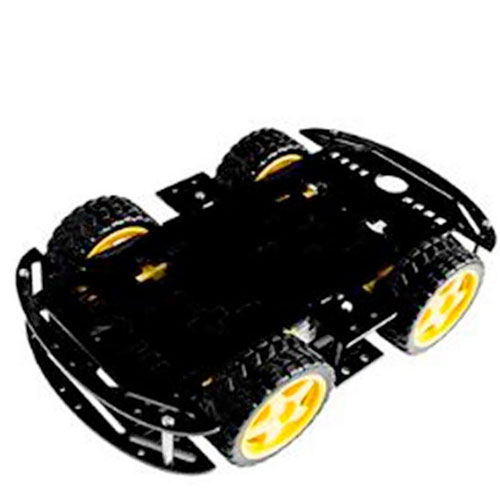

Black 4WD Dual Classis Robot Car

Colour: Black
Motor power (VM): 4.5V ~ 36V, independent power supply;
Control power supply (VIN): 4.5V ~ 9V (10VMAX), can be supplied separately;
The modules provide short-circuit (short-circuit VM and VIN) to easily drive and control the motor with one power supply (4.5V ~ 9V must be used)
Logic operating current Iss: ≤ 60mA (Vi = L), ≤ 22mA (Vi = H);
Working current drive part Io: ≤1.2A;
Maximum power consumption: 4W (T = 90 ℃)
Control signal input level: high level: 2.3V≤VIH≤VIN; low: -0.3V≤VIL≤1.5V
Operating temperature: -25 ℃ ~ +125 ℃
Drive: Dual high-power H-bridge drive
Support wireless 802.11b / g / n standard;
Support STA / AP / STA + AP three working modes;
Built-in TCP / IP protocol stack, support for multiple TCP Client connections (5 MAX);
D0 ~ D8, SD1 ~ SD3: for GPIO, PWM, IIC, etc., port drive capability 15mA;
AD0: 1 ADC;
Current: continuous transmission: ≈ ??70mA (200mA MAX), standby: <200uA;
Transmission rate: 110-460800bps;
Support UART / GPIO data communication interface;
Remote Firmware Upgrade (OTA);
Smart Link supports intelligent network functions.
