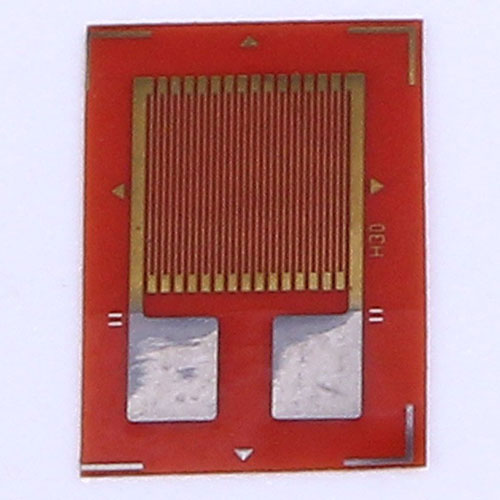

BF350 Precision Pressure Resistive Strain Gauge

BF350 precision pressure resistance strain gauge
Product Features
BF350-3 AA-type strain gauge strain gauge with Kang Tong foil grid, high precision, good stability
Resistance: 350Ω, Sensitivity Coefficient: 2.00-2.20, Sensitivity Coefficient Dispersion: ± 1%

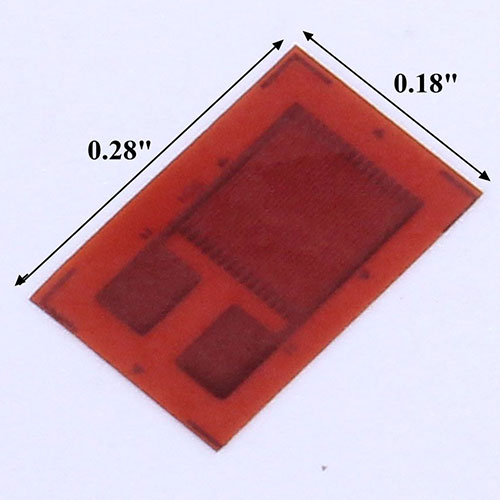

Strain limit: 2.0%, fatigue life: ≥1M, plate size: 7.1 X 4.5mm / 0.28 X 0.18 inch (L * W)
product description
"BF350-3 AA type Kang Copper foil resistance strain gauges with high accuracy, good stability, easy to use, etc., for 0.02-level sensor.
Resistance: 350Ω (typical)
Grid Material: Hong Tong
Sensitivity coefficient: 2.00-2.20
Sensitivity coefficient dispersion: ≤ ± 1%
Strain limit: 2.0%
Fatigue life: ≥1M
Motherboard Size: 7.1 X 4.5mm / 0.28 X 0.18 inch (L * W)
