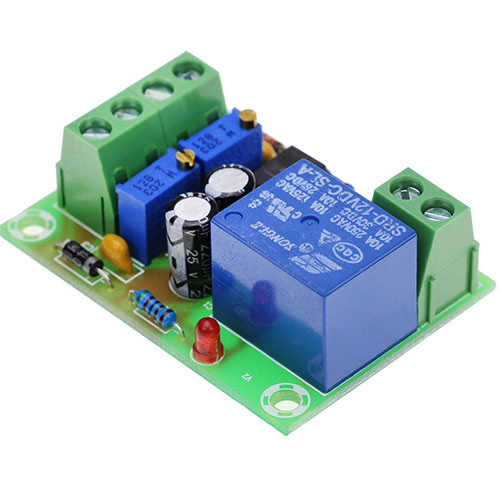

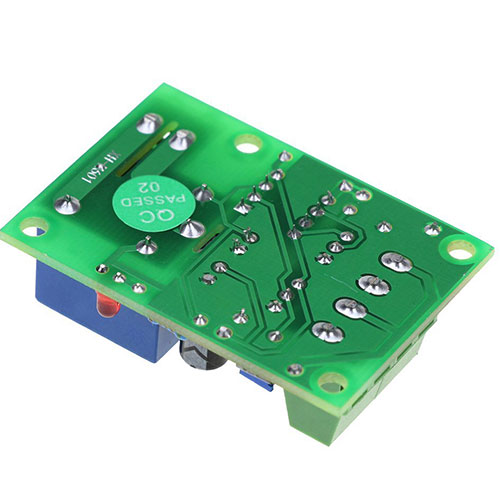

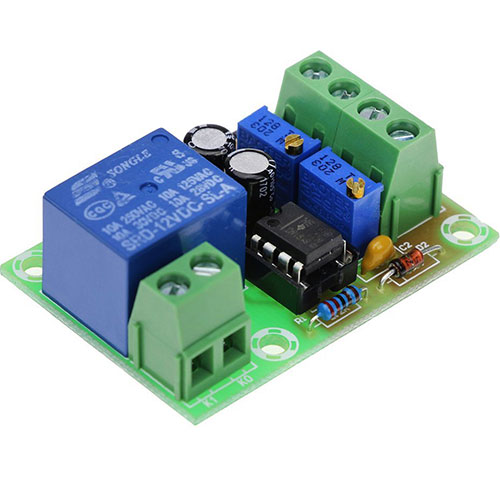

Battery charging control board XH-M601

Product Features
Voltage detection method: DC
Board Size: 50mm x 32mm x 18mm (L * W * H)
Voltmeter Battery charger type: 12V battery
Potentiometer adjustment: RP1 RP2
note? Just charger power control panel, not including battery and voltmeter.
product description
description:


Name: 12V charger power control panel

Power supply voltage: 13.8V ~ 14.8V

Relay closing voltage: 12.4V

Relay open circuit voltage: 14.8V

Voltage error: ± 0.1V

Package includes:

1 × 12V smart charger power control panel battery charging controller module
